LedSync820C User's Manual
II. Connections of hardware

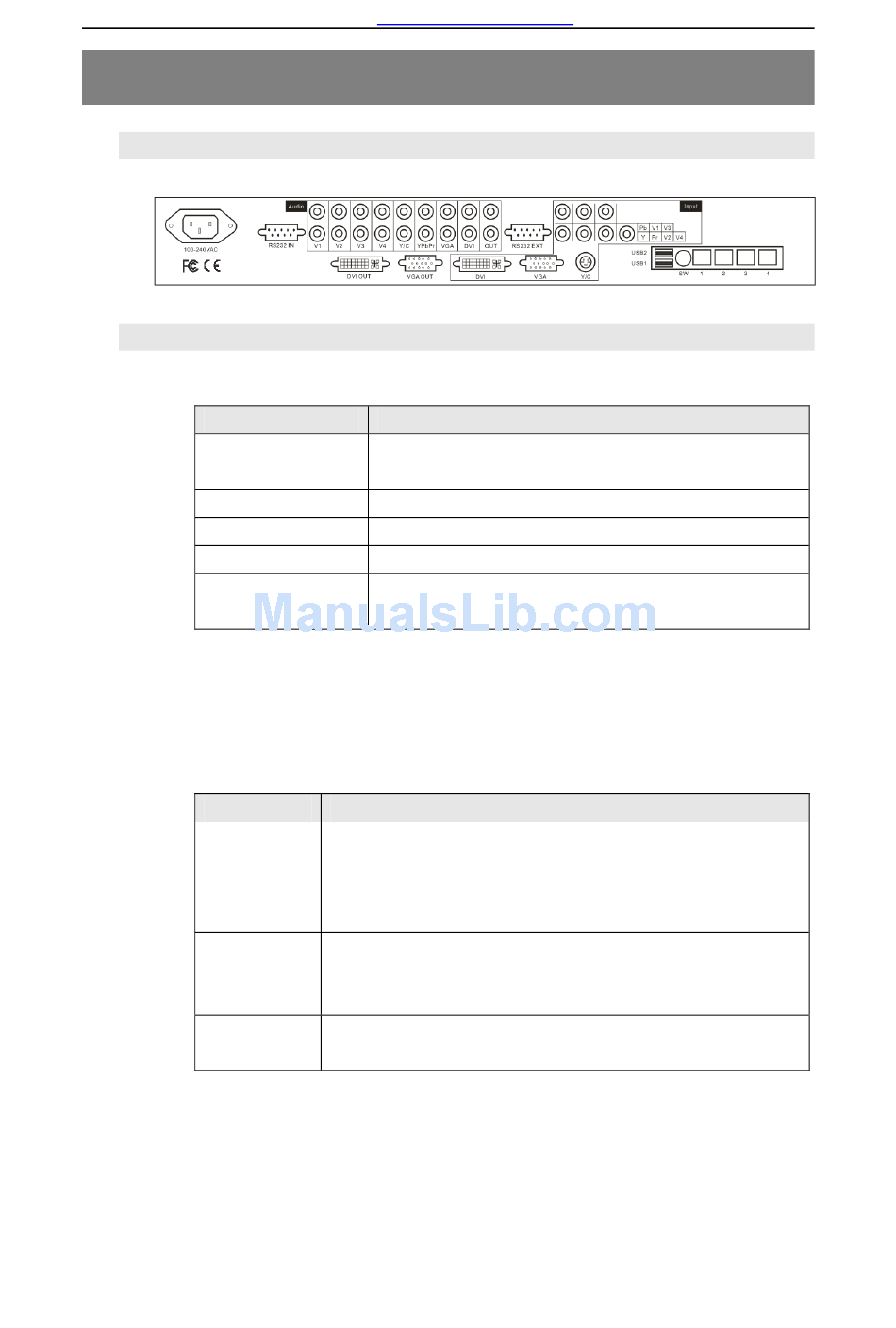

1. Rear view

2. Port description

1） Video input (INPUT column)
LedSync820C supports 8-channel signal input, including:
Port name
V1~V4
Y/C (S_Video)
VGA
DVI
YPbPr
2） Audio input
Corresponding to 8-channel video input signal, LedSync820C
supports 8-channel stereo audio signal input
3） Video signal output
Port name
VGA OUT
DVI OUT
(1)
DVI OUT
(2)
4） Audio signal output
It corresponds to the selected video input signal, and output
this channel audio input signals.
---------------------------------------------------------------------------------------------------
VEGAS LED SCREENS - LED VIDEO PROCESSOR
Vegas LED Screens
Figure 1
Description
4-channel PAL/NTSC
video input
1-channel PAL/NTSC system S_Video input
1-channel computer analog signal input
1-channel computer digital signal input
1-channel high-definition component signal
input
Description
1-channel analog RGBHV signal output, it can be
connected to a local display device and used as
monitor (it is strongly recommended to use this
port when operating and setting LedSync820C).
1-channel digital DVI signal external output, it is to
be connected with external LED transmission card
or LED transmission box
1-channel digital DVI signal internal output, it is to
be connected with internal LED transmission card.
system composite
4
