LedSync820C User's Manual
2. Setup of LedSync820C output image
LedSync820C can setup its output image by operating the buttons
on frontal panel. After LedSync820C is started up, all buttons on frontal
panel are in operation mode. As above section III.2 describes, if you
press "STD" button for continuous 18 times, LedSync820C will enter
setup state, and all buttons on frontal panel are ready to be in setup
mode. See the table below for the definitions of each button:

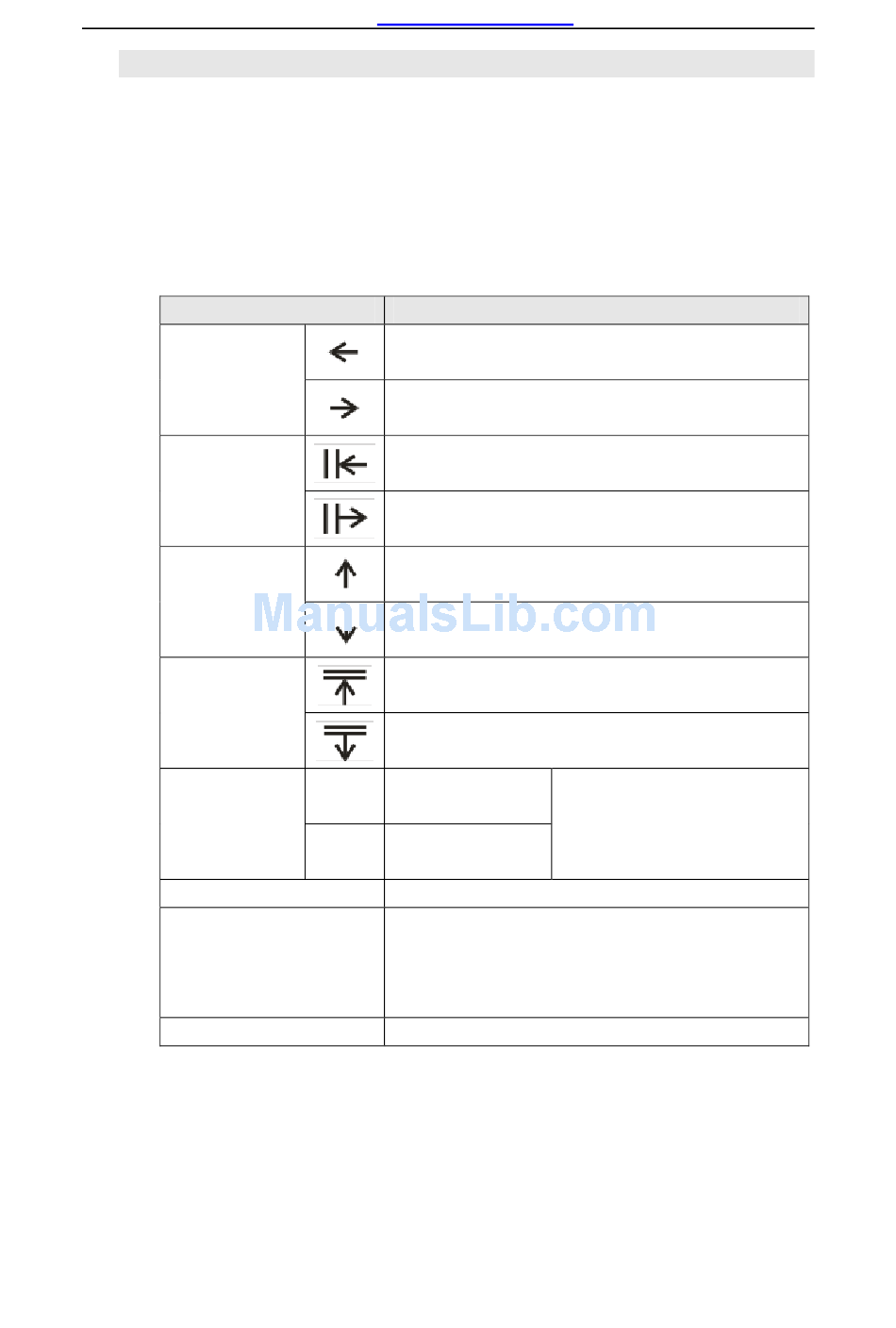

Name
Hor_Str
Hor_Width
Vert_Str
Vert_Height
Video_Color
Save
Setup
Step
Notes:
a) Generally Hor_Str≥0. If you need modify it, the value of
Hor_Str can be setup to be – 8 ;
b) Generally Vert_Str≥0. If you need modify it, the value of
Vert_Str can be setup to be – 5 ;
---------------------------------------------------------------------------------------------------
VEGAS LED SCREENS - LED VIDEO PROCESSOR
Vegas LED Screens
Description
Move output image leftward.
Move output image rightward.
Decrease width of output image
Increase width of output image
Move output image upward.
Move output image downward.
Decrease height of output image
Increase height of output image
-
Decrease video
color
+
Increase video
color
Save currently adjusted values
Press the button for continuous 18 times,
LedSync820C will enter setup state, press
it again, LedSync820C will exit setup state
and enter operation state.
Select step value 1 or 10
Standard color value=0. -
16 represents the lowest
color, +16 represents the
highest color
10
