Summary of Contents for Vdwall LVP100

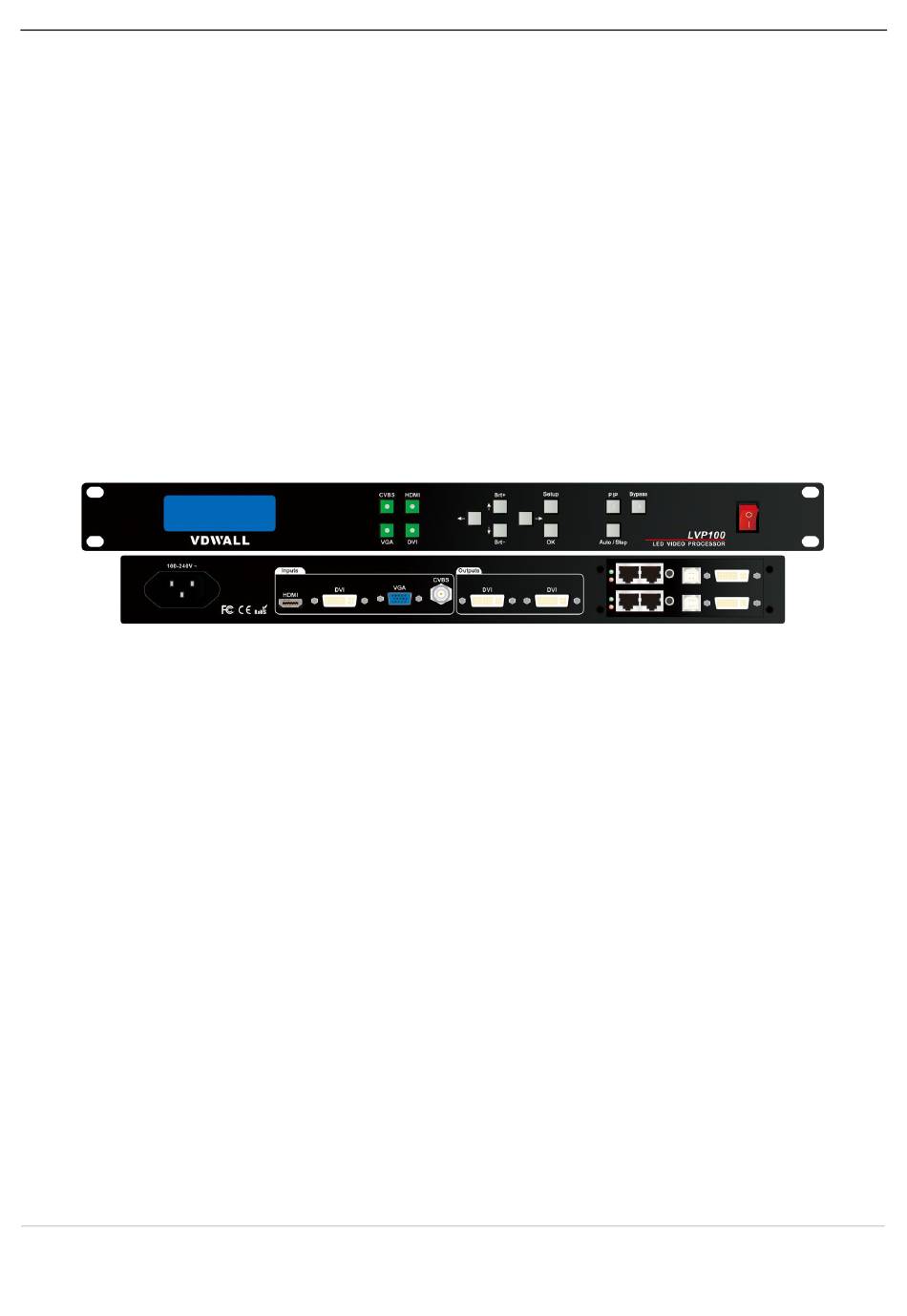

- Page 1 SHENZHEN VDWALL CO.,LTD en.vdwall.cn LVP100 LED HD Video Processor USER MANUAL V1.0 Add: Room B, 5th Floor, Bldg.C, Tongfang Information Harbor, Nashan Hi-Tech Park, Nanshan District, Shenzhen Tel: +86-755-2675 0210 / 2650 1506 / 2663 6668 Marketing QQ：400-0660-628 Technical QQ Group：422024594...
-
Page 2: Table Of Contents
LVP100 USER MANUAL Contents Contents Chapter 1：Safety precautions ..........................3 Chapter 2：Packing list ............................4 Chapter 3：Hardware connection .......................... 5 3.1 Diagram of signal ports on rear panel ..................5 3.2 Ports description ..........................5 3.3 Hardware connection diagram ....................... 7 3.4 Technical specification ........................8... -
Page 3: Chapter 1：Safety Precautions
LVP100 USER MANUAL Chapter 1：Safety precautions Chapter 1：Safety precautions Danger There exists high voltage in the processor, in order to prevent any unexpected hazard, please do not open the cover of the device unless you are a maintenance. Warning 1. This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device;... -
Page 4: Chapter 2：Packing List
LVP100 USER MANUAL Chapter 2： Packing List Chapter 2：Packing list Please unpack the product carefully, then check whether all the following things are included in the package. If anything is missing, please contact the dealer. Standard accessories The accessories supplied with this LED Video Processor may differ from the figures on the User’s Manual, but they are applicable for the regions where you live. -
Page 5: Chapter 3：Hardware Connection
② DVI output port ③ RS232 interface, optional interface ④ Audio port 3.2 Ports description 3.2.1 Inputs LVP100 LVP100 supports 8 video input signals as follows: Ports Description CVBS 1 channel of Composite video input (PAL/ NTSC) 1 channel of PC analog signal input... - Page 6 LVP100 USER MANUAL Chapter 3: Hardware Connection 3.2.2 DVI Outputs Ports Description 2 channels of DVI output port to connect LED sending DVI1、DVI2 cards or monitors. 3.2.3 RS232 interface Ports Description Serial communication interface, RS232 level, RS232 connected to the RS232 interface of computer.
-
Page 7: Hardware Connection Diagram
LVP100 USER MANUAL Chapter 3: Hardware Connection 3.3 Hardware connection diagram Pic 3-3a LVP100 Hardware connection diagram... -
Page 8: Technical Specification
LVP100 USER MANUAL Chapter 3: Hardware Connection 3.4 Technical specification Specification of Inputs 1×CVBS 1×VGA (RGBHV) Quantity / Type 1×DVI 1×HDMI (VESA / CEA-861) Composite Video Input PAL / NTSC Composite Video 1V (p_p) / 75Ω Amplitude Impedance VGA Format PC (VESA Standard) ≤2048×1152_60Hz... - Page 9 LVP100 USER MANUAL Chapter 3: Hardware Connection 2048×1152_60Hz 2304×1152_60Hz 2560×816_60Hz Output Interface DVI OUT: 24+1 DVI_D Others Control Ports RS232 (Optional) Voltage of Input 100-240VAC 50 / 60Hz Power Consumption ≤25W Temperature of 0-45℃ Environment Humidity of 15-85% Environment Size of Product 482.6 (L)x200 (W)x44 (H)mm...
-
Page 10: Product Dimensions
LVP100 USER MANUAL Chapter 3: Hardware Connection Product Dimensions： Pic 3-4a LVP100 Product dimensions... -
Page 11: Chapter 4：Description For Front Panel Buttons
LVP100 USER MANUAL Chapter 4: Description for Front Panel Buttons Chapter 4：Description for front panel buttons 4 .1 Sketch map of front panel buttons 图 Pic 4-1 Sketch map of front panel buttons Selection buttons of input signals ② Setup buttons ③... -
Page 12: Pip Function Buttons
PIP: Turn on/off the function “picture in picture” or “picture in picture”. When the indicator is on, that means this function is ready. 4.1.6 Information button ( OK ) Press OK to check the current settings and information of LVP100 while it is On the state of switching channel. -
Page 13: Chapter 5：Instructions Of Basic Operations For Users
5.1 Selection from input signals LVP100 enables you to switch it to a new input signal by pressing input buttons, and the input signals selection buttons are as the follow form: Buttons... -
Page 14: Operations On Pip Mode
5.2 Operations on PIP mode It is permitted to insert a PIP window on LVP100, this PIP input signal can be any non-grouped input signals (grouped input signals are as follows on page 18). The position and size of these dual image can be set into 4 modes. -
Page 15: Output Brightness Selection ( Brt+, Brt- )
5.4 VGA input automatic adjustment ( Auto ) When LVP100 is under the status of “One Key Switching” and the VGA input signal is valid, press the button Auto and the sampling parameter of VGA input signal is automatically adjusted, thus lead to a clear image. -
Page 16: Freeze
5.7 Check system information (OK) In the signal switching state, press OK button to display the current settings and information of LVP100,continue to press OK or ↑ ↓ to check other information items before the menu is exited. Model LVP100... -
Page 17: Chapter 6：User Setup Menu Instructions
LVP100 USER MANUAL Chapter 6: User Setup Menu Instructions Chapter 6：User setup menu instructions The user setting menu is set for the total processor and is divided into two types of settings, as shown in the following table: Setting items... -
Page 18: Enter Adjustment Settings
Setup button, and then press OK, LVP 100 will quickly enter the first adjustment item. Exit the adjustment setting: Press the Setup button directly under the adjustment setting, then the LVP100 directly exit the adjustment setting. After the LVP100 enter the adjustment setting mode, the button functions of the setting are: buttons functions ↑... -
Page 19: Language Setting
Indicates that the new adjustment value has been saved. Step of the value adjustment 6.2 Language setting After entering the adjustment setting mode, the LVP100 enters the first item: 1. Language menu, LVP100 supports both Chinese and English languages. Language 语言... -
Page 20: Output Image Settings
Out_Vert_Start 6.3.1 Modify the output resolution The LVP100 output images from two DVI output ports, having 16 output formats in total. You can enter the 2. Out_Format option to select the setting. Users can select the output resolution that not less than the LED screen. - Page 21 6.3.2 Set output image parameters The actual pixel value of the LED display can be any value, so we need to set the LVP100 to just output the pixel size of the LED display, so the LED display shows a whole image.
- Page 22 ← or → to adjust the parameter value, and press the OK button to save the parameter. 6.3.3 DVI EDID The LVP100 supports the DVI EDID setting function to change the default optimal resolution of the DVI input to ensure that the graphics card can output to the corresponding ultra-wide or ultra-high resolution of the output.
-
Page 23: Switching Time Setting
6.4 Switching time setting This menu item is used to set the switching time between the two different group signals of the LVP100, including 0 second seamless switching and 0.5 second, 1 second or 1.5 second fade-in and fade-out switching. -
Page 24: Ntsc Image Mode Setting
LVP100 USER MANUAL Chapter 6: User Setup Menu Instructions Notes: ①. In order to ensure the gray scale of the output image is complete, usually set the output parameter to the default value! ②. The color parameters are invalid for DVI and HDMI signals in RGB format, and VGA is in RGB format, so the above signal color parameters are invalid. -
Page 25: Test Pattern
Notes: The current signal source must be connected to a valid input signal, and the test pattern has output, otherwise there is no output. 6.9 Device ID The LVP100 supports the device number function to remote control multiple LVP100 processors by the central control. Device number range: 0~255. Device... -
Page 26: Factory Setting
Press<OK> Processors that have no ADC correction may have color cast or dark screen when input analog signals. The LVP100 can automatically realize white balance correction based on input analog signals (CVBS, VGA signals) to solve relevant problems. Steps: Switch to the corresponding analog input signal. After the processor detects the input signal and outputs it to the display, enter the setup menu 15. - Page 27 The LVP100 can be corrected by adjusting the “Low Gray Bias” parameter, which is limited to: 0~100. When the dark picture signal is lost, if the value is increased the lost information will recover...
- Page 28 LVP100 USER MANUAL Chapter 6: User Setup Menu Instructions standard value is set at 50! Steps: Enter the menu 15. Device ID, press CVBS button 5 times, the menu will automatically enter 16.ADC calibration, press ↑ to switch to 18.Bias, press ← or → to switch the adjustment parameters, then press OK button to make the setting take effect.
- Page 29 Device Init ！ This option is used to reset the LVP100's parameter to the factory state. Steps: Enter the setup menu 15. Device ID, press CVBS button 5 times, the menu will automatically enter “16.ADC calibration”, press ↑ continuously to enter“21. Device Init”, press → switch to select “Yes”,...
-
Page 30: Appendix: Correction Log Table
LVP100 USER MANUAL Correction Log Table Appendix: correction log table Version Date Descriptions Draft 2018.6.21 LVP100 first release...
