In order to make sure users can quickly use LedSync850M LED video processor, we
prepared the<LedSync850M quick user guide>. About LedSync850M deeply setup,
adjustment and operation, please refer to <LedSync850M user manual>.

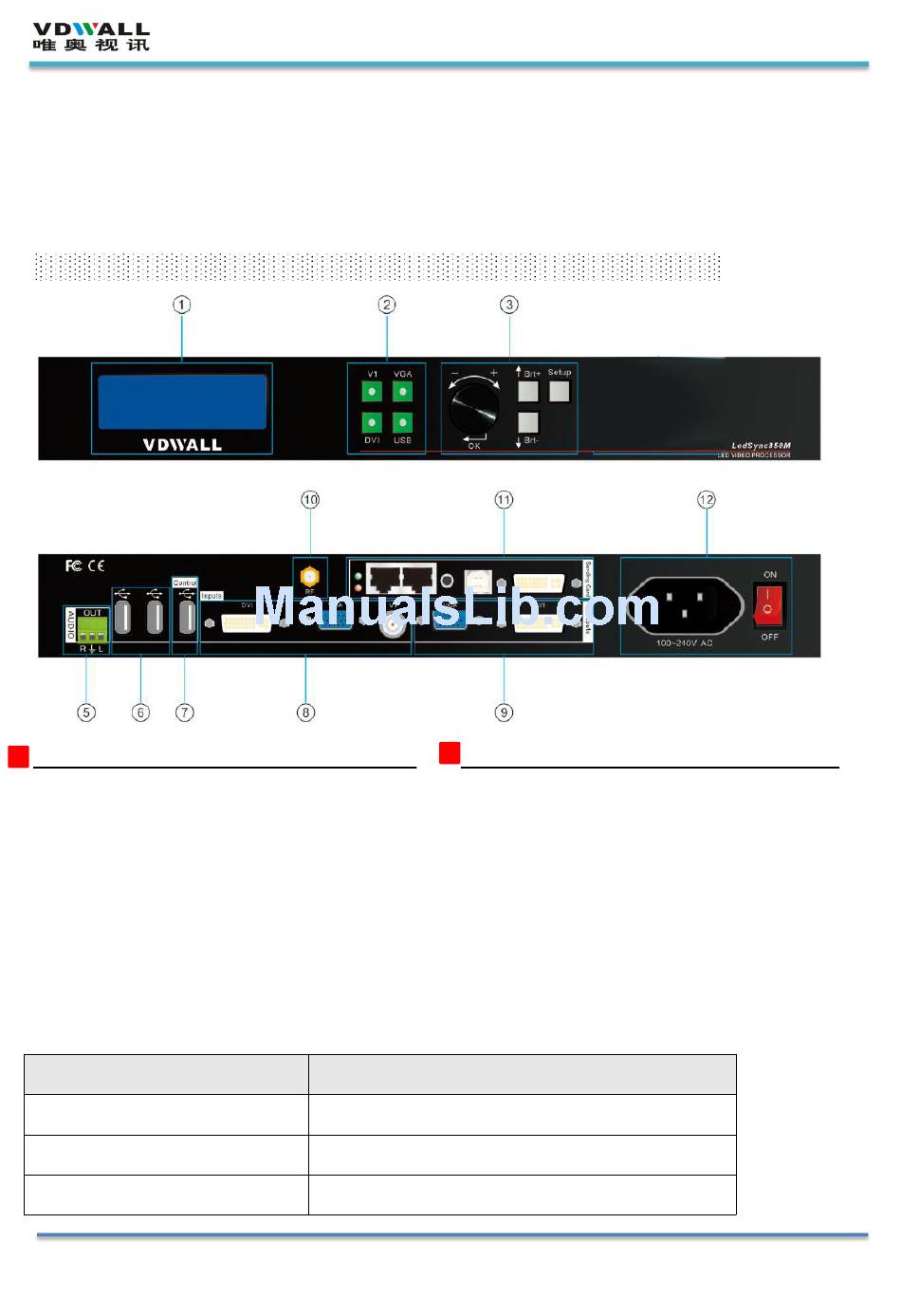

Front and rear panel button introduction
Front panel introduction
①LCD Screen(displaying information)
②Input signal selection keys
③parameters setting key and knob
LedSync850M supports 4 video signal inputs as below：
port
V1
VGA
DVI / HDMI
Address:5B, building C,building C,Nanshan Hi-tech park,Nanshan District,Shenzhen City,
Website:www.videowall.cn TEL：+86-755-2675 0210 FAX：+86-755-2675 0185
LedSync850M quick user guide V1.0
Description
1 PAL/ NTSC standard composite video input
1 analog signal input of computer
1 DVI/HDMI digital signal input
LedSync850M Quick guide
Rear panel introduction
⑤USB audio output module
⑥USB signal input port
⑦USB control port
⑧Signal input ports
⑨VGA/DVI output port
⑩RF Antenna port
