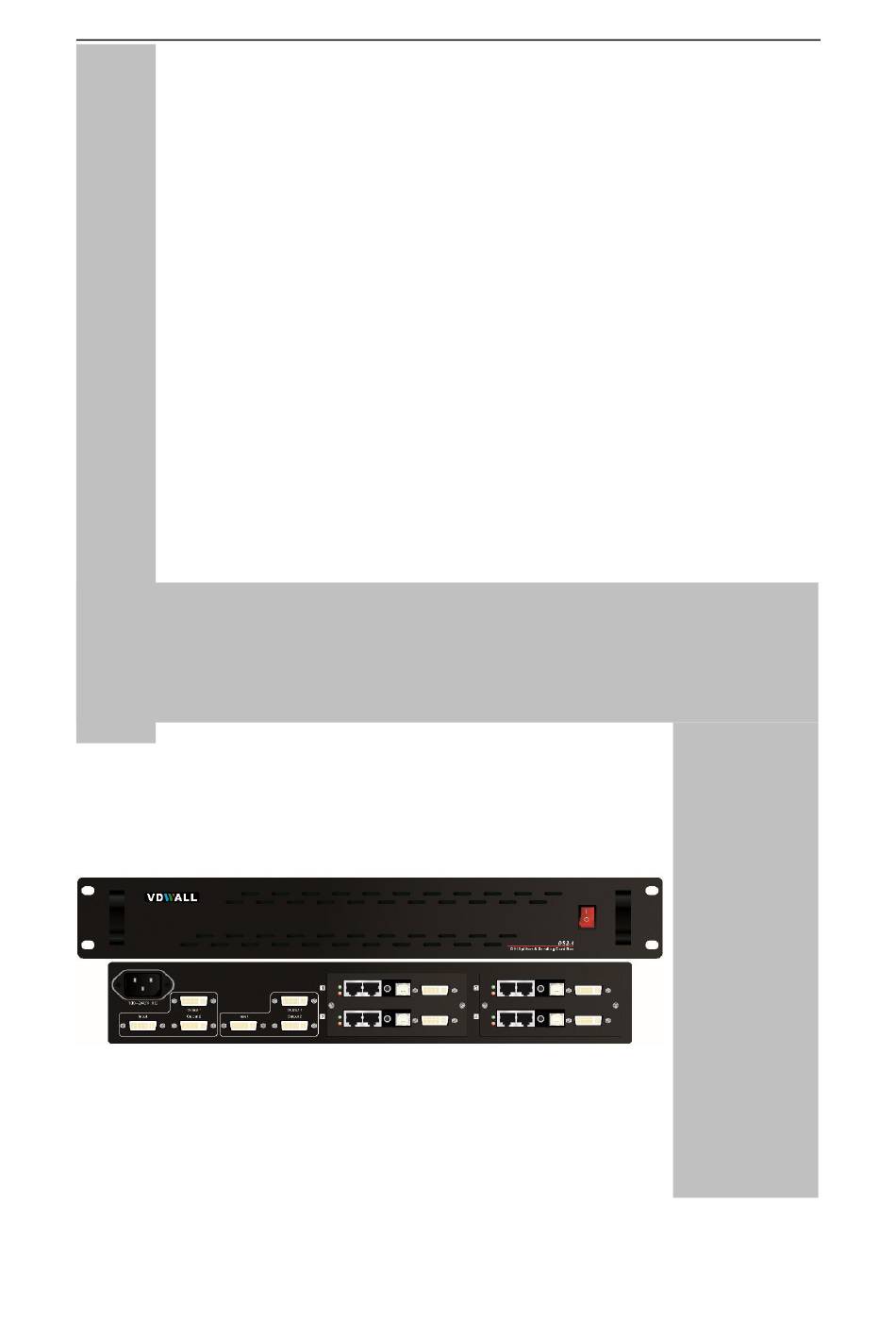

- Page 1 DS2-4 User Manual DS2-4 Splitter + Sending Cards Box Two In One Product User Manual...
-
Page 2: Table Of Contents
DS2-4 User Manual Contents Chapter1 Safety Precautions...........03 Chapter2 Item List..............04 Chapter3 Product Introduction..........05 Chapter4 Hardware Connections..........06 4-1 Rear Panel Signal Port Diagram......06 4-2 Typical Application Connection Diagram.......06 4 - 3 S e n d i n g C a r d s I n s t a l l a t i o n I n s t r u c t i o n ... . 0 7 4-4 Specifications..............07... -
Page 3: Chapter1 Safety Precautions
DS2-4 User Manual Chapter1 Safety Precautions Danger There is high voltage in the processor, to prevent any unexpected hazard, unless you are maintenance personnel, please do not open the cover of the device. Warning 1. This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device. -
Page 4: Chapter2 Item List
DS2-4 User Manual Chapter2 Item List Please unpack the product carefully, then check whether all the following things are included in the package. If anything is found missing, please contact the dealer. Standard accessories The accessories supplied with this DVI distributor may differ from the figures contained in the User’s Manual, but they are applicable for the regions where... -
Page 5: Chapter3 Product Introduction
LVP8601, LVP909, etc, it provides stable and reliable DVI signal for the cascading of dual sending cards. Every DVI input of DS2-4 contains DVI EDID, it can also be used for the distribution applications of graphics card DVI signal. -
Page 6: Chapter4 Hardware Connections
DS2-4 User Manual Chapter4 Hardware Connections 4-1 Rear Panel Signal Port Diagram Diagram 4-1 Rear Panel Signal Port Diagram 1：DVI Input Port 2：Two DVI Output Ports 3：Sending Cards Installation Position 4-2 Typical Application Connection Diagram LED display Monitor Ethernet cable... -
Page 7: S E N D I N G C A R D S I N S T A L L A T I O N I N S T R U C T I O
DS2-4 User Manual 4-3 Sending Cards Installation Instruction Loosen the panel screws draw sending card tray. Install the sending card Plug in the sending card cable push the tray into chassis Tighten the screws, complete installation 4-4 Specifications Input signal index Quantity / type 2×DVI（VESA）... - Page 8 DS2-4 User Manual 1280x960_60 1920x1200_60 Output signal index Quantity / type 4×DVI DVI format PC（VESA standard） Dot frequency ＜165MHz Output port DVI OUT：24+1 DVI_D Others Input voltage 100-240VAC 50/60Hz Power consumption ≤25W Environment 0-45 ℃ Temperature Environment 15-85% Humidity Dimension...
