In order to make sure users can quickly use LVP609 serial LED video processor, we prepared
the<LVP609 serial quick user guide>. About LVP609 deeply setup, adjustment and operation,
please refer to <LVP609 serial user manual>.

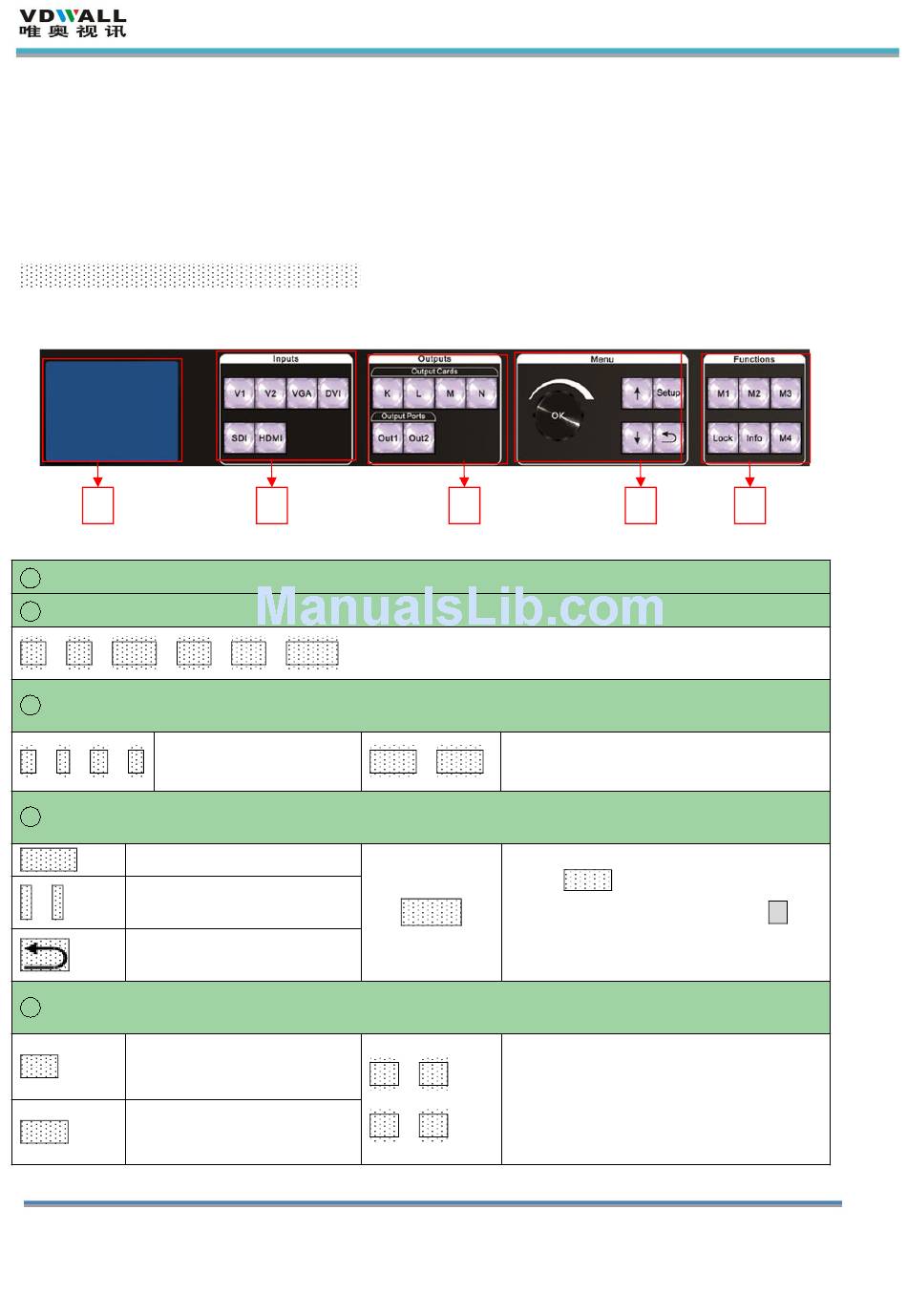

Front\rear panel button introduction
Front Panel Button
1
LCD display screen: display parameter information
1
Input signal selection buttons: select signal from corresponding input port
2
V1，V2，VGA，DVI，SDI，HDMI
Output card buttons: Select output cards and ports
3
K，L，M，N
Selection buttons
Setup buttons: select output cards and output ports
4
Setup
Enter setup menu
↑，↓
Select setup item
Menu return button
Other function buttons
5
Device Information
Info
checking button
Button lock/
Lock
button unlock
地址：深圳市南山区科技园北区同方信息港 C 栋 5B 网址：www.videowall.cn
电话：+86-755-2675 0210 传真：+86-755-2675 0185
LVP609 Series Quick Using Guide V1.0
2
Output Cards
LVP609 Series Quick Using Guide
3
Out1，Out2
Output Port selection buttons
Turn
Knob
of setup item, press know(
save the parameter.
M1，M2，
display mode selection buttons
M3，M4
4
to change parameters
Knob
5
) to
OK
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vdwall LVP609 Series
Summary of Contents for Vdwall LVP609 Series
- Page 1 LVP609 Series Quick Using Guide LVP609 Series Quick Using Guide V1.0 In order to make sure users can quickly use LVP609 serial LED video processor, we prepared the<LVP609 serial quick user guide>. About LVP609 deeply setup, adjustment and operation, please refer to <LVP609 serial user manual>.
- Page 2 LVP609 Series Quick Using Guide Back Panel 图 3-1 后面板信号端口图 Photo 3-1 back panel signal port ①Video Input ports ②video output ports ③ communication ports Step 1: Input, output signal connection 1) Turn off power of all signals’ devices 2) Connect output signals of video source to video input port of LVP609 3) LVP609 DVI output→DVI input port of sending cards, connect one of DVI outputs to LCD...
- Page 3 LVP609 Series Quick Using Guide Step 2: Connect power, turn on the processor 1) Confirm the connection of input and output signals correct 2) Plug in the power of LVP609, turn on the LVP609 3) Connect the power of signal source devices Step 3: Input signal Selection Turn on LVP609, LCD panel displays as below;...
- Page 4 LVP609 Series Quick Using Guide parameter to mosaic quickly. The operation steps as below: LED Setup Out-K/M1/Out2 -------------------------------------- 1.LED Total Width 3840 2.LED Total Height 2160 3.Unit Width 1920 4.Unit Height 1080 5.Unit H_Start 6.Unit V_Start 7.Auto Calculation OK To Apply...
- Page 5 LVP609 Series Quick Using Guide Appendix: Adjustment Sheet Version Time Description Draft V1.0 2017.5.9 The first release 地址：深圳市南山区科技园北区同方信息港 C 栋 5B 网址：www.videowall.cn 电话：+86-755-2675 0210 传真：+86-755-2675 0185...
