Summary of Contents for Vdwall LVP 100U
-

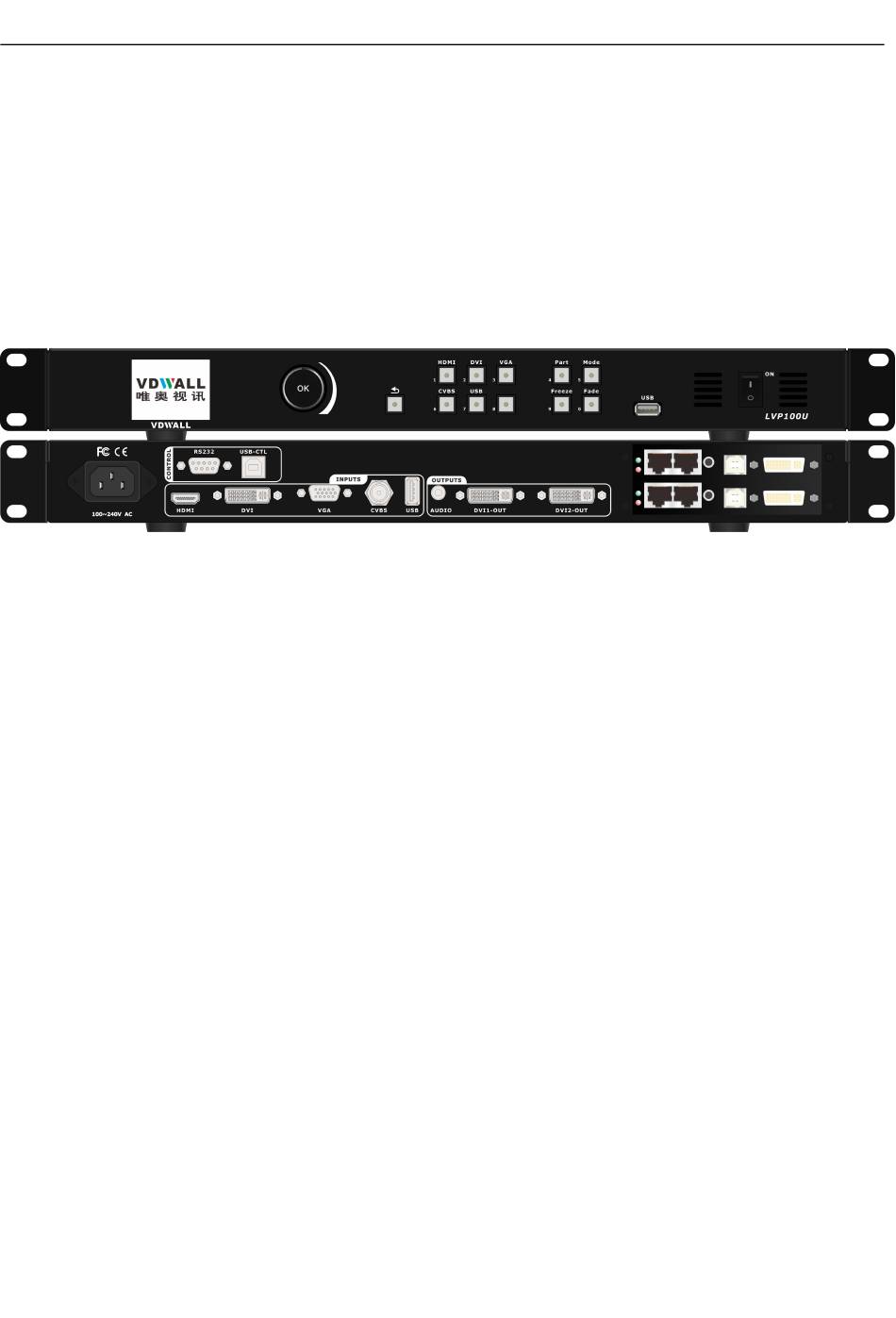

Page 1: Led Video Processor

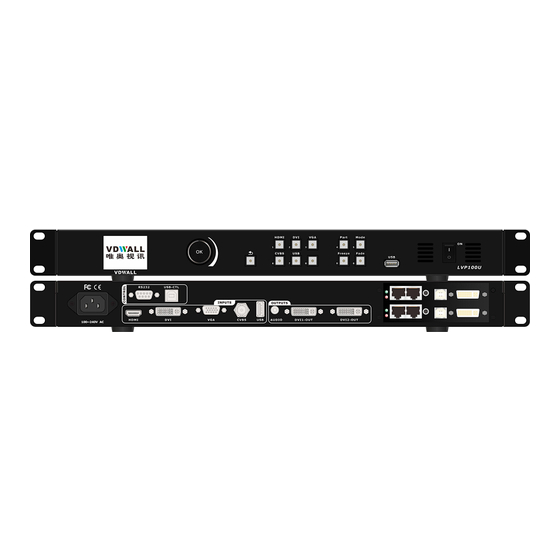

LVP100U User Manual LED Video Processor --- LVP 100U User Manual V1.0... -
Page 2: Table Of Contents
LVP100U User Manual Contents ‘ LED Video Processor --- LVP 100U ............................. 1 Safety Precaution ..................................3 Accessory Package ................................4 Hardware And Connection ..............................5 C-1）Signal Port ................................5 C-2）Port Description ..............................5 C-2-1）Video Input Port ............................6 C-2-2）Video Output Port ............................. 6 C-2-3）LED Sending Card (Optional) ......................... -
Page 3: Safety Precaution
8) Please immediately unplug power cord and have the device repaired, when 1. Liquid splashes to the device. 2. The device is dropped down or cabinet is damaged. 3. Obvious malpractice is found or performance degrades. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 4: Accessory Package
The accessories supplied with this product may differ from the following pictures, but they are applicable for the regions where you live Spare List： 1.5m Power Cable x 1 0.5m DVI cable x 1 1.5m HDMI cable x 1 Product USB disk x 1 User manual x 1 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 5: Hardware And Connection
1 video input card which can access in 6 channels of video source, includes HDMI, DVI, VGA, CVBS, USB(Front) and USB(Rear)，if both front and rear USB ports have valid signal, front USB port secure higher priority. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 6: C-2-1）Video Input Port
0.65 million pixels. Before sending card installation, dismantle the top cover and slot baffle first, then screw fix the sending card inside. 4 x 5V DC power connector and 2 x 4 PIN power provided. LED Sending Card 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 7: C-2-4）Communication And Firmware Update Port
Partial image display button, after user complete image cropping configuration in setup menu，press this button to apply Press this button to save current display mode, Max 10 preset modes provided, preset[1]～[10] free selection 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 8: Connection Diagram
AC power button C-4）Connection Diagram Picture 4 C-5）Specification Input Signal 1×CVBS 1×VGA（RGBHV） 1×DVI（VESA / CEA-861） Amount / Type 1×HDMI（VESA / CEA-861） 2×USB（USB2.0） PAL / NTSC Composite Video Video Amplitude/ 1V（p_p）/ 75Ω Impedance PC（VESA Standard） HDMI ≤1920x1280@60Hz HDMI1.3（CEA-861） 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... - Page 9 1340*2018@60Hz Customized Output Resolution @30Hz： 530（5.3 million pixels） 4096*640@30Hz 3840*720@30Hz 2560*1080@30Hz 1340*2018@30Hz AUDIO Format Stereo Output DVI OUT：24+1 DVI_D Output Terminal AUDIO OUT：AUDIO Others Control Port RS232 Control& Update USB-CTL Input AC Power 100-240VAC 50/60Hz 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD...
- Page 10 482.6(L) x 200(W) x 44(H) mm 535（L）x315（W）x145（H）mm Packaging Dimension GW：4Kg, NW：2.5Kg Weight 1.2M Power Cable×1 0.5M DVI Cable×1 Standard Accessory 1.5M HDMI Cable×1 User Manual × 1 USB Disk×1 Optional Accessory Sending Card×2 C-6）Installation Dimension Picture 5 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD...
-
Page 11: Menu Setup
In main menu mode, if there is no operation in 1 minute, system will automatically return to default menu; in default menu mode, if there is no operation in 1 minute, processor LCD display logo image. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 12: D-1-1） Language
D-1-1） Language D-1-1-1） Language LVP100U provides dual language option，select menu 1）Language/语言, rotate OK button to change language, press OK button to apply. 1) Language/语言 2) Resolution 1920×1080 60HZ ！旋钮调整，OK 选定 ！Turn to set, <OK>Enter 钮调整，OK 选定 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 13: D-1-2） Output Image Setup
7 preset output resolution is described as following： Option 1024×768_60Hz 1280×720_60Hz 1280×1024_60Hz 1600×1200_60Hz 1920×1080_60Hz 1920×1200_60Hz 1920×1280_60Hz Menu interface is as following： 1) Language/语言 中文 2) Resolution 1920×1080 60HZ ！旋钮调整，OK 选定 ！Turn to set, <OK>Enter 钮调整，OK 选定 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... - Page 14 V Front Porch V Sync Width V Back Porch D-1-2-1-3） Output Image Setup LED screen adopt flexible resolution to fit with various application occasion, requires proper output image parameter setting to achieve flawless whole image display. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD...
-
Page 15: D-1-2-2） Dvi Edid
Support DVI EDID function to optimize extra wide or height display. Preset DVI EDID includes 1920x1080@60Hz, 1920x1200@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x1024@60Hz, 1600x1200@60Hz. Under menu 3. DVI EDID，rotate OK button to select proper resolution，press OK button to activate setting. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 16: D-1-2-3）Out_Hori_Width
3) DVI EDID 1920×1080 60Hz 4) Out_Hori_Width 1920 ！旋钮调整，OK 选定 ！Turn to set, <OK>Enter 钮调整，OK 选定 D-1-2-4）Out_Hori_Start Enter menu 5）Out_Hori_Start to configure output image horizontal start，adjustment range： 0～1856，Out_Hori_Width + Out_Hori_Start <=1920，press OK button to confirm and apply. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 17: D-1-2-5）Out_Vert_Height
8) Brightness（Default = 50） ！Turn to set, <OK>Enter ！旋钮调整，OK 选定 D-1-3） Brightness / Saturation / CVBS Sharp D-1-3-1） Brightness Enter menu 8）Brightness to adjust image brightness，adjustment range：0～100. Default value is 50，press OK button to confirm and apply. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 18: D-1-3-2） Saturation
Normal ！旋钮调整，OK 选定 ！Turn to set, <OK>Enter 钮调整，OK 选定 D-1-4）Device Reset D-1-4-1） Device Reset LVP100U to factory mode，press OK button to confirm and Enter menu 11）Device Reset to reset apply，rotate OK to confirm or cancel. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 19: D-1-5） Device Info
Press Mode button，rotate OK button to select “Recall”，“Save”，“Erase”. select“Save”, press OK button to confirm，rotate OK button to select preset position，press OK to apply. Notice：Must delete existed preset mode before writing in new mode. Can’t recall the preset mode that haven’t been written in. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 20: Appendix：manual Update Record
LVP100U User Manual Appendix：Manual Update Record Version Date Description Draft V1.0 2023.4.21 First Release 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD...
