In order to make sure users can quickly use LVP615 serial LED video processor, we prepared
the<LVP615 serial quick user guide>. About LVP615 deeply setup, adjustment and operation,
please refer to <LVP615 serial user manual>.

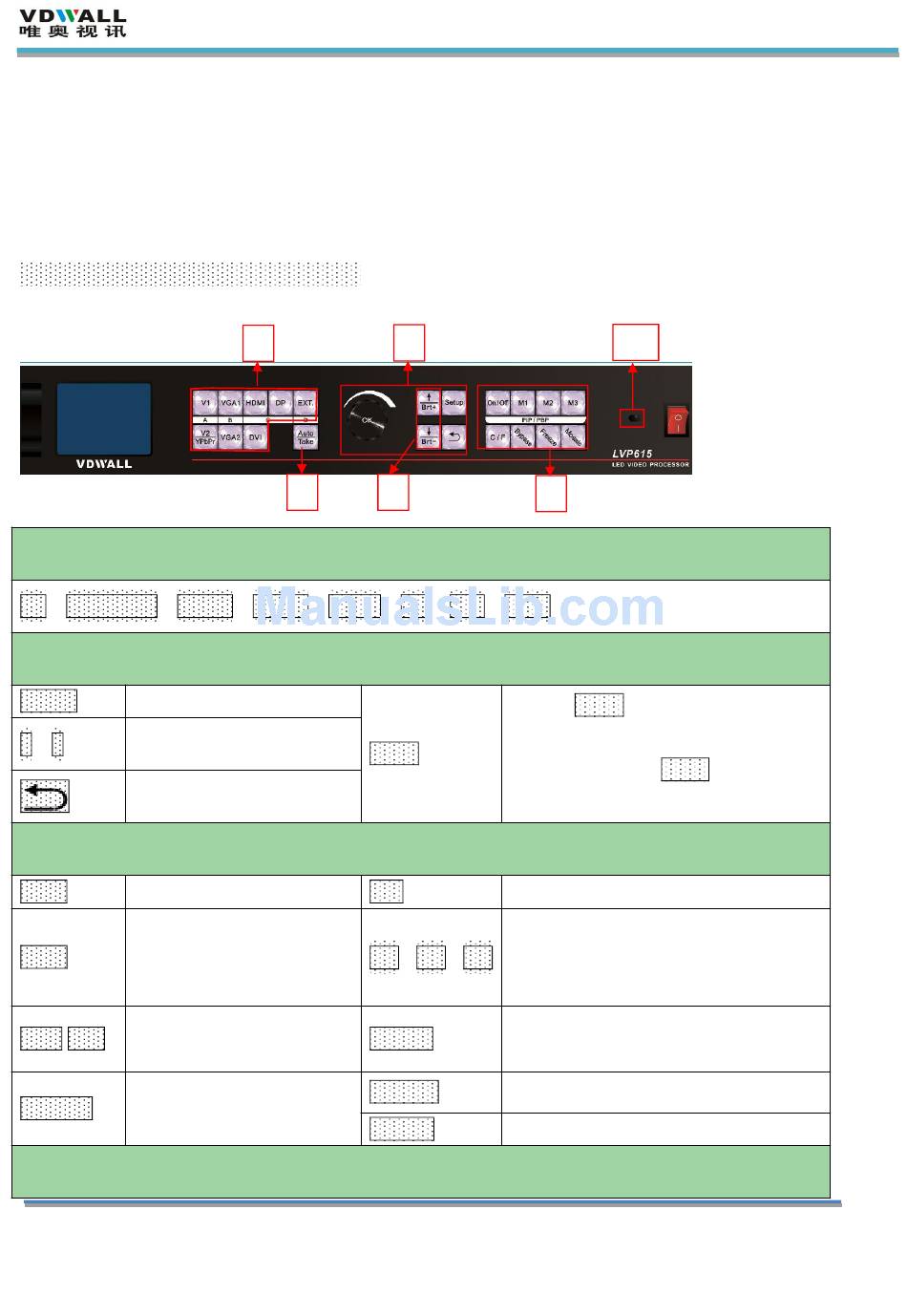

Front\rear panel button introduction
Front panel button
○
1 input signal selection keys：used to select corresponding input signals.
V1，V2/YPbPr，VGA1，VGA2，HDMI，DP，DVI，EXT.
○
2 setup key：used to set LVP615 parameters
Setup
Enter menu
↑，↓
Select setup items
Menu return key
○
3 other function keys
Auto
VGA auto adjustment
Switch
Take
Pre+Take
mode
Output
Brt+ Brt-
adjustment key
Full and part display
Bypass
mode and switching key
○
4 remote sensing window： built in infrared receiver
地址：深圳市南山区科技园北区同方信息港 C 栋 5B 网址：www.videowall.cn
电话：+86-755-2675 0210 传真：+86-755-2675 0185
LVP615 serial quick user guide V1.0
1
3
knob
C/F
signals
under
switching
M1，M2，M3 PIP/PBP display mode key
brightness
On/Off
Mosaic
Freeze
2
3
3
rotate knob can change current
setup item parameters
press knob （ OK key)to save
parameters.
switching effect selection key
PIP/PBP function on/off key
Mosaic function on key
Output image freeze key
LVP615 系列快速使用指南
4
Advertisement
Table of Contents
Related Manuals for Vdwall LVP615 Series
Summary of Contents for Vdwall LVP615 Series
- Page 1 LVP615 系列快速使用指南 LVP615 serial quick user guide V1.0 In order to make sure users can quickly use LVP615 serial LED video processor, we prepared the<LVP615 serial quick user guide>. About LVP615 deeply setup, adjustment and operation, please refer to <LVP615 serial user manual>. Front\rear panel button introduction Front panel button ○...
- Page 2 LVP615 系列快速使用指南 Rear panel button 1）video signal input ports 2）audio signals input and output 3）video signal outputs 4） communication ports 5） sending card installation location Step 1 ： sending card installation 1) Take out LVP615 processor, unscrew the sending card baffle screws and pull out the sending card tray.
- Page 3 LVP615 系列快速使用指南 unscrew the screws and pull out the tray Install sending card connect power cable and push the tray into the box. Tighten the fixed screws and finish installation Step 2 ： connect input and output signals 1) Turn off the power of all signal source devices. 2) Connect the output signals from video sources to corresponding video input ports of LVP615.
- Page 4 LVP615 系列快速使用指南 Connection diagram Step 3 ： Connect power and power on 1) Make sure all input and output connection correct. 2) Connect power to LVP615 and turn on it. 3) Power on the video source devices. Step 4 ： input signals selection After turn on LVP615, LCD will show as below.
- Page 5 LVP615 系列快速使用指南 Input： HDMI In status： 1080p_60Hz -------------------------------------- Output size： 1920x1080 Output start： （0，0） -------------------------------------- Switch mode： one key SW Switch time： 1.5sec Step 5 ： output resolution setup When turn on LVP615, 1) Press Setup key，then press knob （OK） ，LVP615 enter setup menu and press ↑,↓ to select corresponding setup menu.
- Page 6 LVP615 系列快速使用指南 “ copy” “ extend” or “ dual display “ . 2) Set the monitor resolution as the same of LVP615 output resolution. The LVP615 LCD will display current computer resolution. Step 8 ： part / full display （ Bypass ） 1) Press DVI key to select DVI input signal.
- Page 7 LVP615 系列快速使用指南 D.PIP/PBP Mode=M1 -------------------------------------- D.1 PIP width D.2 PIP height D.3 PIP H_start D.4 PIP V_start D.5 Main width 1920 D.6 Main height 1080 D.7 Main H_start D.8 Main V_start 2) PressM1~M3 to select needed set mode, press↑↓ to select needed set items and rotate knob to change parameters.
