LVP609 Series

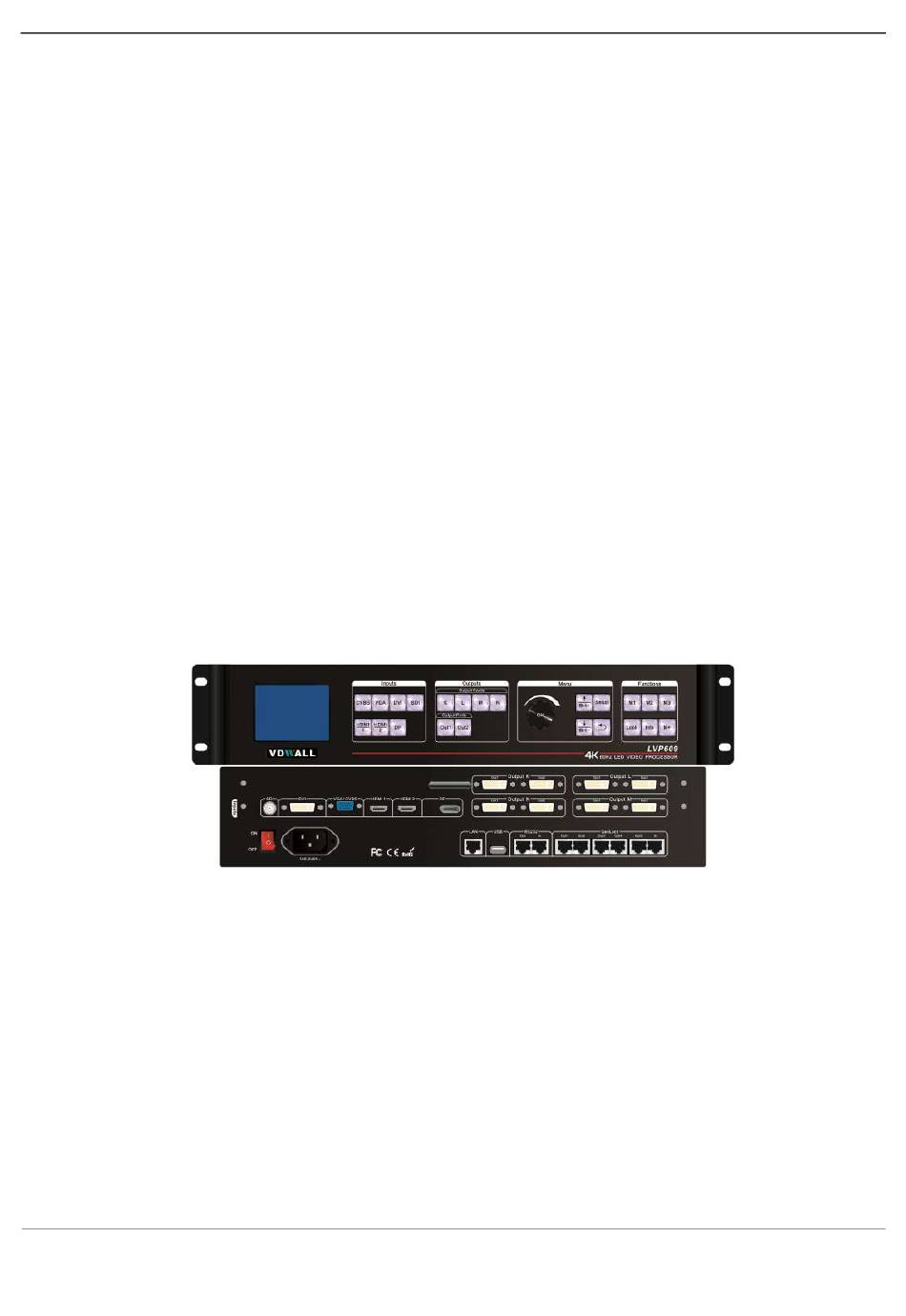

4K 60Hz LED Video processor
User Manual
Tel:
+86-755-2675 0210 / 2650 1506 / 2663 6668
Fax: +86-755-2675 0185
Add: Room B, 5th FIoor , Bldg . C , Tongfang lnformation Harbor, Nanshan Hi-Tech park , Nanshan District , Shenzhen
Web: en.vdwall.cn; www.videowall.cn
Advertisement
Table of Contents
Related Manuals for Vdwall LVP609 Series
Summary of Contents for Vdwall LVP609 Series
- Page 1 SHENZHEN VDWALL CO., LTD www.videowall.cn www.vdwall.cn LVP609 Series 4K 60Hz LED Video processor User Manual Tel: +86-755-2675 0210 / 2650 1506 / 2663 6668 Fax: +86-755-2675 0185 Add: Room B, 5th FIoor , Bldg . C , Tongfang lnformation Harbor, Nanshan Hi-Tech park , Nanshan District , Shenzhen...
-
Page 2: Table Of Contents
LVP609 series user manual Contents Contents Chapter 1: Safety precautions............................3 Chapter 2: Packing list................................4 Chapter 3: Hardware connection............................5 3.1 Rear panel signal port picture........................5 3.2 Port description............................5 3.3 Hardware connection diagram.........................7 3.4 Technical specification..........................7 3.5 Installation dimension..........................9 Chapter 4 : Frontal panel button description....................... -
Page 3: Chapter 1: Safety Precautions
LVP609 series user manual Chapter 1: Safety precautions Chapter 1: Safety precautions Danger ! There is high voltage in the processor, to prevent any unexpected hazard, unless you are a maintenance personnel, please do not open the cover of the device. -
Page 4: Chapter 2: Packing List
LVP609 series user manual Chapter 2: Packing list Chapter 2：Packing list Please unpack the product with care, and then check whether all the following items are included in the package. If anything is found missing, please contact the dealer. Standard accessories... -
Page 5: Chapter 3: Hardware Connection
LVP609 series user manual Chapter 3：Hardware connection Chapter 3：Hardware connection 3.1 Rear panel signal port picture Picture 3-1 Rear panel signal port picture ○ 1 Video input port ② Video output port ③ Communication port 3.2 Port description 3.2.1 Video signal input... - Page 6 LVP609 series user manual Chapter 3：Hardware connection 3.2.1 Video signal input LVP609 can assemble maximum 4 output cards, the serial number are K L M N. Every output card can outputs 2 channels of DVI image signal, output port as the table below:...
-
Page 7: Hardware Connection Diagram
LVP609 series user manual Chapter 3：Hardware connection 3.3 Hardware connection diagram Picture 3-3 hardware connection diagram 3.4 Technical specification Input signal index 1×CVBS 1×VGA（RGBHV） 1×DVI（VESA /CEA-861） Quantity / type 1×SDI（HD-SDI/3G-SDI） 2×HDMI 2.0（VESA /CEA-861） 1×DP1.2（VESA） Composite video PAL/NTSC system Composite Video 1V（p_p）/ 75Ω... - Page 8 LVP609 series user manual Chapter 3：Hardware connection VGA Amplitude / R, G, B = 0.7 V（p_p）/ 75Ω Impedance PC（VESA） ≤1920×1200_60Hz DVI format HDMI1.3（CEA-861） ≤1080p_60Hz SMPTE259M-C 480i_60Hz SMPTE 292M SDI format 576i_50Hz SMPTE 274M/296M 720p、1080i、1080p SMPTE 424M/425M HDMI 2.0 PC（VESA） ≤1920×1200_60Hz （HDCP 2.2）...
-
Page 9: Installation Dimension
LVP609 series user manual Chapter 3：Hardware connection 3.5 Installation dimension Picture 3-5a installation dimension drawing RS232 connection wires, wires order Note: 1. A is RS232 female connector 2. B is RJ45 connector 3. Accord with emergency decree, The wires must be soft:... -
Page 10: Chapter 4 : Frontal Panel Button Description
LVP609 series user manual Chapter 4 : Frontal panel button description Chapter 4 : Frontal panel button description 4.1 Frontal panel button sketch map Picture 4-1 frontal Panel button sketch map ① Input signal selection button ② Output card function button ③... - Page 11 LVP609 series user manual Chapter 4 : Frontal panel button description 4.1.3 Output card port selection button Output card selection button, when select some output port, the green indicator light on relative button lit up normally, this moment you can do relative operation to the output image.
- Page 12 LVP609 series user manual Chapter 5: User basic operation instruction 4.1.6. Display mode buttons（M1，M2，M3，M+）： Press display mode button to call the display mode, meantime the indicator light on the button lit up normally. Every set of display mode in the device include the input and output parameter of output image.
-
Page 13: Chapter 5: User Basic Operation Instruction
LVP609 series user manual Chapter 5: User basic operation instruction Chapter 5: User basic operation instruction After system power on, LVP609 will detect the quantity, location and configuration information of card automatically, different configuration, the display interface on LCD is different, the relative instruction below is under full configuration (4 output cards) and system start under default menu. - Page 14 LVP609 series user manual Chapter 5: User basic operation instruction 5.1.2 Signal switching time setup Switching between input signal, can set 0s seamless switching or 1s, 2s, 3s fade in fade out switching, you can configure these parameter in user menu, press Setup button to enter user setup menu select 1.Input Card Setup—2.Advanced Setup—1.Fade Time to enter the configuration...
-
Page 15: Output Card Operation
LVP609 series user manual Chapter 5: User basic operation instruction 5.2 Output card operation In user operation interface, the operation content of output card includes check output port information and display mode setup. 5.2.1 Check output port parameter Firstly press output card button（K, L, M, N） to select output card, then press output port button （Out1, Out 2）to select output port, this moment the LCD on front panel displays the input and... - Page 16 LVP609 series user manual Chapter 5: User basic operation instruction When button is lock status, press Lock button 3 times continually to exit. Button Lock -------------------------------------- Keypad Invalid LAN Valid RS232 Valid USB Valid -------------------------------------- Picture 5-3a LCD interface：Button lock 5.3.2 Check system information（Info）...
- Page 17 LVP609 series user manual Chapter 5: User basic operation instruction System Info -------------------------------------- Made： 2017-04 -------------------------------------- Picture 5-3c LCD interface： System information Input -------------------------------------- Version： V1.1.0 Source： Status： No Input -------------------------------------- Picture 5-3d LCD interface： System information Output - L -------------------------------------- Out Format：...
-
Page 18: Chapter 6 : User Setup Menu Instruction
LVP609 series user manual Chapter 6 : User setup menu instruction Chapter 6 : User setup menu instruction User setup menu is about whole processor setup, total divide to be 3 modules, respectively are input card setup, output card setup, sync&backup setup and system setup. - Page 19 LVP609 series user manual Chapter 6 : User setup menu instruction Brightness 6.1.1 1. Brightness menu is used to set the brightness parameter.Rotate knob to change current parameter, press knob ( OK button ) to save parameter, 2. Reset option is used to reset brightness parameter.
-
Page 20: Output Card Setup
LVP609 series user manual Chapter 6 : User setup menu instruction Menu Function description 1. Fade Time set fade in fade out switching time between input signal DVI input port hot plug signal switch setup, it is applied for minority 2. - Page 21 LVP609 series user manual Chapter 6 : User setup menu instruction 6.2.1 Output image setup Output Image Setup Out-K / M1 / Out2 -------------------------------------- 1. In Width 1920 -> 956 3840 2. In H_Start 3. In Height 1080 2160 4. In V_Start 5.
- Page 22 LVP609 series user manual Chapter 6 : User setup menu instruction LED setup menu used to import LED splicing screen parameter for quick splicing. The operation method of quick splicing as below: ① In 1-2 option import the total width and height of the LED needed to splice;...
-
Page 23: Sync & Backup Setup
LVP609 series user manual Chapter 6 : User setup menu instruction Setup method: Press output card button（K，L，M，N）to select output card, press ↑,↓ button to select relative setup menu option, press OK button, then in the reminder menu of data will reset, press OK button again. - Page 24 LVP609 series user manual Chapter 6 : User setup menu instruction Menu Function description Master-Slave "On" means that the dual processor backup function is turned on Backup and "off" means that the function is turned off "Master" device uses the internal synchronization signal, "Slave"...
- Page 25 LVP609 series user manual Chapter 6 : User setup menu instruction Malfunctio Malfunction description Backup way n number ① LVP609-A switch HDMI-2A 1,2,3,4 HDMI-1: 2 video outputs HDMI-1A Meanwhile: and HDMI-1B no signal ② LVP609-Bswitch to HDMI-2B LVP609-A turn off output, all LED...
-
Page 26: System Setup
LVP609 series user manual Chapter 6 : User setup menu instruction Parameters Setting Menu Master Processor Salve Processor Master-Slave Backup GenLock Sync. Master Slave RS232 Master-Slave Slave Slave Device ID HDMI-1/2 Backup Enable HDMI1 / 2 hot backup function 6.3.3... - Page 27 LVP609 series user manual Chapter 6 : User setup menu instruction System Setup -------------------------------------- 1. IP Setup 2. MASK Setup 3. GATE Setup 4. MAC Setup 5. Advanced Setup -------------------------------------- Picture 6-4a LCD interface：System setup Communication setup 6.4.1 IP Setup -------------------------------------- 1.
- Page 28 LVP609 series user manual Chapter 6 : User setup menu instruction GATE Setup -------------------------------------- 1. Address 1 2. Address 2 3. Address 3 4. Address 4 -------------------------------------- Picture 6-4d LCD interface: GATE Setup MAC Setup -------------------------------------- 1. Address 1 2. Address 2 3.
- Page 29 LVP609 series user manual Chapter 6 : User setup menu instruction System advanced setup 6.4.2 System Advanced Setup -------------------------------------- 1. 语言 Language English 2. Device ID 3. Reset Data OK To Apply -------------------------------------- Picture 6-4f LCD interface: System advanced setup 6.4.2.1 Language setup...
-
Page 30: Chapter 7: Mode Instruction
LVP609 series user manual Chapter 7: Mode instruction Chapter 7: Mode instruction LVP609 serials adopt insert card design method, the quantity of output card depend on requirement to custom-make. The specific mode description as below: LVP609X Number of Output cards... -
Page 31: Appendix: Manual Modification Record
Appendix: Manual modification record LVP609 series user manual Appendix: Manual modification record Version Date Description Name 2017.5.9 First release Add 2 HDMI2.0 and 1 DP1.2 ports and backup function 2017.9.12...
