- Page 1 LedSync820C LED Video Processor Vegas LED Screens www.vegasledscreens.com USER’S MANUAL...
-
Page 2: Table Of Contents
1. Diagram of frontal panel---------------------------------------------------------- 7 2. Button operations -------------------------------------------------------- 7 3. Software control--------------------------------------------------------------------- 8 IV. Output image setup 1. LedSync820C output image----------------------------------------------------- 9 2. Setup LedSync820C output image ------------------------------------------ 10 V. Troubleshooting ------------------------------------------------------------------ 12 VI. Specifications ----------------------------------------------------------------------- 15 ---------------------------------------------------------------------------------------------------... -
Page 3: Safety Precautions
LedSync820C User’s Manual Vegas LED Screens I. Safety Precautions Danger! There is high voltage in the processor, to prevent any unexpected hazard, unless you are a maintenance, please do not open the cover of the device. Warning! 1. This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device. -
Page 4: Connections Of Hardware

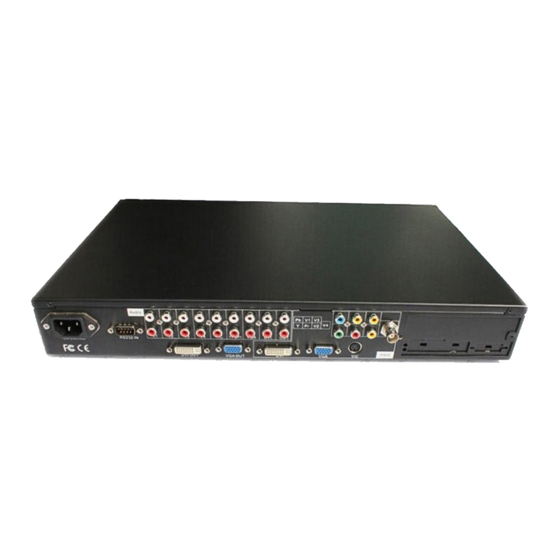

1-channel computer analog signal input 1-channel computer digital signal input 1-channel high-definition component signal YPbPr input 2） Audio input Corresponding to 8-channel video input signal, LedSync820C supports 8-channel stereo audio signal input 3） Video signal output Port name Description VGA OUT... - Page 5 Controller can operate and control LedSync820C via this communication port. RS232 EXT Reserved port, if LedSync820C has built-in LED transmission card and this card has RS232 control port, RS232 EXT port can bridge RS232 control port of LED transmission card to outside of LedSync820C case.
-
Page 6: Connectivity Diagram Of Hardware
LedSync820C User’s Manual Vegas LED Screens 3. Connectivity Diagram of hardware: Figure 2 --------------------------------------------------------------------------------------------------- VEGAS LED SCREENS - LED VIDEO PROCESSOR... -
Page 7: Frontal Panel Operations
III. Frontal panel operations 1. Diagram of frontal panel Figure 3 2、 Button operations: LedSync820C have 14 buttons on frontal panel, after start-up all these buttons are in operation mode. Their functions are described as below: 1） Select input video source... -
Page 8: Software Control
Timing Control software , user can operate and control LedSync820C using this software, including: Switch input signal source, change brightness of output images. Manually operate and control it or edit operation and control schedule to make it executed automatically. -
Page 9: Ledsync820C Output Image
However, the resolution of LED screen is not exactly 1024×768 pixels. When the resolution of LED screen is less than 1024×768 pixels, we can set LedSync820C to output the images exactly fitting the resolution of LED screen, so that the LED could display a full frame of image. -
Page 10: Setup Ledsync820C Output Image
2. Setup of LedSync820C output image LedSync820C can setup its output image by operating the buttons on frontal panel. After LedSync820C is started up, all buttons on frontal panel are in operation mode. As above section III.2 describes, if you press “STD”... - Page 11 The custom video color is only accessible by pressing “DEF“ button while in operation mode; h) If there are no valid input signals in LedSync820C, when it enters setup mode, a green screen will be generated as reference image;...
-
Page 12: Troubleshooting
V. Troubleshooting 1、 Dark screen, no image on LED Check the input source of LedSync820C for any abnormality. If the indicator above input signal button is illumed, it means the input source is in good condition; however, if the indicator blinks, it means some fault has occurred. - Page 13 Make sure S_Video output of DVD player has been actuated (some DVD players might have disabled S_Video output, it must be reset and actuated). If Y/C indicator on frontal panel of LedSync820C still blinks, please have supplier repair it ---------------------------------------------------------------------------------------------------...
- Page 14 COM port of PC, the other end connects RS232 IN of LedSync820C; 2) Eject SW button on the rear of LedSync820C case, select the RS232 communication mode through COM port of PC; 3) Identify the No. of the PC’s COM port to be connected, e.g.
- Page 15 LedSync820C User’s Manual Vegas LED Screens after long-term transmission passing many sections of Ethernet cable. Please adopt high-quality Ethernet cable and RJ45 connector, and shorten the Ethernet cable to the most extent --------------------------------------------------------------------------------------------------- VEGAS LED SCREENS - LED VIDEO PROCESSOR...
-
Page 16: Specifications
LedSync820C User’s Manual Vegas LED Screens VI. Specifications Inputs Nums/Type 1×RGBHV(VGA) 1×DVI 1×YPbPr(HDTV) 4×CVBS 1×Y/C(S-Video) Video system PAL/NTSC CVBS Scope/Impedance 1V (p_p) / 75Ω Y/C Scope/Impedance Y: 0.7V (p_p) / 75Ω, C: 0.35V (p_p) / 75Ω RGB/DVI resolution 1280×1024@60Hz, 1024×768@60Hz , 800×600@60Hz... - Page 17 LedSync820C User’s Manual Vegas LED Screens Vegas LED Screens LLC 62 E. Serene #129 Las Vegas, Nevada 89123, United States Tel: +1 (702) 997 2252 Email: info@vegasledscreens.com Site: www.vegasledscreens.com --------------------------------------------------------------------------------------------------- VEGAS LED SCREENS - LED VIDEO PROCESSOR...
