Summary of Contents for Vdwall LVP615

  • Page 1: Table Of Contents

    LVP615 operation application instruction Contents 1…………………………………………………………Signal switch keys 2…………………………………………………………User setup configuration keys 3…………………………………………………………PIP /PBP function keys 4…………………………………………………………Function keys 5…………………………………………………………Power switch and socket 6…………………………………………………………Audio ports 7…………………………………………………………PC software control ports and WiFi antenna 8…………………………………………………………Signal source input port 9………………………………………………………….Video output ports 10……………………………………………………….Sending card slot 11……………………………………………………….Setting language...

  • Page 2: Signal Switch Keys

    13…………………………………………………..…..User defined output resolution 14………………………………………………………..Setting output width and height 15………………………………………………………..Setting DVI EDID 16………………………………………………………..Setting signal hot spare 17………………………………………………………..Input channel V2 / YPbPR configuration 18………………………………………………………..Preselect input quick switch 19………………………………………………………..Setting HD text 20………………………………………………………..Setting Audio 21………………………………………………………..Setting PIP/POP 22………………………………………………………..Setting splicing (Mosaic) 23…………………………………………………………Example 1 LED screen 1792 x 1024 24…………………………………………………………Example 2 LED screen 2578 x 624 25…………………………………………………………Example 3 LED 2048 x 512 26…………………………………………………………Example 4 LED 3840 x 2160...

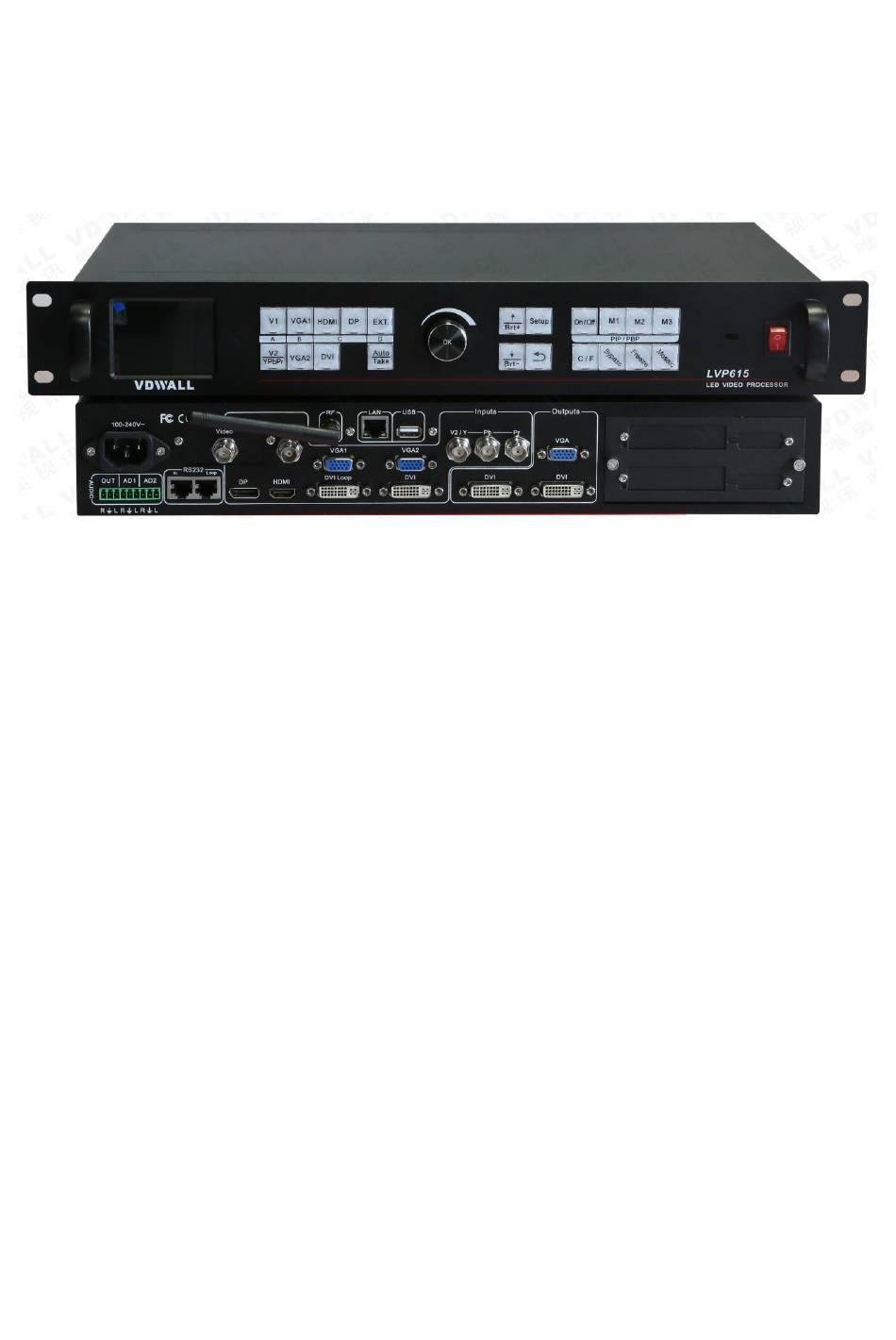

  • Page 3 1.1 LVP615 has 9 channels input ports, V1, VGA1, VGA2,HDMI, DP, V2 / YPbPr, DVI and EXT, if you want LVP615 outputs which vide source press relative signal key; 1.2 These input ports be divided to 4 groups A B C D (the source from same group can’t select as PIP source, and don’t have seamless and fade in / out switch...

  • Page 4: User Setup Configuration Keys

    correct location you can press the button to adjust the video location and let it in correct location); 2. User setup configuration keys 2.1. Setup: press the key to enter user setup menu; 2.2. Brt+: after entering user setup menu, press the key to select next one setup option (when exit user setup menu press the key to increase brightness);...

  • Page 5: Pip /Pbp Function Keys

    3. PIP /PBP function keys 3.1. On / Off: PIP switch, press it to open or off PIP function; 3.2. M1 M2 M3: PIP memory keys, before setting PIP parameters select a mode first for saving parameters, every mode can save different parameters; 3.3.

  • Page 6: Power Switch And Socket

    Fade in / out switching and blend switching; 4.2. Bypass: press the key to open or off part / full output, for example when it is open, LVP615 only outputs part video of input source, when it is off LVP615 outputs full video of input source (...
  • Page 7 6.1. Out: audio output port, connect audio amplifier input port; 6.2. AD1 and AD2: two channels audio input ports; 6.3. R : right audio channel, Ground, L: left audio channel; 6.4. Audio connector: connect audio cable to the connector then plug the audio connector to LVP615’s audio port;...

  • Page 8: Pc Software Control Ports And Wifi Antenna

    7. PC software control ports and WiFi antenna 7.1. RS232: In port connects PC RS232 port ( Loop connect next LVP615 can achieve one PC to control servera LVP615s); 7.2. RF: WIFI antenna; 7.3. LAN: local area network control port, connect network rourter;...

  • Page 9: Video Output Ports

    8.1. LVP615 has 9 channels input ports, V1, VGA1, VGA2,HDMI, DP, V2 / YPbPr, DVI and EXT, connect relative video source to relative input port; 9. Video output ports 9.1. 2 DVI output ports, used for connect sending card or some display device with DVI input port;...

  • Page 10: Sending Card Slot

    (the output video source from DVI input port, it means the DVI Loop copy the video source from LVP615’s DVI input port then output, when we use Mosaic function will need the DVI Loop port 10. Sending card slot 10.1. Every LVP615 can put in 2 common sending cards (...
  • Page 11 输入： HDMI 输入状态： 1080p -------------------------------------------------------------------- 输出画面尺寸： 1920 x 1080 输出起始坐标： ( 0, 0 ) -------------------------------------------------------------------- 切换方式： 一键直接切换 切换时间： 0 秒 11.2. Press Setup key to enter setup menu, press Brt- key to select 7. 语言/ Language then press OK to enter language configuration menu; 设置...
  • Page 12 >> 8. Advanced 12.2. After entering output image setup menu, press Brt- key to select 1.2 Resolution, rotate OK to select correct output resolution for LVP615, then press OK to enter confirmation menu press OK to confirm( Note: the output...
  • Page 13 13. User defined output resolution 13.1. When select 1.2 Resolution rotate OK to select Custom 1920 x 1080_60, then press OK to enter custom resolution configuration menu; 2. Output Image -------------------------------------------------------------------- 1.2 Resolution Custom 1920 x 1080_60 1.2 Out Width 1920 1.3 Out Height 1080...
  • Page 14 3 total pixel must be less than 240 thousand pixels； 14. Setting output width and height 14.1. After opening processor press Setup key to enter setup menu, press Brt- to select 1.Output Image, press OK to enter output image setup; Setup Input：...
  • Page 15 DVI EDID resolution when PC graphic card open extended mode then connect the cable to LVP615’s DVI input port, PC will output the DVI EDID resolution, custom the resolution please refer custom output resolution 2.
  • Page 16 OK to save ( for example you have connected input source HDMI and DVI to LVP615, at present is DVI source output if some problem happens the DVI source lost LVP615 will automatically switch video source to HDMI 2. Input Video Signal -------------------------------------------------------------------- 2.1 DVI EDID...
  • Page 17 OK to open preselect input quick switch function ( after opening the function preselect a input source LVP615 can achieve quick switch between present output video and preselect video, after preselecting video source press Auto / Take key to switch signal source);...
  • Page 18 19. Setting HD text 19.1. After entering user setup menu, press Brt- or Brt+ key to select setup option 3. Text Overlay then press OK to enter text overlay setup; Setup -------------------------------------------------------------------- >> 1. Output Image >> 2. Input Video Signal >>...
  • Page 19 signal is a PPT from computer, when the background of PPT is white choose ＜Threshold，set Threshold (R G B) to be 16，because the threshold value from black to white are 0 to 255,it means threshold value 0-16 will be left and 16-255 will be lost；when the background of PPT is black choose ＞...
  • Page 20 5.2. Audio 1 Config VGA1 21. Setting PIP/POP 21.1. After opening LVP615 press On / Off key to open PIP / POP function, then press signal key to select a video source for PIP / POP window; Main Input： HDMI Main In Status：...
  • Page 21 21.2. Press Setup key to enter PIP setup menu, press Brt+ or Brt- key to select setup option, rotate OK to change parameter, press OK to save parameters (before setting parameters you can press M1 M2 M3 to select a mode to save these parameters);...
  • Page 22 2160; 22.4. In menu the Unit width and Unit height must be as same as the actual LED screen the unit LVP615 connected; 22.5. After set these parameters of last two steps, press Brt+ or Brt- key to select setup option E.8 Auto Calculation, press OK to calculate input parameters automatically;...
  • Page 23 E.15 Out H_Start E.16 Out V_Start 22.7. Note: when LVP615 have opened splicing function( Mosaic) also can use PIP / POP function, the input and output resolution of processor which has opened Mosaic function must be same; 23. Example 1 LED screen 1792 x 1024...

  • Page 24: Setting Output Resolution

    5. Audio >> 6. Communication Switch Time： 0 Sec 7. 语言主/ Language >> >> 8. Advanced 23.3. After entering output image setup menu, press Brt- key to select 1.2 Resolution, rotate OK to select correct output resolution for LVP615, then...
  • Page 25 press OK to enter confirmation menu press OK to confirm( Note: the output resolution you select must be bigger than the resolution of actual LED screen or equal 4. Output Image Tips -------------------------------------------------------------------- -------------------------------------------------------------------- 1.2 Resolution 1920 x 1080_60 Data will reset Press <...
  • Page 26 896x1024; 23.8. After opening LVP615 press On / Off key to open PIP / POP function, then press signal key to select a video source for PIP / POP window;...
  • Page 27 23.9. Press Setup key to enter PIP setup menu, press Brt+ or Brt- key to select setup option, rotate OK to change parameter, press OK to save parameters (before setting parameters you can press M1 M2 M3 to select a mode to save these parameters);...
  • Page 28 HD text application 23.12. After entering user setup menu, press Brt- or Brt+ key to select setup option 3. Text Overlay then press OK to enter text overlay setup; Setup -------------------------------------------------------------------- >> 1. Output Image >> 2. Input Video Signal >>...
  • Page 29 3. Text Overlay -------------------------------------------------------------------- 3.1 Text Overlay 3.2 Text Source VGA1 < Threshold 3.3 Text Mode 3.4 Threshold 3.5 Threshold 3.6 Threshold 23.15. Normally we use PC’s PPT software to make the text content then the PC’s output video as text source ( the principle you can refer 19.
  • Page 30 24. Example 2 LED screen 2578 x 624 Setting output resolution 24.1. After opening processor press Setup key to enter setup menu, press Brt- to select 1.Output Image, press OK to enter output image setup; Input： HDMI Setup In Status： 1080p -------------------------------------------------------------------- >>...
  • Page 31 custom resolution menu, ( because the resolution 2578 x 624 our processor doesn’t have so we need to custom it, specification about custom output resolution please refer 13. User defined output resolution); 6. Output Image -------------------------------------------------------------------- 1.2 Resolution Custom 1920 x 1080_60 1.2 Out Width 1920 1.3 Out Height...
  • Page 32 25. Example 3 LED 2048 x 512 Setting output resolution 25.1. After opening processor press Setup key to enter setup menu, press Brt- to select 1.Output Image, press OK to enter output image setup; Input： HDMI Setup -------------------------------------------------------------------- In Status： 1080p >>...
  • Page 33 25.2. After entering output image setup menu, press Brt- key to select 1.2 Resolution, rotate OK to select 2048 x 1152_60, then press OK to enter confirmation menu press OK to confirm; 7. Output Image Tips -------------------------------------------------------------------- -------------------------------------------------------------------- 1.2 Resolution 2048 x 1152_60 Data will reset Press <...
  • Page 34 25.5. When you configure sending card system, the resolution of sending card must be as same as the output resolution of LVP615’s, and make sure let the input source resolution of LVP615 less than 1920 x 1080 or equals; 26. Example 4 LED 3840 x 2160...
  • Page 35 LED screen are same 1920 x 1080; 26.2. When you open LVP615’s Mosaic function to splicing very bigger LED screen, there are some conditions you need to consider: 1. Every processor must set same output resolution;...
  • Page 36 9. Output Image Tips -------------------------------------------------------------------- -------------------------------------------------------------------- 1.2 Resolution 1920 x 1080_60 Data will reset Press < OK > to reset 1.2 Out Width 1920 Press < OK > to reset 1.3 Out Height 1080 1.4 Out H_Start 1.5 Out V_Start 1.6 Test Pattern Setting splicing (Mosaic) 26.5.
  • Page 37 2160; 26.8. In menu the Unit width and Unit height must be as same as the actual LED screen the unit LVP615 connected; 26.9. After set these parameters of last two steps, press Brt+ or Brt- key to select setup option E.8 Auto Calculation, press OK to calculate input parameters...
  • Page 38 26.12. #2 processor E. Mosaic ( Video wall App) -------------------------------------------------------------------- E.9 In Width E.10 In Height E.11 In H_Start E.12 In V_Start E.13 Ouit Width 1920 E.14 Out Height 1080 E.15 Out H_Start E.16 Out V_Start 26.13. #3 processor E. Mosaic ( Video wall App) -------------------------------------------------------------------- E.9 In Width E.10 In Height...
  • Page 39 26.15. The principle of input parameter, setting E.8 Auto Calculation means to tell the unit LVP615 to crop how much of the input video source, and setting the H or V start means to tell the unit LVP615 to crop the input video source from where, the example as the picture below;...
  • Page 40 LED screen: LED1 1792 x 1024, LED2 1792 x 1024, LED3 1536 X 1024; 27.2. When you open LVP615’s Mosaic function to splicing very bigger LED screen, there are some conditions you need to consider: 5. Every processor must set same output resolution;...
  • Page 41 Setting output resolution 27.3. After opening processor press Setup key to enter setup menu, press Brt- to select 1.Output Image, press OK to enter output image setup; Setup Input： HDMI -------------------------------------------------------------------- In Status： 1080p >> -------------------------------------------------------------------- 1. Output Image >> Output Size：...
  • Page 42 1024; 27.8. In menu the Unit width and Unit height must be as same as the actual LED screen the unit LVP615 connected; 27.9. After set these parameters of last two steps, press Brt+ or Brt- key to select setup option E.8 Auto Calculation, press OK to calculate input parameters...
  • Page 43 automatically (the step only for #1 #2 #3 processor); 27.10. After last step press press Brt+ or Brt- key to enter input parameter setup menu ( normally for input parameters we only need to set In H_Start and In V_Start, the step only for #1 #2 #3 processor);...
  • Page 44 27.14. The principle of input parameter, setting E.8 Auto Calculation means to tell the unit LVP615 to crop how much of the input video source, and setting the H or V start means to tell the unit LVP615 to crop the input video source from where, the example as the picture below;...
  • Page 45 LED2 and the resolution of every LED screen: LED1 1920 x 1024, LED2 1920 x 1024; 28.2. When you open LVP615’s Mosaic function to splicing very bigger LED screen, there are some conditions you need to consider: 9. Every processor must set same output resolution;...
  • Page 46 Input： HDMI Setup -------------------------------------------------------------------- In Status： 1080p >> 1. Output Image -------------------------------------------------------------------- >> Output Size： 1920 x 1080 2. Input Video Signal >> Output Start： ( 0, 0 ) 3. Text Overlay >> -------------------------------------------------------------------- 4. Color & Brightness, etc. >> 5.
  • Page 47 DVI EDID resolution when PC graphic card open extended mode then connect the cable to LVP615’s DVI input port, PC will output the DVI EDID resolution, custom the resolution please refer custom output resolution 2.
  • Page 48 1024; 28.10. In menu the Unit width and Unit height must be as same as the actual LED screen the unit LVP615 connected; 28.11. After set these parameters of last two steps, press Brt+ or Brt- key to select setup option E.8 Auto Calculation, press OK to calculate input parameters...
  • Page 49 28.15. The principle of input parameter, setting E.8 Auto Calculation means to tell the unit LVP615 to crop how much of the input video source, and setting the H or V start means to tell the unit LVP615 to crop the input video source from where;...
