Summary of Contents for Vdwall LVP515

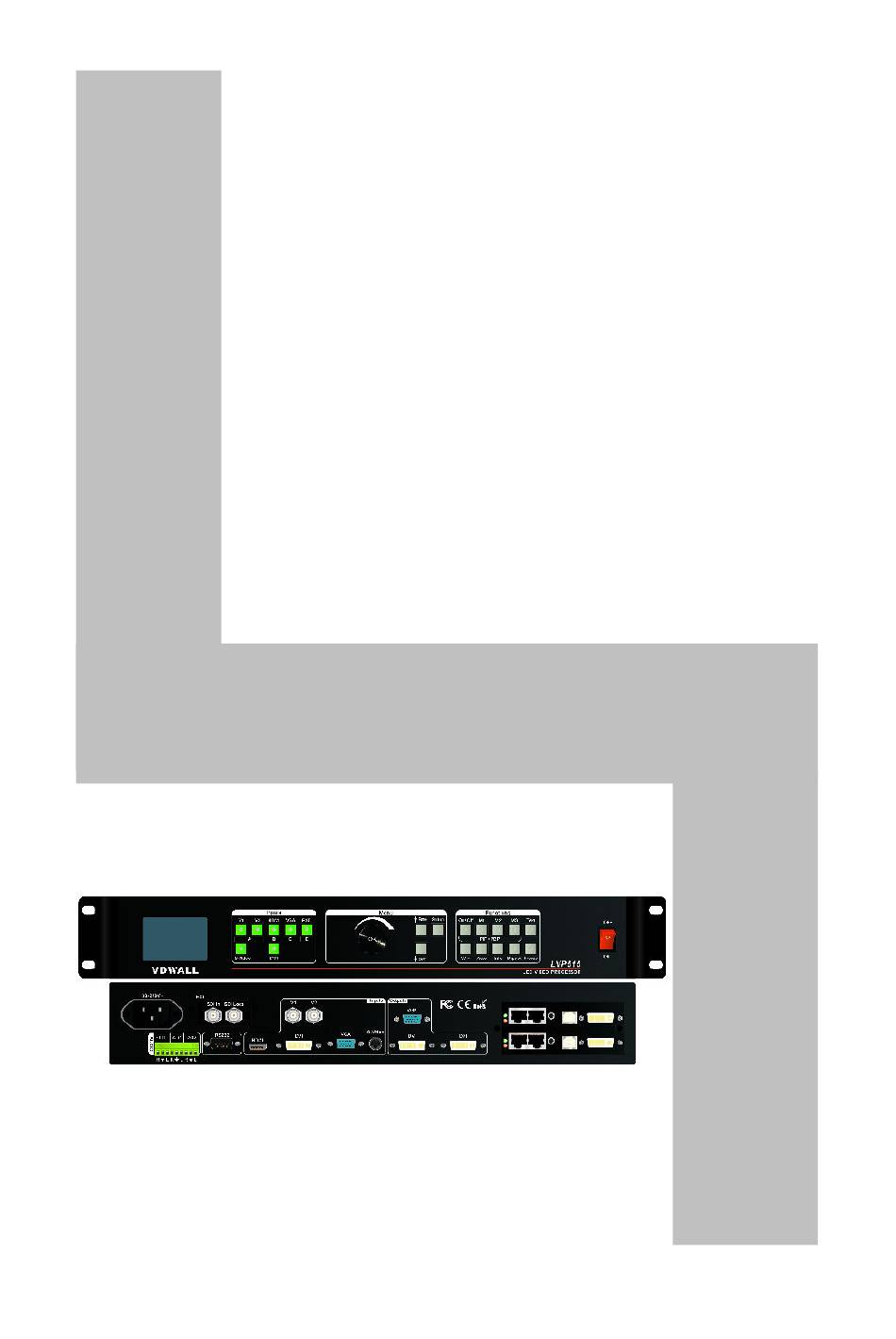

- Page 1 LVP515 LED HD VIDEO PROCESSOR USER’S MANUAL...
- Page 2 2. Output image setup DVI EDID custom 3. Text Overlay Setup 4. Brightness /Saturation/ Sharpness/NTSC Image Mode 5. Audio configurations 6. Test pattern 7. Factory district setup (II) PIP/PBP setup VI. Specifications VII．VDWALL LVP515 Control Software User’s Manual ………25 VIII．Copyright info ………………………………………………………..34...
- Page 3 LVP515 user manual I. Safety Precautions Danger! There is high voltage in the processor, to prevent any unexpected hazard, unless you are maintenance, please do not open the cover of the device. Warning! a) This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device.
- Page 4 LVP515 user manual II. Packing list Please unpack the product with care, then check whether all the following things are included in the package. If anything is found missing, please contact the dealer. Standard accessories The accessories supplied with this LED Video Processor may differ from the figures contained in the User’s Manual, but they are applicable for the regions...
- Page 5 1channel extended optional signal input （SD-SDI/HD-SDI/3G-SDI） 2） Audio Input LVP515 supports 4-channel stereo audio switch. Of which, 2 channels are HDMI and SDI audios, the other 2 channels are AD1, AD2 external input audio. AD1 and AD2 can be mapped to the any one of all video inputs, and will be switched synchronous to the selection of video input signals.
- Page 6 LVP515 user manual DVI OUT1 / 2 same DVI digital graphic signal output, DVI OUT2 it can be connected with external LED transmission card or LED transmission SDI Loop 1-channel digital video signal loop output 4） Audio Output (AUDIO OUT) Corresponds to the selected video input signal, output this channel audio input signals.
- Page 7 LVP515 user manual IV. Frontal panel operations 1. Diagram of frontal panel 1） Input selecting buttons (V1, V2, S-Video, HDMI, DVI, VGA, EXT.): They are used to select input signals 2） Brightness adjustment（Brt+，Brt-） To adjust the output image brightness of the processor.
- Page 8 LVP515 user manual 2. Button instructions (operation mode): There are 20 buttons on the frontal panel of LVP515, all these buttons will be operable after start. they have the following functions as described below: 1) Select input video source Port name Description V1、V2...
- Page 9 4) VGA input auto adjustment (Auto) When the current VGA input source of LVP515 is a valid signal, press this button, LVP515 will automatically adjust the sampling parameters of the VGA signals, so as to make VGA picture clean...
- Page 10 5) Information display (Info) Press this button to view current settings and information of LVP515, it consists of 24 items. If you press “Info” again before LVP515 exit information display, LVP515 will continue to display the next item of information.
- Page 11 Enter PIP display mode: Press On/Off button, its indicator will illuminate, LVP515 will enter PIP display mode, then use Preselect button to select PIP input signals, in the meantime, signals of background and PIP and their locations will appear on the LCD (see Figure below): Background：V1...
- Page 12 For ordinary users, unless they have received adequate technical training, they shouldn’t attempt to make the following settings! There are 2 categories available for you to set in LVP515. Technicians can set these items as necessary, for details see the table below: Category...
- Page 13 No.1 setup item. Exit setup: press “Setup” button while in setup mode, LVP515 will directly exit setup. After LVP515 enters setup mode, the knobs and 3 buttons in setup area will respectively have the functions as described in table below: Name...
- Page 14 1. Select language Item 1: “Language ” 语言 After entering setting mode, LVP515 will enter the first setting item “Language ”. LVP515 supports Chinese and English display, turn 语言 the knob to select either of them, then press the knob to save it and make it valid.
- Page 15 Then press OK to save data and Setup to save the EDID setting. Item 4~7：“output image setup” The actual definition of LED can be any value, so we should set LVP515 to make it output an image with the same definitions as that of...
- Page 16 LED Dispaly Screen 1920×1080 LVP515 Out Format = 1920 As above figure shows: the size and location of the images in LVP515 output window for the LED display are defined by the following 4 groups of parameters: Item No. Parameters Out_Hori_Width...
- Page 17 LVP515 user manual Item 8：Text overlay LVP515 allows user to set caption knock-out “< threshold” or “>threshold”. If it is less than threshold value, it means that the image of caption signal less than current color threshold value will be added to background, while the part greater than threshold will be automatically filtered.
- Page 18 (2). The color parameters only apply to V1、V2、S-Video、SDI and HDMI signals. 5. Audio configurations LVP515 supports 4-channel stereo audio switch. Of which, 2 channels are HDMI and SDI audios, the other 2 channels are AD1, AD2 external input audio. AD1 and AD2 can be mapped to the any one of all video inputs, and will be switched synchronous to the selection of video input signals.
- Page 19 LVP515 user manual LVP515 has 36 kinds test patterns inside for LED screen test. Test pattern value is 0. It is off. Value from “1～36” ，means 36 different test pattern. The current signal will be available when input outside signal. Test pattern can output image.
- Page 20 ,such as night view. LVP515 can improve problems as follow mentioned by adjusting the “ Bias”, whose limit ranging from 0 to 100. When losing the signal of dark scene, you can restore the drop-out information to the LED display by increasing the value.
- Page 21 Main _Vert_Height Main_Hori_Start PIP Window PIP_Height Main window Main_Vert_Height 1920×1080 LVP515Out Format = Main_Hori_Width 1920 Figure 5 As above figure shows: the size and location of the images in LVP515 background and PIP output window for the LED display are...
- Page 22 PIP signal.. Operating procedures: Enter PIP/PBP setup mode: while PIP/PBP mode is turned on. press “Setup” button, then press the knob, LVP515 will enter the first setup item of PIP/PBP setup mode. The information as follows will appear in LCD:...
- Page 23 LVP515 user manual VI. Specifications inputs nums/type 2×Video 1×S-Video 1×VGA（RGBHV） 1×HDMI（VESA/CEA-861） 1×DVI（VESA） 1×EXT.（SD-SDI/HD-SDI/3G-SDI） Video system PAL/NTSC composite video 1V（p_p）/ 75Ω scope/ Impedance Y：1.0V（p_p）/ 75Ω，C：0.35V（p_p）/ 75Ω S-Video scope/ Impedance VGA format PC（VESA） ≤2048x1152 _60Hz scope/ R、G、B = 0.7 V（p_p）/ 75Ω Impedance DVI format PC（VESA）...
- Page 24 LVP515 user manual 1440×900_60Hz 1536×1536_60 Hz 1600×1200_60Hz 1920×1080_50/60Hz 1920×1200_60 Hz 2048×1152_60Hz 2304×1152_60Hz 2560×816_60Hz Custom output format( horizontal pixel maximal 3840 or vertical 1920） R、G、B = 0.7 V（p_p）/ 75Ω scope/impedance Output ports VGA OUT：15pin D_Sub(female) DVI OUT1：24+5 DVI_D OUT2：24+5 DVI_D others...
- Page 25 LVP515 LED HD Video Processor can receive operating commands from VDWALL LVP515 Control Software to switch input signal source or change the brightness of output images. The LVP515 Control Software controls LVP515 LED HD Video Processor via RS232 COM serial port of...
- Page 26 LVP515 under these plans. To do so, first connect COM port of PC to RS232 port of LVP515, then run the control program VDWALL LVP515 Control Software.exe. 1. Main menu Double click the software “LVP515 Control Software.exe”, the main...
- Page 27 LVP515 user manual Manager” of control PC as shown below: The device ID you selected (from user setup item 19 “Device ID”) must be identical to the device ID of LVP515 to be controlled. Click button “Connect”, following message will appear 。...
- Page 28 LVP515 user manual Click the signal button to change the input source of LVP515. The software can display the information of current extended modules. 3) Information If an operation fails, the reason for which current operation fails will appear in the information field.
- Page 29 LVP515 user manual As shown in above figure, there are two types of plans: Cycle Plan Once Plan Cycle Plan is sub-divided into three types: Day Plan Week Plan Month Plan User can select one type he desires The plan items of Day Plan define hours, minutes, seconds;...
- Page 30 LVP515 user manual Select the plan already added, then you can modify or delete it. 5) Select functions mode This menu provides the following options: PIP, TEXT (Text Overlay), BYPASS, FREEZE, VGA-AUTO (VGA automatic adjustment). Display modes include single signal cut,single signal fade in fade out, PIP, PBP, TEXT OVERLAY.
- Page 31 LVP515 user manual “Select signal source”. If the blue indicator before the button illuminates normally, the information will be displayed in TEXT overlay mode. While in TEXT mode, click again, the system will exit TEXT mode. Bypass: when current input sources are PC signals like...
- Page 32 LVP515 user manual Other parameters setup PIP/PBP setup Ouput setup As shown in above figure, the button “Refresh” is used to update the information of currently processing parameters after parameters configuration is finished. Any abnormal of parameter will be reminded in info field.
- Page 33 LVP515 user manual The parameters of output windows should be configured to the actual pixels of the screen to be driven. 2) PIP/PBP display setup (location and size of PIP windows) This menu is used to set the three PIP/PBP display modes of LVP515.
- Page 34 IX. Copyright info The copyright of this Manual is owned by SHENZHEN VDWALL CO.,LTD., unless with prior consent of VDWALL, nobody is permitted to copy or use any part or all of the information contained herein. This Manual is provided for reference only, VDWALL reserves right to change the product appearance, dimensions and specifications from time to time without notice to users.
