- Page 1 LVP100M 使用 Description LVP100M LED HD Video Processor --- User Manual V1.0...
-
Page 2: Table Of Contents
D-1-3-1） Signal Input ...........................17 D-1-4） Brightness ..............................18 D-1-4-1） Brightness ............................. 18 D-1-5） Other .................................18 D-1-5-1） Device Initialization ........................18 D-1-5-2） Device Info ........................... 18 D-2）Preset Mode Setup .............................19 D-2-1） Preset Mode Setup ........................... 19 Appendix：Modification Record ............................20 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 3: Ⅰ Safety Precaution
8) Please immediately unplug power cord and have the device repaired, when 1. Liquid splashes to the device. 2. The device is dropped down or cabinet is damaged. 3. Obvious malpractice is found or performance degrades. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 4: Ⅱ Accessory Package
The accessories supplied with this product may differ from the following pictures, but they are applicable for the regions where you live Spare List： 、 1.5m Power Cable x 1 0.5m DVI cable x 1 1.5m HDMI cable x 1 User Manual x 1 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -

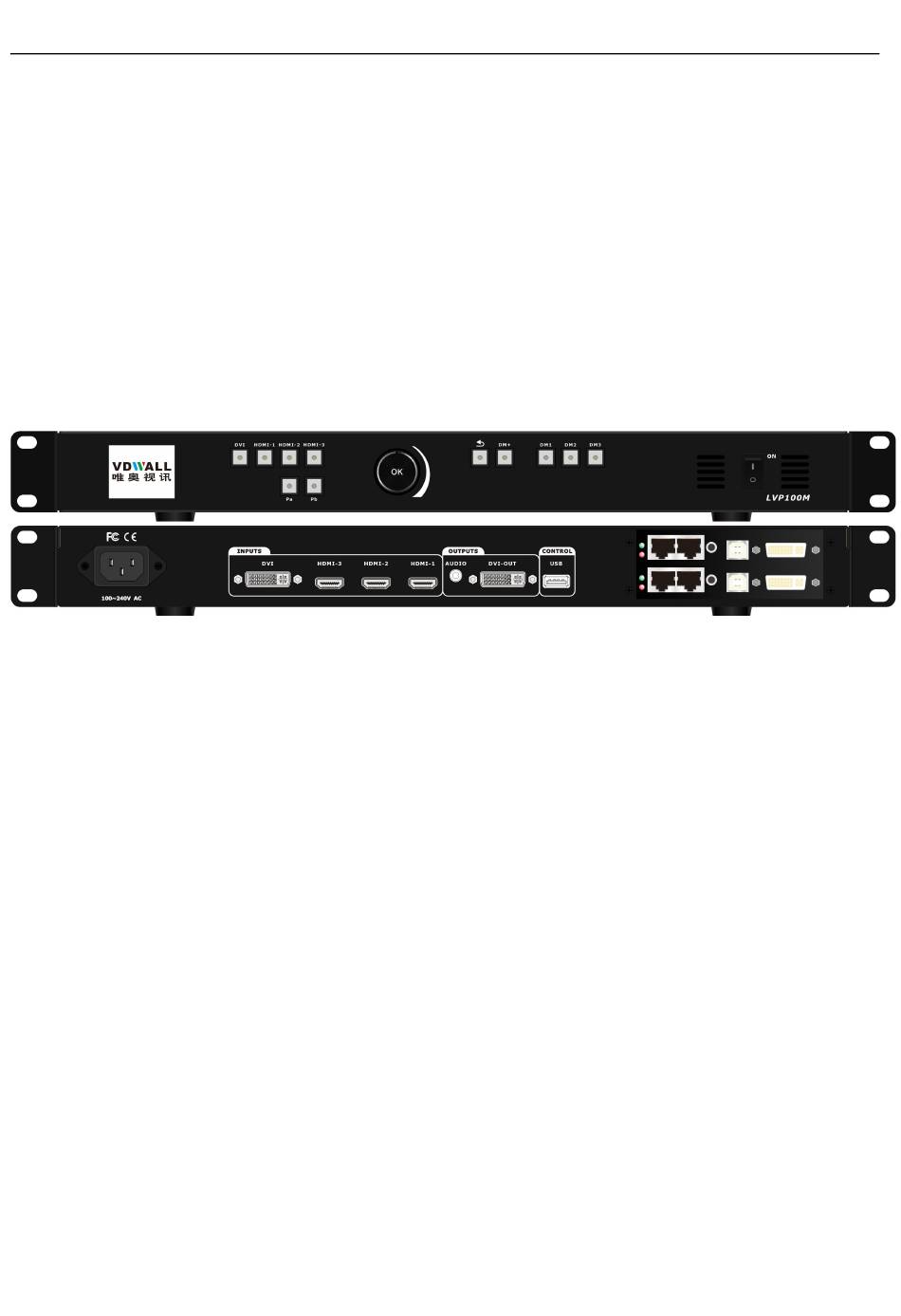

Page 5: Ⅲ Hardware And Connection
HDMI1.3 digital input（Compatible to 2K60Hz and lower signal） DVI digital input（Compatible to 2K60Hz and lower signal） C-2-2）Video Output Port LVP100M maximum driving capability is 2.65 million pixels，support 1 x DVI output，1 x dual channel stereo audio output. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 6: C-2-3）Communication And Control Port
LVP100M 使用 Description Port Description DVI OUT DVI output AUDIO Dual channel stereo audio C-2-3）Communication And Control Port Position Port Description Communication port ， establish communication Rear Panel between control software and LVP100M 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 7: Front Panel Button Description
When Pa button light on，press input signal selection button to select Pa signal source or configure PA output parameters When Pb button light on，press input signal selection button to select Pb signal source or configure Pb output parameters Enter mode selection interface Mode switch Power button 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 8: Signal Connection
3 x HDMI（VESA / CEA-861） PC（VESA Standard） HDMI ≤1920x1080@60Hz HDMI1.3（CEA-861） PC（VESA Standard） ≤1920x 1080@60Hz DVI1.3（CEA-861） DVI：24+1 DVI_D Input Port HDMI：HDMI Type A Output Signal 1x DVI Amount / Type 1x AUDIO 3296×644@60Hz DVI Format 1920×1080@60Hz 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... - Page 9 Stereo Audio DVI OUT：24+1 DVI_D Output Port AUDIO OUT：3.5mm Audio Port Other Input Voltage 100-240VAC 50/60Hz Max Consumption 0-40℃ Ambient Temperature Ambient Humidity 15-90% Dimension 482.6(L) x 200(W) x 44(H) mm Packaging 535(L)x315(W)x125(H)mm G.W：4Kg, N.W：2.5Kg Weight 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD...
-
Page 10: Installation Dimension
LVP100M 使用 Description C-6）Installation Dimension Picture 5 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 11: Ⅳ Device Operation
Output image size，Pb is only valid when PIP is ON Brightness Operations allowed in default state： 1） Input signal selection 2） Mode button operation 3） Enter main menu, rotate knob to enter input signal interface 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 12: Main Menu
>> 3) Input >> 4) Brightness >> 5) Other >> Menu Description： Main Menu Menu Item 语言/Language Language Output Resolution Output PIP On/Off Pa Output Pb Output Input Input Brightness Brightness Initialization Other Device Info 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 13: D-1-1） Language
1 DVI output port with 9 different output resolution. Under main menu, press OK button, enter menu 2.1)Output Res.，press OK button，then rotate OK button to select output resolution，the selected output resolution must be larger than LED screen physical resolution, press OK button to confirm and apply. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 14: D-1-2-2） Pip On/Off
1920×1080_60Hz 2192×952_60Hz 2656×798_60Hz 1824×1116_60Hz 1600×1270_60Hz 1392×1436_60Hz 1200×1600_60Hz 1080×1780_60Hz Menu setup as following： 2.1) Output Res. >> 1920x1080@60Hz 1920x1080@60Hz D-1-2-2） PIP On/Off 2.1) Output Res. >> 2.2) Pb 2.3) Pa output >> 2.4) Pb output >> 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 15: D-1-2-3） Pa Output
（0，0） Horizon start Output width Vertical start 始_LL Output image Output height LED screen Output Res. = 1920×1080 1920 LVP100M As illustrated above ： output image size&position is determined by following parameters： 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 16: D-1-2-4）Pb Output
Under main menu, select Output V.start to set output vertical start， value range： 0～1080， Output V.start+Output height<=1080，press OK to confirm and apply. D-1-2-4）Pb Output Under Pb output interface, press DM1、DM2、DM3 button to switch preset display mode. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 17: D-1-3） Signal Input
Under main menu, select Output V.start to set output vertical start， value range： 0～1080， Output V.start+Output height<=1080，press OK to confirm and apply. D-1-3） Signal Input D-1-3-1） Signal Input Signal input interface display input signal resolution. 3.1）Signal Input Pa Signal Input 1920x1080@60Hz Pb Signal Input 1920x1080@60Hz 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 18: D-1-4） Brightness
5.1) Other Device Ini. Device info D-1-5-2） Device Info Under main menu, select Device info to check LVP100M device information，press OK button to confirm and check. 5.1) Other Device Ini. Device info 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 19: Preset Mode Setup
Press DM+ to enter mode setup， each preset mode saves all output parameters. Processor provide 16 preset modes. Press DM+ button，enter preset mode setup，rotate OK to select target mode，press OK to confirm and apply. 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD... -
Page 20: Appendix：modification Record
LVP100M 使用 Description Appendix：Modification Record Date Description Draft V1.0 2023.11.15 First release 深圳市唯奥视讯技术有限公司 SHENZHEN VDWALL CO., LTD...
