Summary of Contents for Vdwall SC-12

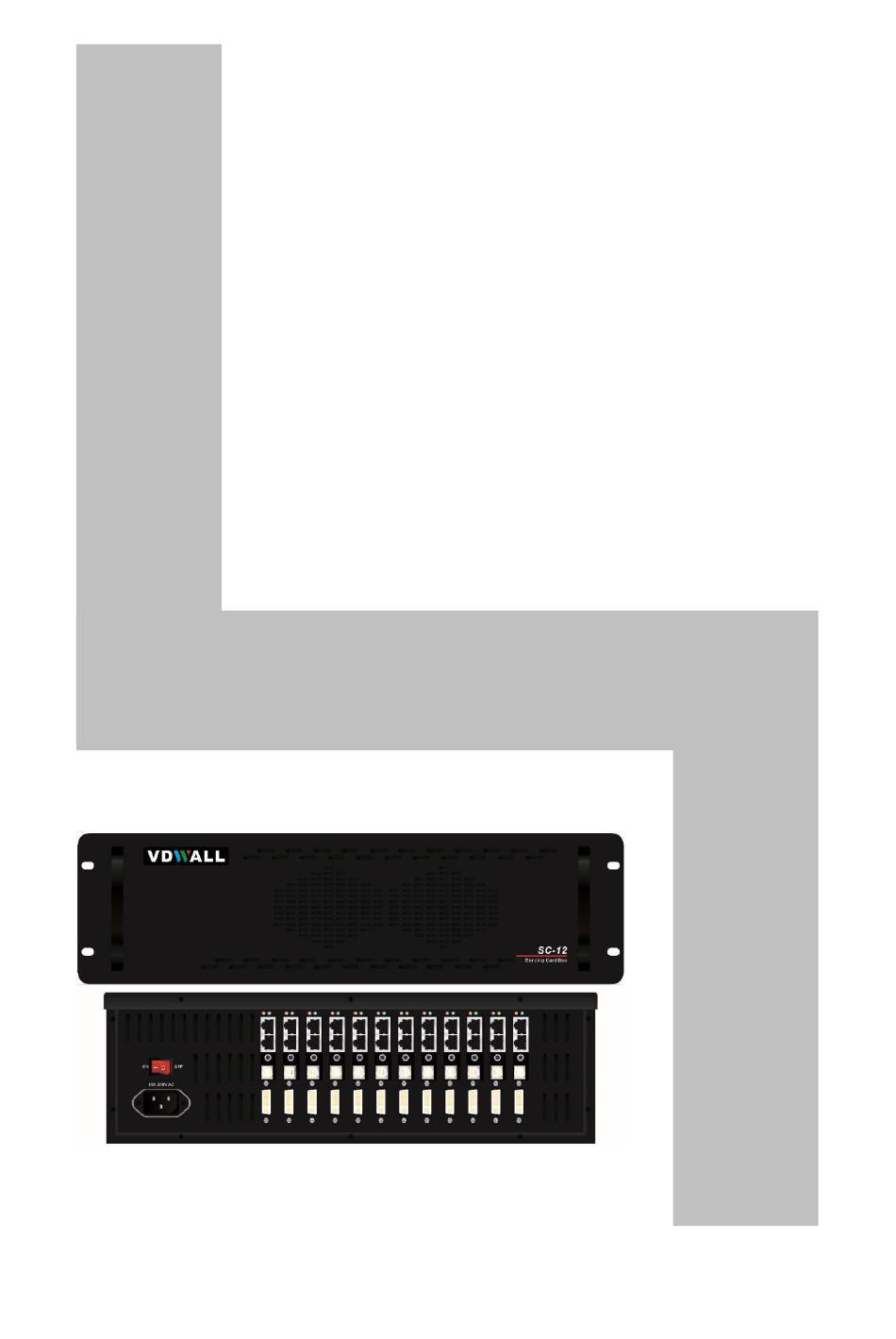

- Page 1 SC-12 Sending card box User manual...
-
Page 2: Table Of Contents
SC-12 Sending card box User manual Catalogue Chapter 1: Safety precautions ..........03 Chapter 2: Item list ..........04 Chapter 3: Product brief introduction ......05 Chapter 4: Hardware connection ........06 4-1Rear view ..........06 4-2 Application diagram ..........06 4-3 Sending card installation ........07 4-4 Specifications ............09... -
Page 3: Chapter 1: Safety Precautions
SC-12 Sending card box User manual Chapter 1: Safety precautions Danger There is high voltage in the processor, to prevent any unexpected hazard, unless you are maintenance, please do not open the cover of the device. Warning 1. This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device. -
Page 4: Chapter 2 Item List
SC-12 Sending card box User manual Please immediately unplug power cord and have the device repaired, when Liquid splashes to the device. The device is dropped down or cabinet is damaged. Obvious malpractice is found or performance degrades. Chapter 2 Item list Please unpack the product carefully, then check whether all the following things are included in the package. -
Page 5: Chapter 3 Product Brief Introduction

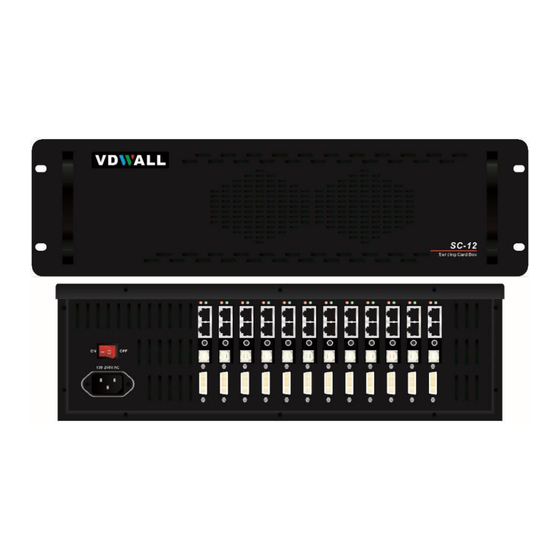

Sending card box User manual Chapter 3 Product brief introduction SC-12 is a high 3U sending card box, which including PCI or PCI-E slot internally and is compatible with different kinds of mainstream sending card. SC-12 owns high density of installation which can be installed with 12 pieces of 2 port access sending card or 6 pieces of 4 port sending card. -
Page 6: Chapter 4 Hardware Connection
SC-12 Sending card box User manual Chapter 4 Hardware connection 4-1 Rear view Image 4-1 Rear view 4-2 Application diagram... -
Page 7: Sending Card Installation
SC-12 Sending card box User manual Image 4-2 Application diagram 4-3 Sending card installation 1. Take down upper cover It requires to take down 10 pieces of screws including upper cover, lower cover and top side... - Page 8 SC-12 Sending card box User manual 2. Make sure the consistence between the label of tighten screw besides sending card bottom board and the PCI or PCI-E slot of sending card waiting for installation. If it is not, then you need to re-tighten sending card bottom board.
- Page 9 SC-12 Sending card box User manual Tighten via bolt PCI slot sending card can power supply via PCI, or it requires to connect supply cable (5V) For PCI-E slot sending card, due to the difference of PCI-E slot length, if it isn’t insert in...
-
Page 10: Specifications
SC-12 Sending card box User manual 4-4 Specifications Specifications relates to sending card 12 pieces of 2 port access sending card or 6 Sending card pieces of 4 port sending card installation quantity Supply voltage 5V DC Big 4pin（P5.08mm） Power supply mode Small 4pin（P2.54mm）... -
Page 11: Product Dimensions
SC-12 Sending card box User manual 4-5 Product dimensions Image 4-4 installation size image... -
Page 12: Appendix: Modify The Record Table
SC-12 Sending card box User manual Appendix：modify the record table Version Time Description Draft V1.0 2018.1.02 First release...
