MAX208M
WiMAX Indoor Gateway
Default Login Details
IP Address:
http://192.168.1.1
Admin's
User Name
and
Password:
Guest's User
Name and
Password:
Software Version 2.00
www.zyxel.com
Edition 1, 2/2011
www.zyxel.com
admin / 1234
guest / guest
Copyright © 2011
ZyXEL Communications Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX208M and is the answer not in the manual?

Questions and answers

Summary of Contents for ZyXEL Communications MAX208M

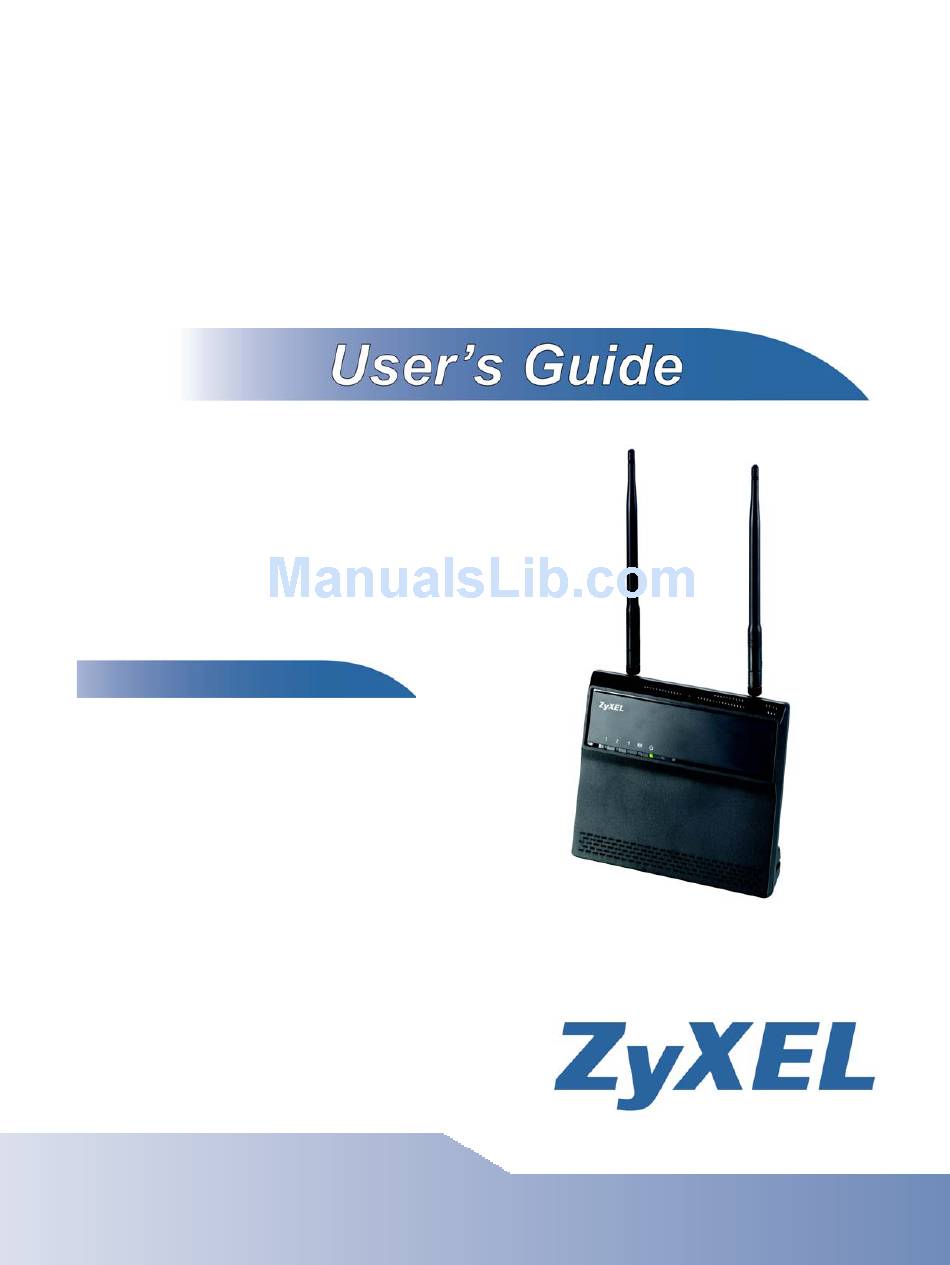

  • Page 1 MAX208M WiMAX Indoor Gateway Default Login Details IP Address: http://192.168.1.1 Admin’s admin / 1234 User Name Password: Guest’s User guest / guest Name and Password: Software Version 2.00 www.zyxel.com Edition 1, 2/2011 www.zyxel.com Copyright © 2011 ZyXEL Communications Corporation...
  • Page 3: About This User's Guide

    Please refer to www.zyxel.com for additional support documentation and product certifications. Documentation Feedback Send your comments, questions or suggestions to: techwriters@zyxel.com.tw Thank you! The Technical Writing Team, ZyXEL Communications Corp. Need More Help? More help is available at www.zyxel.com. MAX208M User’s Guide...
  • Page 4 • Product model and serial number. • Warranty Information. • Date that you received your device. • Brief description of the problem and the steps you took to solve it. MAX208M User’s Guide...
  • Page 5: Document Conventions

    For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000” or “1048576” and so on. • “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. MAX208M User’s Guide...
  • Page 6 Figures in this User’s Guide may use the following generic icons. The WiMAX Device icon is not an exact representation of your product. Table 1 Common Icons WiMAX Device Computer Wireless Signal Notebook Server Base Station Telephone Switch Router Internet Cloud Network Cloud MAX208M User’s Guide...
  • Page 7: Safety Warnings

    • Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the included antenna(s). • If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged. MAX208M User’s Guide...
  • Page 8 Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used electrical and electronic equipment should be treated separately. MAX208M User’s Guide...
  • Page 9: Table Of Contents

    The Web Configurator ....................... 21 Setup Wizard ..........................27 Tutorials ............................. 35 Technical Reference ......................51 System Status ..........................53 WiMAX ............................57 Network Settings ........................77 Security ............................ 107 Maintenance ..........................113 Troubleshooting ........................139 Product Specifications ......................145 MAX208M User’s Guide...
  • Page 10 Contents Overview MAX208M User’s Guide...
  • Page 11: Table Of Contents

    Setup Wizard ........................... 27 3.1 Overview ..........................27 3.1.1 Welcome to the Setup Wizard ..................27 3.1.2 LAN Settings ......................28 3.1.3 WiMAX Frequency Settings ..................29 3.1.4 WiMAX Authentication Settings ................. 31 3.1.5 Setup Complete ......................33 MAX208M User’s Guide...
  • Page 12 6.7 Link Status ........................... 72 6.8 Link Statistics ........................74 6.9 Connection Info ........................75 6.10 Service Flow ........................75 Chapter 7 Network Settings........................77 7.1 Overview ..........................77 7.1.1 What You Need to Know .................... 77 MAX208M User’s Guide...
  • Page 13 9.3 HTTP ..........................121 9.4 Telnet ..........................122 9.5 SSH ........................... 122 9.6 SNMP ..........................123 9.7 CWMP ..........................124 9.8 OMA-DM ..........................126 9.9 Date ........................... 128 9.10 Time Zone ........................129 9.11 Upgrade File ........................129 MAX208M User’s Guide...
  • Page 14 Appendix B Setting Up Your Computer’s IP Address ............155 Appendix C Pop-up Windows, JavaScript and Java Permissions........183 Appendix D IP Addresses and Subnetting ................193 Appendix E Importing Certificates ..................205 Appendix F Common Services..................... 237 Appendix G Legal Information....................241 Index............................245 MAX208M User’s Guide...
  • Page 15: User's Guide

    User’s Guide...
  • Page 17: Getting Started

    You can define time periods and days during which content filtering is enabled and include or exclude particular computers on your network from content filtering. For example, you could block access to certain web sites. MAX208M User’s Guide...
  • Page 18: Wimax Device Hardware

    The WiMAX Device is successfully connected to a wireless (WiMAX) network. Green (Blinking The WiMAX Device is searching for a wireless (WiMAX) Slowly) network. Green (Blinking The WiMAX Device has found a wireless (WiMAX) Quickly) network and is connecting. MAX208M User’s Guide...
  • Page 19: Good Habits For Device Management

    If you forget your password, you will have to reset the WiMAX Device to its factory default settings. If you backed up an earlier configuration file, you would not have to totally re-configure the WiMAX Device. You could simply restore your last configuration. MAX208M User’s Guide...
  • Page 20 Chapter 1 Getting Started MAX208M User’s Guide...
  • Page 21: The Web Configurator

    2.1.1 Accessing the Web Configurator Make sure your WiMAX Device hardware is properly connected (refer to the Quick Start Guide for more information). Launch your web browser. Enter "192.168.1.1" as the URL. MAX208M User’s Guide...
  • Page 22: The Reset Button

    Web Configurator for five minutes. If this happens, log in again. 2.1.2 The Reset Button If you forget your password or cannot access the Web Configurator, you will need to use the Reset button to reload the factory-default configuration file. This MAX208M User’s Guide...
  • Page 23: Saving And Canceling Changes

    Click this to restore the settings on this page to their last saved values. Note: If you make changes to a page but do not save before switching to another page or exiting the Web Configurator, those changes are disgarded. MAX208M User’s Guide...
  • Page 24: Working With Tables

    When you first log into the Web Configurator, the Main screen appears. Here you can view a summary of your WiMAX Device’s connection status. This is also the default “home” page for the Web Configurator and it contains conveniently-placed shortcuts to all of the other screens. MAX208M User’s Guide...
  • Page 25 Network Setting Click this to open the Network menu, which gives you options for configuring your network settings. Security Click this to open the Security menu, which gives you options for configuring your firewall and security settings. MAX208M User’s Guide...
  • Page 26 Use this menu to select the Web Configurator’s language. Setup Wizard Click this to open the Setup Wizard, where you can configure the most essential settings for your WiMAX Device to work. Logout Click this to log out of the Web Configurator. MAX208M User’s Guide...
  • Page 27: Setup Wizard

    Set up your WiMAX Device’s broadcast frequency, which is the radio channel it uses to communicate with the ISP’s base station. Set up your WiMAX Device’s login options, which are used to connect your LAN to the ISP’s network and verify your account. Figure 6 Setup Wizard > Welcome MAX208M User’s Guide...
  • Page 28: Lan Settings

    Select this if you want the WiMAX Device to be the DHCP server on the LAN. As a DHCP server, the WiMAX Device assigns IP addresses to DHCP clients on the LAN and provides the subnet mask and DNS server information. MAX208M User’s Guide...
  • Page 29: Wimax Frequency Settings

    3.1.3 WiMAX Frequency Settings The WiMAX Frequency Settings screen allows you to configure the broadcast radio frequency used by the WiMAX Device. Note: These settings should be provided by your ISP. Figure 8 Setup Wizard > WiMAX Frequency Settings MAX208M User’s Guide...
  • Page 30 Band End (KHz) Indicates the end of the frequency band in KHz. Total Num Displays the total number of items in the list. Back Click to display the previous screen. Next Click to proceed to the next screen. MAX208M User’s Guide...
  • Page 31: Wimax Authentication Settings

    ISP. Options are: • No authentication • User authentication • Device authentication • User and Device authentication EAP Supplication EAP Mode Select an EAP authentication mode. Anonymous Enter your anonymous ID. Note: Some modes may not require this. MAX208M User’s Guide...
  • Page 32 Enter your authentication username. Note: Some modes may not require this. Password Enter your authentication password. Note: Some modes may not require this. Back Click to display the previous screen. Next Click to proceed to the next screen. MAX208M User’s Guide...
  • Page 33: Setup Complete

    WiMAX Device features available in the more advanced web configurator. Note: If you cannot access the Internet, open the web configurator again to confirm that the Internet settings you configured in the wizard setup are correct. MAX208M User’s Guide...
  • Page 34 Chapter 3 Setup Wizard MAX208M User’s Guide...
  • Page 35: Tutorials

    Connect the WiMAX Device to the ISP’s nearest base station. See Section 6.2 on page Configure the WiMAX Device’s broadcast frequency. Section 6.3 on page Configure the WiMAX Device to connect securely to the ISP’s authentication servers. See Section 6.4 on page MAX208M User’s Guide...
  • Page 36: Configuring Lan Dhcp

    Address to 192.168.100.1. Use the default IP Subnet Mask of 255.255.255.0. Click Save. Manually change the IP address of your computer that your are using to 192.168.100.x (for example, 192.168.100.5) and keep the subnet set to 255.255.255.0. MAX208M User’s Guide...
  • Page 37 Leave the other settings as their defaults and click Save. Next, go to the Network Setting > WAN screen and select NAT in the Operation Mode field. Click Save. Connect your computers to the WiMAX Device’s Ethernet ports and you’re all set! MAX208M User’s Guide...
  • Page 38: Changing Certificate

    Supplicant section, click each Browse button and locate the security certificates that were provided by your new ISP. Configure your new Internet access settings based on the information provided by the ISP. Note: You can also use the Internet Connection Wizard to configure the Internet access settings. MAX208M User’s Guide...
  • Page 39: Blocking Web Access

    Section 7.16 on page 105. Open the Network Setting > Content Filter. Select Enable URL Filter. Select Blacklist. Click Add and configure a URL filter rule by selecting Active and entering www.example.com as the URL. Click OK. MAX208M User’s Guide...
  • Page 40: Configuring The Mac Address Filter

    IP address. 4.6 Configuring the MAC Address Filter This tutorial shows you how to use the MAC filter to block a DHCP client’s access to hosts and to the WiMAX network. MAX208M User’s Guide...
  • Page 41 MAC address in the Network Setting > LAN > DHCP screen. (192.168.100.3 mapping to 00:02:E3:53:16:95 in this example). Click Security > Firewall > MAC Filter. Select Blacklist and click the Add button in the MAC Filter Rules table. MAX208M User’s Guide...
  • Page 42: Setting Up Nat Port Forwarding

    WiMAX Device has assigned a DHCP IP address to the Xbox 360. Check the DHCP Leased Hosts table in the Network Setting > LAN > DHCP screen. Look for the IP address for the Xbox 360. MAX208M User’s Guide...
  • Page 43 NAT is selected in the Operation Mode field. Click Save. Click Network Setting > NAT > Port Forwarding and then click the first entry to edit the rule. Configure the screen as follows to open TCP/UDP port 53 for the Xbox 360. Click MAX208M User’s Guide...
  • Page 44 WiMAX Device from the Internet, he has to assign an unused port to WWW remote access. Click Maintenance > Remote MGMT. Enter an unused port in the Port field (81 in this example). Click Save. MAX208M User’s Guide...
  • Page 45: Access The Wimax Device Using Ddns

    • IP Address: Enter the WAN IP address that your WiMAX Device is currently using. You can find the IP address on the WiMAX Device’s Web Configurator Status page. Then you will need to configure the same account and host name on the WiMAX Device later. MAX208M User’s Guide...
  • Page 46: Configuring Ddns On Your Wimax Device

    In order to extend your Intranet and control traffic flowing directions, you may connect a router to the WiMAX Device’s LAN. The router may be used to separate two department networks. This tutorial shows how to configure a static routing rule for two network routings. MAX208M User’s Guide...
  • Page 47 You need to specify a static routing rule on the WiMAX Device to specify R as the router in charge of forwarding traffic to N2. In this case, the WiMAX Device routes traffic from computer A to R and then R routes the traffic to computer B. MAX208M User’s Guide...
  • Page 48 Enter 192.168.1.253 (R’s IP address on N1) in the IP Address field under Next Hop. Click Save. Now computer B should be able to receive traffic from computer A. You may need to additionally configure R’s firewall settings to accept specific traffic to pass through. MAX208M User’s Guide...
  • Page 49: Remotely Managing Your Wimax Device

    Select Enable in both HTTP Server and HTTPS Server sections and leave the Port Number settings as “80” and “443”. Select Allow Connection from WAN. This allows remote management connections not only from the local network but also the WAN network (Internet). Click Save. MAX208M User’s Guide...
  • Page 50 Chapter 4 Tutorials MAX208M User’s Guide...
  • Page 51: Technical Reference

    Technical Reference...
  • Page 53: System Status

    Use this screen to view a summary of your WiMAX Device connection status. 5.2 System Status This screen allows you to view the current status of the device, system resources, and interfaces (LAN and WAN). Click System Status to open this screen as shown next. Figure 11 System Status MAX208M User’s Guide...
  • Page 54 WiMAX Device and the base station. Network Search - The WiMAX Device is scanning for any available WiMAX connections. Disconnected - No WiMAX connection is available. Network Entry - A WiMAX connection is initializing. Normal - The WiMAX connection has successfully established. MAX208M User’s Guide...
  • Page 55 This field displays the current IP address of the WiMAX Device in the LAN. Subnet Mask This field displays the current subnet mask in the LAN. This field indicates the Maximum Transmission Unit (MTU) between the WiMAX Device and the client devices to which it is connected. MAX208M User’s Guide...
  • Page 56 Chapter 5 System Status MAX208M User’s Guide...
  • Page 57: Wimax

    (IEEE 802.16-2004, for example). The following figure shows an MS-equipped notebook computer MS1 moving from base station BS1’s coverage area and connecting to BS2. Figure 12 WiMax: Mobile Station MAX208M User’s Guide...
  • Page 58 EAP secured connection between the mobile station, the base station and the AAA server. See the WiMAX security appendix for more details. MAX208M User’s Guide...
  • Page 59 There are commercial certification authorities like CyberTrust or VeriSign and government certification authorities. You can use the WiMAX Device to generate certification requests that contain identifying information and public keys and then send the certification requests to a certification authority. MAX208M User’s Guide...
  • Page 60 (CA). Certificates (also called digital IDs) can be used to authenticate users and a CA issues certificates and guarantees the identity of each certificate owner. MAX208M User’s Guide...
  • Page 61: Connection Settings

    Make sure your base station also supports this before selecting this. Idle Mode Set the idle duration in minutes. This is how long the WiMAX Device Interval waits during periods of no activity before going into idle mode. MAX208M User’s Guide...
  • Page 62 This field displays the average Carrier to Interference plus Noise Ratio R3/R1 for the current connection. This value is an indication of overal radio signal quality, where a higher value means a better quality signal. Search Click this to have the WiMAX Device scan for base stations. MAX208M User’s Guide...
  • Page 63: Frequency Settings

    (configured in the WiMAX > Wide Scan screen) to the same table. Default Select the default bandwidth (size) per frequency band you specify in Bandwidth table A. MAX208M User’s Guide...
  • Page 64 A must be within this range. Band Start This indicates the beginning of the frequency band in kilohertz (KHz). (KHz) Band End This indicates the end of the frequency band in kilohertz (KHz). (KHz) MAX208M User’s Guide...
  • Page 65: Authentication Settings

    6.4 Authentication Settings These settings allow the WiMAX Device to establish a secure (authenticated) connection with the service provider. Click WiMAX > Profile > Authentication Settings to open this screen as shown next. Figure 19 Authentication Settings Screen MAX208M User’s Guide...
  • Page 66 This field displays information about the assigned server root CA Info certificate. Device Cert Browse for and choose a device certificate file, if required. File Device Cert This field displays information about the assigned device certificate. Info MAX208M User’s Guide...
  • Page 67 Select this to use the same EAP to the outer ID when reauthenticating. OuterID in ReAuth MAC address Adds the MAC address of the WiMAX Device to the outer ID while the in EAP-TLS EAP mode is set to EAP-TLS. outer Id MAX208M User’s Guide...
  • Page 68: Connect

    This screen allows you to view the available WiMAX frequency band(s) and base station(s) the WiMAX Device found through scanning and choose a base station to which to connect. Click WiMAX > Connect to open this screen as shown next. Figure 20 Connect Screen MAX208M User’s Guide...
  • Page 69 Search Click this to have the WiMAX Device scan for base stations in the frequency band(s) listed in the Applied Frequency Information table. Connected BS Info MAX208M User’s Guide...
  • Page 70 CINR (dB) This field displays the average Carrier to Interference plus Noise Ratio for the current connection. This value is an indication of overal radio signal quality, where a higher value means a better quality signal. MAX208M User’s Guide...
  • Page 71: Wide Scan

    Click this so save any changes to the wide scan range list. Wide Scan Result This table displays the available frequency band(s) found through the wide scan. Frequency This field displays the frequency in kilohertz (KHz). (KHz) Bandwidth This field displays the bandwidth in megahertz (MHz). (MHz) MAX208M User’s Guide...
  • Page 72: Link Status

    CINR Std Dev This field displays the average Carrier to Interference plus Noise Ratio (Std Dev) for the current connection. This value is an indication of overal radio signal quality, where a higher value means a better quality signal. MAX208M User’s Guide...
  • Page 73 WiMAX Device last restarted. Handover Fail This field displays how many times the WiMAX Device had been failed to switch its connection from one base station to another base station, since the WiMAX Device last restarted. MAX208M User’s Guide...
  • Page 74: Link Statistics

    This section provides a detailed overview of Hybrid Automatic Repeat Request link statistics. TX/RX This section provides a detailed overview of transmission and receiving link statistics. This section provides a detailed overview of Modulation and Coding Sequence (MCS) link statistics MAX208M User’s Guide...
  • Page 75: Connection Info

    Figure 25 Service Flow Screen This screen contains the following fields: Table 19 Service Flow LABEL DESCRIPTION SFID This displays a 32-bit service flow identifier. SF Status This display the service flow status. SF Direction This displays the service flow direction. MAX208M User’s Guide...
  • Page 76 Chapter 6 WiMAX MAX208M User’s Guide...
  • Page 77: Network Settings

    You can also use subnet masks to divide one network into multiple sub-networks. DHCP A DHCP (Dynamic Host Configuration Protocol) server can assign your WiMAX Device an IP address, subnet mask, DNS and other routing information when it’s turned on. MAX208M User’s Guide...
  • Page 78 • TX Only - the WiMAX Device will send out RIP packets but will not accept any RIP packets received. • None - the WiMAX Device will not send any RIP packets and will ignore any RIP packets received. MAX208M User’s Guide...
  • Page 79 IP address of 192.168.1.35 to a third (C in the example). You assign the LAN IP addresses and the ISP assigns the WAN IP address. The NAT network appears as a single host on the Internet. Figure 26 Multiple Servers Behind NAT Example MAX208M User’s Guide...
  • Page 80: Trigger Ports

    UPnP hardware is identified as an icon in the Network Connections folder (Windows XP). Each UPnP compatible device installed on your network will appear as a separate icon. Selecting the icon of a UPnP device will allow you to access the information and properties of that device. MAX208M User’s Guide...
  • Page 81 The WiMAX Device only sends UPnP multicasts to the LAN. Content Filter Internet content filtering allows you to create and enforce Internet access policies tailored to their needs. Content filtering is the ability to block certain specific URL keywords. MAX208M User’s Guide...
  • Page 82: Wan

    GRE Tunnel - Select this if you connect to the network using Point- to-Point Protocol to create VPNs. • EtherIP - Select this if you need to tunnel Ethernet and IEEE 802.3 MAC frames across an IP Internet. MAX208M User’s Guide...
  • Page 83 Server • From ISP - Select this to have the WiMAX Device acquire its DNS server address from the ISP. • User Define - Select this to manually enter the DNS server used by the WiMAX Device. MAX208M User’s Guide...
  • Page 84: Pppoe

    • MS-CHAP v1/2 -This is Microsoft’s variant of Challenge Handshake Authentication Protocol (CHAP). It allows for mutual authentication between devices. MPPE Use this option to enable or disable authentication through Microsoft Encryption Point-To-Point Encryption (MPPE) protocol. MAX208M User’s Guide...
  • Page 85: Gre

    Click Network Setting > WAN > GRE to open this screen as shown next. Figure 29 GRE Screen This screen contains the following fields: Table 22 GRE LABEL DESCRIPTION Peer IP Address Enter the IP address of the GRE peer. MAX208M User’s Guide...
  • Page 86: Etherip

    This screen contains the following fields: Table 24 IP LABEL DESCRIPTION IP address Enter the IP address of the LAN interface for the WiMAX Device. IP Subnet Mask Enter the IP subnet maks of the LAN interface for the WiMAX Device. MAX208M User’s Guide...
  • Page 87: Dhcp

    Server - This sets the WiMAX Device as a DHCP server for the LAN. • Relay - This sets the WiMAX Device as a DHCP relay for the LAN, allowing it to pass-through IP addresses assigned to LAN devices from the ISP servers. MAX208M User’s Guide...
  • Page 88: Static Route

    Click this to refresh the list. 7.8 Static Route Use these settings to create fixed paths through the network. Click Network Setting > Route > Static Route to open this screen as shown next. Figure 33 Static Route Screen MAX208M User’s Guide...
  • Page 89: Rip

    Click this to add a new static route to the list. 7.9 RIP Use these settings to configure how the WiMAX Device exchanges information with other routers. Click Network Setting > Route > RIP to open this screen as shown next. Figure 34 RIP Screen MAX208M User’s Guide...
  • Page 90: Port Forwarding

    Use these settings to forward incoming service requests to the ports on your local network. Note: Make sure you did not configure a DMZ host in the Network Setting > NAT > DMZ screen if you want to make the settings of this screen work. MAX208M User’s Guide...
  • Page 91 Click this to delete a specified rule. Wizard Click this to open the port forwarding “wizard”. Click this to add a new port forwarding rule. Click this to save any changes made to the port forwarding list. MAX208M User’s Guide...
  • Page 92: Port Forwarding Wizard

    Enter the starting port number for forwarded traffic for the port Start Port forwarding rule. Forwarding End Enter the ending port number for forwarded traffic for the port Port forwarding rule. Server IP Enter the port forwarding server IP address. MAX208M User’s Guide...
  • Page 93: Port Trigger

    End Port field. If you want to delete this rule, click the Delete icon. Open Protocol This indicates which protocol is used to open the port trigger ports. Open Port(s) MAX208M User’s Guide...
  • Page 94: Port Trigger Wizard

    Click Network Setting > NAT > Port Trigger > Wizard Figure 38 Port Trigger Wizard Screen MAX208M User’s Guide...
  • Page 95: Trigger Port Forwarding Example

    IP address. The WiMAX Device associates Jane's computer IP address with the "incoming" port range of 6970-7170. The Real Audio server responds using a port number ranging between 6970-7170. The WiMAX Device forwards the traffic to Jane’s computer IP address. MAX208M User’s Guide...
  • Page 96: Dmz

    > NAT > Port Forwarding screen. Figure 40 DMZ Screen This screen contains the following fields: Table 32 DMZ LABEL DESCRIPTION DMZ Host Enter the IP address of your network DMZ host, if you have one. 0.0.0.0 means this feature is disabled. MAX208M User’s Guide...
  • Page 97: Alg

    If you are using a custom UDP port number (not 5060) for SIP traffic, enter it here. Enable SIP ALG Check this box to add the base station ID to the outgoing SIP Set BSID messages. Select this option only if the media server forwarding calls requires this information. MAX208M User’s Guide...
  • Page 98: Upnp

    7.14.1 Installing UPnP in Windows XP Follow the steps below to install the UPnP in Windows XP. Click Start > Control Panel. Double-click Network Connections. In the Network Connections window, click Advanced in the main menu and select Optional Networking Components …. MAX208M User’s Guide...
  • Page 99 Select Networking Service in the Components selection box and click Details. In the Networking Services window, select the Universal Plug and Play check box. Click OK to go back to the Windows Optional Networking Component Wizard window and click Next. MAX208M User’s Guide...
  • Page 100 Make sure the computer is connected to a LAN port of the WiMAX Device. Turn on your computer and the WiMAX Device. Click Start and Control Panel. Double-click Network Connections. An icon displays under Internet Gateway. Right-click the icon and select Properties. MAX208M User’s Guide...
  • Page 101 You may edit or delete the port mappings or click Add to manually add port mappings. When the UPnP-enabled device is disconnected from your computer, all port mappings will be deleted automatically. MAX208M User’s Guide...
  • Page 102: Web Configurator Easy Access

    IP address of the WiMAX Device first. This becomes helpful if you do not know the IP address of the WiMAX Device. Follow the steps below to access the web configurator: Click Start and then Control Panel. Double-click Network Connections. MAX208M User’s Guide...
  • Page 103 Select My Network Places under Other Places. An icon with the description for each UPnP-enabled device displays under Local Network. Right-click on the icon for your WiMAX Device and select Invoke. The web configurator login screen displays. MAX208M User’s Guide...
  • Page 104: Ddns

    Right-click on the icon for your WiMAX Device and select Properties. A properties window displays with basic information about the WiMAX Device. 7.15 DDNS Use this page to configure the WiMAX Device as a dynamic DNS client. Click Network Setting > DDNS Figure 43 DDNS Screen MAX208M User’s Guide...
  • Page 105: Content Filter

    Use these settings to allow ("whitelist") or block ("blacklist") connections to and from specific web sites through the WiMAX Device. Click Network Setting > Content Filter to open this screen as shown next. Figure 44 Content Filter Screen MAX208M User’s Guide...
  • Page 106 Indicates the URL to be filtered according to blacklist or whitelist rules. Delete Click this to delete a specified rule. Click this to add a new filter rule. Click this to save any changes made to the list. MAX208M User’s Guide...
  • Page 107: Security

    These computers will have access to Internet services such as e-mail, FTP and the World Wide Web. However, “inbound access” is not allowed (by default) unless the remote host is authorized to use a specific service. MAX208M User’s Guide...
  • Page 108: Ip Filter

    If you want to delete this rule, click the Delete icon. Delete Click this to delete a specified rule. Click this to add a new filter rule. Click this to save any changes made to the list. MAX208M User’s Guide...
  • Page 109: Mac Filter

    Select what time each day you want the filter rule to be effective. Enter Time times in 24-hour format; for example, 3:00pm should be entered as 15:00. Click this to add a new filter rule. Click this to save any changes made to the list. MAX208M User’s Guide...
  • Page 110: Ddos

    A Local Area Network Denial (LAND) attack is a type of denial of service attack where a spoofed TCP SYN packet targets a client device’s IP address and forces it into an infinite recursive loop of querying itself and then replying, effectively locking it down. MAX208M User’s Guide...
  • Page 111 This results in the client device suffering from a buffer overflow and subsequent system crash. Prevent from Select this to ignore ping requests from the WAN. PING from WAN MAX208M User’s Guide...
  • Page 112 Chapter 8 Security MAX208M User’s Guide...
  • Page 113: Maintenance

    If it does not match, the WiMAX Device will disconnect the session immediately. There is already another remote management session with an equal or higher priority running. You may only have one remote management session running at one time. MAX208M User’s Guide...
  • Page 114: System Timeout

    WiMAX Device through the network. The WiMAX Device supports SNMP version one (SNMPv1) and version two (SNMPv2). The next figure illustrates an SNMP management operation. Note: SNMP is only available if TCP/IP is configured. MAX208M User’s Guide...
  • Page 115 ACS. The WiMAX Device can be configured to periodically check for updates from the auto-configuration server so that the end user need not be worried about it. MAX208M User’s Guide...
  • Page 116 • GetNext - Allows the manager to retrieve the next object variable from a table or list within an agent. In SNMPv1, when a manager wants to retrieve all elements of a table from an agent, it initiates a Get operation, followed by a series of GetNext operations. MAX208M User’s Guide...
  • Page 117 The WiMAX Device responds by sending back its credentials (2), to which the server responds with its credentials along with a string of management operations (3). The client responds to the management operations (4), perhaps confirming file alterations or confirming receipt of file uploads and so on. MAX208M User’s Guide...
  • Page 118 – Hash Message Authentication Code Also known as HMAC, this code relies on cryptographic hash functions to bolster an existing protocol, such as MD5. It is a method for generating a stronger, significantly higher encryption key. MAX208M User’s Guide...
  • Page 119 MAX208M User’s Guide...
  • Page 120: Password

    Select the group for which you want to change the login password. Enter the old password for the login group. Password Enter the new password for the login group. Password Retype Retype the new password for the login group. MAX208M User’s Guide...
  • Page 121: Http

    Select this to allow incoming connections from the WAN over either Connection HTTP or HTTPS. from WAN HTTP Session Timeout Session Enter the number of minutes (0-99) the WiMAX Device waits to delete Timeout an inactive web connection (HTTP or HTTPS). MAX208M User’s Guide...
  • Page 122: Telnet

    9.5 SSH Use this screen to allow remote access to the WiMAX Device from a network connection over SSH. Click Maintenance > Remote MGMT > SSH to open this screen as shown next. Figure 55 SSH Screen MAX208M User’s Guide...
  • Page 123: Snmp

    Enter the password for the incoming Get and GetNext requests from the Community management station. The default is public and allows all requests. Write Enter the password for incoming Set requests from the management Community station. The default is public and allows all requests. MAX208M User’s Guide...
  • Page 124: Cwmp

    This screen contains the following fields: Table 46 CWMP LABEL DESCRIPTION Enable Select this to enable remote management using this service. ACS Server URL Enter the URL or IP address of the auto-configuration server. Bootstrap Select this to enable bootstrap events. Enable MAX208M User’s Guide...
  • Page 125 CA Certificate This displays information about the currently active CA certificate. Info Client Click Browse to upload a client certificate to the WiMAX Device. Certificate File Client This displays information about the currently active client certificate. Certificate Info MAX208M User’s Guide...
  • Page 126: Oma-Dm

    HMAC - Server ID and Password are encoded using a keyed Hash Message Authentication Code. Server ID Enter the identification code for the server. This is used by the WiMAX Device during the communication handshake process to identify the server. MAX208M User’s Guide...
  • Page 127 OM-DM server initiates contact with it and if you selected the checkbox on this screen. Periodical Enter the time interval (in seconds) at which the WiMAX Device Client-Initiated connects to the OMA-DM server. Interval MAX208M User’s Guide...
  • Page 128: Date

    NTP (RFC 1305) - This format is similar to Time (RFC 868). Time Server Enter the IP address or URL of your time server. Check with your ISP or Address 1~4 network administrator if you are unsure of this information. MAX208M User’s Guide...
  • Page 129: Time Zone

    (Hypertext Transfer Protocol) and may take up to two minutes. After a successful upload, the system restarts. Contact your service provider for information on available firmware upgrades. Note: Only use firmware for your WiMAX Device’s specific model. MAX208M User’s Guide...
  • Page 130: The Firmware Upload Process

    After two minutes, log in again, and check your new firmware version in the Status screen. You might have to open a new browser window to log in. If the upload is not successful, you will be notified by error message. MAX208M User’s Guide...
  • Page 131: Upgrade Link

    9.13 CWMP Upgrade Use this screen to upgrade the firmware on the WiMAX Device using CWMP Request Download. Click Maintenance > Firmware Upgrade > CWMP Upgrade to open this screen as shown next. Figure 63 CWMP Upgrade Screen MAX208M User’s Guide...
  • Page 132: Backup

    Once your device is configured and functioning properly, it is highly recommended that you back up your configuration file before making configuration changes. The backup configuration file is useful if you need to return to your previous settings. MAX208M User’s Guide...
  • Page 133: Restore

    IP address of your computer to be in the same subnet as that of the default management IP address (192.168.5.1). See the Quick Start Guide or the appendices for details on how to set up your computer’s IP address. MAX208M User’s Guide...
  • Page 134: Factory Defaults

    9.17 Log Setting Use this screen to configure which type of events on the WiMAX Device are logged. Click Maintenance > Log > Log Setting to open this screen as shown next. Figure 67 Log Setting Screen MAX208M User’s Guide...
  • Page 135: Log Display

    Figure 68 Log Display Screen This screen contains the following fields: Table 57 Log Display LABEL DESCRIPTION Display Level Select the type of logs to display from this menu. Refresh Click this to refresh the logs in the display window. MAX208M User’s Guide...
  • Page 136: About

    Use this screen to perform a software restart of the WiMAX Device. You may log in again within a few minutes of using the reboot button. Click Maintenance > Reboot to open this screen as shown next. Figure 70 Reboot Screen MAX208M User’s Guide...
  • Page 137 Click this button to have the device perform a software restart. The Power LED blinks as it restarts and the shines steadily if the restart is successful. Note: Wait one minute before logging back into the WiMAX Device after a restart. MAX208M User’s Guide...
  • Page 138 Chapter 9 Maintenance MAX208M User’s Guide...
  • Page 139: Troubleshooting

    One of the LEDs does not behave as expected. Make sure you understand the normal behavior of the LED. See Section 1.2.1 on page 18 for more information. Check the hardware connections. See the Quick Start Guide. MAX208M User’s Guide...
  • Page 140: Wimax Device Access And Login

    Make sure you are using the correct IP address. • See the cover page of this guide for the default IP address. • If you changed the IP address (Section 7.6 on page 86), use the new IP address. MAX208M User’s Guide...
  • Page 141 Disconnect and re-connect the power adapter or cord to the WiMAX Device. If this does not work, you have to reset the WiMAX Device to its factory defaults. Section 10.4 on page 143. MAX208M User’s Guide...
  • Page 142: Internet Access

    WiMAX Device), but my Internet connection is not available any more. Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick Start Guide and Section 1.2.1 on page Disconnect and re-connect the power adapter to the WiMAX Device. MAX208M User’s Guide...
  • Page 143: Reset The Wimax Device To Its Factory Defaults

    WiMAX Device re-loads its default settings, and the password resets to the default (see the cover page of this guide). You have to make all of your changes again. You will lose all of your changes when you push the Reset button. To reset the WiMAX Device, MAX208M User’s Guide...
  • Page 144: Pop-Up Windows, Javascript And Java Permissions

    Web Configurator. If the WiMAX Device does not restart automatically, disconnect and reconnect the WiMAX Device’s power. Then, follow the directions above again. 10.5 Pop-up Windows, JavaScript and Java Permissions Please see Appendix C on page 183. MAX208M User’s Guide...
  • Page 145: Product Specifications

    (Power level reception, only on when connected) • LEDs 1, 2, 3 on: RSSI >= -69 dBm • LEDs 1, 2 on: RSSI: -70~-79 dBm • LED 1 on: RSSI: -80~-89 dBm • All LED’s off: no WiMAX connection MAX208M User’s Guide...
  • Page 146 Lower than 6.4dB Implementation Loss of the Receiver Receiver SNR Compliant to IEEE 802.16e-2005 section §8.4.13.1 Receiver Sensitivity The receiver minimum sensitivity level Rss, measured under the conditions defined in IEEE 802.16e-2005. Receiver Diversity Maximum Ratio Combining (MRC) MAX208M User’s Guide...
  • Page 147 With Dynamic DNS support, you can have a static hostname alias for a dynamic IP address, allowing the host to be more easily accessible from various locations on the Internet. You must register for this service with a Dynamic DNS service provider. MAX208M User’s Guide...
  • Page 148 RFC 2409 Internet Key Exchange RFC 2475 Architecture for Differentiated Services (Diffserv) RFC 2617 Hypertext Transfer Protocol (HTTP) Authentication: Basic and Digest Access Authentication RFC 2782 A DNS RR for specifying the location of services (DNS SRV) MAX208M User’s Guide...
  • Page 149 Symmetric Response Routing RFC 3611 RTP Control Protocol Extended Reports (RTCP XR)-XR RFC 3715 IP Sec/NAT Compatibility IEEE 802.3 10BASE5 10 Mbit/s (1.25 MB/s) IEEE 802.3u 100BASE-TX, 100BASE-T4, 100BASE-FX Fast Ethernet at 100 Mbit/s (12.5 MB/s) with auto-negotiation MAX208M User’s Guide...
  • Page 150 Chapter 11 Product Specifications MAX208M User’s Guide...
  • Page 151: Appendix A Wimax Security

    (secret) key. The public key is used for encryption and the private key is used for decryption. You can decrypt a message only if you have the private key. Public key certificates (or ‘digital IDs’) allow users to verify each other’s identity. MAX208M User’s Guide...
  • Page 152 Sent by the RADIUS server to indicate that it has started or stopped accounting. In order to ensure network security, the access point and the RADIUS server use a shared secret key, which is a password they both know. The key is not sent over MAX208M User’s Guide...
  • Page 153: Security Association

    This series of ‘chained’ blocks creates a message authentication code (MAC or CMAC) that ensures the encrypted data has not been tampered with. MAX208M User’s Guide...
  • Page 154 Client authentication is then done by sending username and password through the secure connection, thus client identity is protected. For client authentication, EAP-TTLS supports EAP methods and legacy authentication methods such as PAP, CHAP, MS-CHAP and MS-CHAP v2. MAX208M User’s Guide...
  • Page 155: Appendix B Setting Up Your Computer's Ip Address

    156 • Windows Vista page 159 • Mac OS X: 10.3 and 10.4 page 163 • Mac OS X: 10.5 page 167 • Linux: Ubuntu 8 (GNOME) page 170 • Linux: openSUSE 10.3 (KDE) page 176 MAX208M User’s Guide...
  • Page 156 The following example uses the default Windows XP display theme but can also apply to Windows 2000 and Windows NT. Click Start > Control Panel. Figure 71 Windows XP: Start Menu In the Control Panel, click the Network Connections icon. Figure 72 Windows XP: Control Panel MAX208M User’s Guide...
  • Page 157 Right-click Local Area Connection and then select Properties. Figure 73 Windows XP: Control Panel > Network Connections > Properties On the General tab, select Internet Protocol (TCP/IP) and then click Properties. Figure 74 Windows XP: Local Area Connection Properties MAX208M User’s Guide...
  • Page 158 In the Command Prompt window, type "ipconfig" and then press [ENTER]. You can also go to Start > Control Panel > Network Connections, right-click a network connection, click Status and then click the Support tab to view your IP address and connection information. MAX208M User’s Guide...
  • Page 159: Windows Vista

    Click Start > Control Panel. Figure 76 Windows Vista: Start Menu In the Control Panel, click the Network and Internet icon. Figure 77 Windows Vista: Control Panel Click the Network and Sharing Center icon. Figure 78 Windows Vista: Network And Internet MAX208M User’s Guide...
  • Page 160 Figure 79 Windows Vista: Network and Sharing Center Right-click Local Area Connection and then select Properties. Figure 80 Windows Vista: Network and Sharing Center Note: During this procedure, click Continue whenever Windows displays a screen saying that it needs your permission to continue. MAX208M User’s Guide...
  • Page 161 Appendix B Setting Up Your Computer’s IP Address Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties. Figure 81 Windows Vista: Local Area Connection Properties MAX208M User’s Guide...
  • Page 162 In the Command Prompt window, type "ipconfig" and then press [ENTER]. You can also go to Start > Control Panel > Network Connections, right-click a network connection, click Status and then click the Support tab to view your IP address and connection information. MAX208M User’s Guide...
  • Page 163 The screens in this section are from Mac OS X 10.4 but can also apply to 10.3. Click Apple > System Preferences. Figure 83 Mac OS X 10.4: Apple Menu In the System Preferences window, click the Network icon. Figure 84 Mac OS X 10.4: System Preferences MAX208M User’s Guide...
  • Page 164 Configure. Figure 85 Mac OS X 10.4: Network Preferences For dynamically assigned settings, select Using DHCP from the Configure IPv4 list in the TCP/IP tab. Figure 86 Mac OS X 10.4: Network Preferences > TCP/IP Tab. MAX208M User’s Guide...
  • Page 165 • In the IP Address field, type your IP address. • In the Subnet Mask field, type your subnet mask. • In the Router field, type the IP address of your device. Figure 87 Mac OS X 10.4: Network Preferences > Ethernet MAX208M User’s Guide...
  • Page 166 Click Apply Now and close the window. Check your TCP/IP properties by clicking Applications > Utilities > Network Utilities, and then selecting the appropriate Network Interface from the Info tab. Figure 88 Mac OS X 10.4: Network Utility MAX208M User’s Guide...
  • Page 167 The screens in this section are from Mac OS X 10.5. Click Apple > System Preferences. Figure 89 Mac OS X 10.5: Apple Menu In System Preferences, click the Network icon. Figure 90 Mac OS X 10.5: Systems Preferences MAX208M User’s Guide...
  • Page 168 From the Configure list, select Using DHCP for dynamically assigned settings. For statically assigned settings, do the following: • From the Configure list, select Manually. • In the IP Address field, enter your IP address. • In the Subnet Mask field, enter your subnet mask. MAX208M User’s Guide...
  • Page 169 Appendix B Setting Up Your Computer’s IP Address • In the Router field, enter the IP address of your WiMAX Device. Figure 92 Mac OS X 10.5: Network Preferences > Ethernet Click Apply and close the window. MAX208M User’s Guide...
  • Page 170 The following screens use the default Ubuntu 8 installation. Note: Make sure you are logged in as the root administrator. Follow the steps below to configure your computer IP address in GNOME: MAX208M User’s Guide...
  • Page 171 When the Network Settings window opens, click Unlock to open the Authenticate window. (By default, the Unlock button is greyed out until clicked.) You cannot make changes to your configuration unless you first enter your admin password. Figure 95 Ubuntu 8: Network Settings > Connections MAX208M User’s Guide...
  • Page 172 In the Authenticate window, enter your admin account name and password then click the Authenticate button. Figure 96 Ubuntu 8: Administrator Account Authentication In the Network Settings window, select the connection that you want to configure, then click Properties. Figure 97 Ubuntu 8: Network Settings > Connections MAX208M User’s Guide...
  • Page 173 • In the Configuration list, select Static IP address if you have a static IP address. Fill in the IP address, Subnet mask, and Gateway address fields. Click OK to save the changes and close the Properties dialog box and return to the Network Settings screen. MAX208M User’s Guide...
  • Page 174 Figure 99 Ubuntu 8: Network Settings > DNS Click the Close button to apply the changes. Verifying Settings Check your TCP/IP properties by clicking System > Administration > Network Tools, and then selecting the appropriate Network device from the Devices MAX208M User’s Guide...
  • Page 175 Appendix B Setting Up Your Computer’s IP Address tab. The Interface Statistics column shows data if your connection is working properly. Figure 100 Ubuntu 8: Network Tools MAX208M User’s Guide...
  • Page 176 Note: Make sure you are logged in as the root administrator. Follow the steps below to configure your computer IP address in the KDE: Click K Menu > Computer > Administrator Settings (YaST). Figure 101 openSUSE 10.3: K Menu > Computer Menu MAX208M User’s Guide...
  • Page 177 When the Run as Root - KDE su dialog opens, enter the admin password and click OK. Figure 102 openSUSE 10.3: K Menu > Computer Menu When the YaST Control Center window opens, select Network Devices and then click the Network Card icon. Figure 103 openSUSE 10.3: YaST Control Center MAX208M User’s Guide...
  • Page 178 Appendix B Setting Up Your Computer’s IP Address When the Network Settings window opens, click the Overview tab, select the appropriate connection Name from the list, and then click the Configure button. Figure 104 openSUSE 10.3: Network Settings MAX208M User’s Guide...
  • Page 179 Select Dynamic Address (DHCP) if you have a dynamic IP address. Select Statically assigned IP Address if you have a static IP address. Fill in the IP address, Subnet mask, and Hostname fields. Click Next to save the changes and close the Network Card Setup window. MAX208M User’s Guide...
  • Page 180 If you know your DNS server IP address(es), click the Hostname/DNS tab in Network Settings and then enter the DNS server information in the fields provided. Figure 106 openSUSE 10.3: Network Settings Click Finish to save your settings and close the window. MAX208M User’s Guide...
  • Page 181 From the Options sub-menu, select Show Connection Information. Figure 107 openSUSE 10.3: KNetwork Manager When the Connection Status - KNetwork Manager window opens, click the Statistics tab to see if your connection is working properly. Figure 108 openSUSE: Connection Status - KNetwork Manager MAX208M User’s Guide...
  • Page 182 Appendix B Setting Up Your Computer’s IP Address MAX208M User’s Guide...
  • Page 183: Appendix C Pop-Up Windows, Javascript And Java Permissions

    Disable Pop-up Blockers In Internet Explorer, select Tools, Pop-up Blocker and then select Turn Off Pop-up Blocker. Figure 109 Pop-up Blocker You can also check if pop-up blocking is disabled in the Pop-up Blocker section in the Privacy tab. MAX208M User’s Guide...
  • Page 184 Click Apply to save this setting. Enable Pop-up Blockers with Exceptions Alternatively, if you only want to allow pop-up windows from your device, see the following steps. In Internet Explorer, select Tools, Internet Options and then the Privacy tab. MAX208M User’s Guide...
  • Page 185 Select Settings…to open the Pop-up Blocker Settings screen. Figure 111 Internet Options: Privacy Type the IP address of your device (the web page that you do not want to have blocked) with the prefix “http://”. For example, http://192.168.167.1. MAX208M User’s Guide...
  • Page 186 Figure 112 Pop-up Blocker Settings Click Close to return to the Privacy screen. Click Apply to save this setting. JavaScript If pages of the web configurator do not display properly in Internet Explorer, check that JavaScript is allowed. MAX208M User’s Guide...
  • Page 187 Figure 113 Internet Options: Security Click the Custom Level... button. Scroll down to Scripting. Under Active scripting make sure that Enable is selected (the default). Under Scripting of Java applets make sure that Enable is selected (the default). MAX208M User’s Guide...
  • Page 188: Java Permissions

    Figure 114 Security Settings - Java Scripting Java Permissions From Internet Explorer, click Tools, Internet Options and then the Security tab. Click the Custom Level... button. Scroll down to Microsoft VM. Under Java permissions make sure that a safety level is selected. MAX208M User’s Guide...
  • Page 189 Click OK to close the window. Figure 115 Security Settings - Java JAVA (Sun) From Internet Explorer, click Tools, Internet Options and then the Advanced tab. Make sure that Use Java 2 for <applet> under Java (Sun) is selected. MAX208M User’s Guide...
  • Page 190 Mozilla Firefox 2.0 screens are used here. Screens for other versions may vary. You can enable Java, Javascript and pop-ups in one screen. Click Tools, then click Options in the screen that appears. Figure 117 Mozilla Firefox: TOOLS > Options MAX208M User’s Guide...
  • Page 191 Appendix C Pop-up Windows, JavaScript and Java Permissions Click Content.to show the screen below. Select the check boxes as shown in the following screen. Figure 118 Mozilla Firefox Content Security MAX208M User’s Guide...
  • Page 192 Appendix C Pop-up Windows, JavaScript and Java Permissions MAX208M User’s Guide...
  • Page 193: Appendix D Ip Addresses And Subnetting

    ). Each of these four parts is known as an octet. An octet is an eight- digit binary number (for example 11000000, which is 192 in decimal notation). Therefore, each octet has a possible range of 00000000 to 11111111 in binary, or 0 to 255 in decimal. MAX208M User’s Guide...
  • Page 194: Subnet Masks

    Table 62 IP Address Network Number and Host ID Example OCTET: OCTET: OCTET: OCTET (192) (168) IP Address (Binary) 11000000 10101000 00000001 00000010 Subnet Mask (Binary) 11111111 11111111 11111111 00000000 Network Number 11000000 10101000 00000001 Host ID 00000010 MAX208M User’s Guide...
  • Page 195 MAXIMUM NUMBER OF SUBNET MASK HOST ID SIZE HOSTS 8 bits 255.0.0.0 24 bits – 2 16777214 16 bits 255.255.0.0 16 bits – 2 65534 24 bits 255.255.255.0 8 bits – 2 29 bits 255.255.255.2 3 bits – 2 MAX208M User’s Guide...
  • Page 196 In this example, the company network address is 192.168.1.0. The first three octets of the address (192.168.1) are the network number, and the remaining octet is the host ID, allowing a maximum of 2 – 2 or 254 possible hosts. MAX208M User’s Guide...
  • Page 197 You can “borrow” one of the host ID bits to divide the network 192.168.1.0 into two separate sub-networks. The subnet mask is now 25 bits (255.255.255.128 or /25). The “borrowed” host ID bit can have a value of either 0 or 1, allowing two subnets; 192.168.1.0 /25 and 192.168.1.128 /25. MAX208M User’s Guide...
  • Page 198 Similarly, to divide a 24-bit address into four subnets, you need to “borrow” two host ID bits to give four possible combinations (00, 01, 10 and 11). The subnet mask is 26 bits (11111111.11111111.11111111.11000000) or 255.255.255.192. MAX208M User’s Guide...
  • Page 199 Lowest Host ID: 192.168.1.129 192.168.1.128 Broadcast Address: Highest Host ID: 192.168.1.190 192.168.1.191 Table 69 Subnet 4 LAST OCTET BIT IP/SUBNET MASK NETWORK NUMBER VALUE IP Address 192.168.1. IP Address (Binary) 11000000.10101000.00000001 11000000 Subnet Mask (Binary) 11111111.11111111.11111111 11000000 MAX208M User’s Guide...
  • Page 200 The following table is a summary for subnet planning on a network with a 24-bit network number. Table 71 24-bit Network Number Subnet Planning NO. “BORROWED” NO. HOSTS PER SUBNET MASK NO. SUBNETS HOST BITS SUBNET 255.255.255.128 (/25) 255.255.255.192 (/26) 255.255.255.224 (/27) 255.255.255.240 (/28) 255.255.255.248 (/29) 255.255.255.252 (/30) 255.255.255.254 (/31) MAX208M User’s Guide...
  • Page 201 Device that is easy to remember (for instance, 192.168.1.1) but make sure that no other device on your network is using that IP address. The subnet mask specifies the network number portion of an IP address. Your WiMAX Device will compute the subnet mask automatically based on the IP MAX208M User’s Guide...
  • Page 202 A has a static (or fixed) IP address that is the same as the IP address that a DHCP server assigns to computer B which is a DHCP client. Neither can access the Internet. This problem can be solved by assigning a different static IP MAX208M User’s Guide...
  • Page 203 Figure 123 Conflicting Computer IP Addresses Example Conflicting Computer and Router IP Addresses Example More than one device can not use the same IP address. In the following example, the computer and the router’s LAN port both use 192.168.1.1 as the IP address. MAX208M User’s Guide...
  • Page 204 Appendix D IP Addresses and Subnetting The computer cannot access the Internet. This problem can be solved by assigning a different IP address to the computer or the router’s LAN port. Figure 124 Conflicting Computer and Router IP Addresses Example MAX208M User’s Guide...
  • Page 205: Appendix E Importing Certificates

    In this appendix, you can import a public key certificate for: • Internet Explorer on page 206 • Firefox on page 216 • Opera on page 222 • Konqueror on page 230 MAX208M User’s Guide...
  • Page 206 If your device’s web configurator is set to use SSL certification, then the first time you browse to it you are presented with a certification error. Figure 125 Internet Explorer 7: Certification Error Click Continue to this website (not recommended). Figure 126 Internet Explorer 7: Certification Error MAX208M User’s Guide...
  • Page 207 Appendix E Importing Certificates In the Address Bar, click Certificate Error > View certificates. Figure 127 Internet Explorer 7: Certificate Error In the Certificate dialog box, click Install Certificate. Figure 128 Internet Explorer 7: Certificate MAX208M User’s Guide...
  • Page 208 Figure 129 Internet Explorer 7: Certificate Import Wizard If you want Internet Explorer to Automatically select certificate store based on the type of certificate, click Next again and then go to step 9. Figure 130 Internet Explorer 7: Certificate Import Wizard MAX208M User’s Guide...
  • Page 209 Browse. Figure 131 Internet Explorer 7: Certificate Import Wizard In the Select Certificate Store dialog box, choose a location in which to save the certificate and then click OK. Figure 132 Internet Explorer 7: Select Certificate Store MAX208M User’s Guide...
  • Page 210 Appendix E Importing Certificates In the Completing the Certificate Import Wizard screen, click Finish. Figure 133 Internet Explorer 7: Certificate Import Wizard 10 If you are presented with another Security Warning, click Yes. Figure 134 Internet Explorer 7: Security Warning MAX208M User’s Guide...
  • Page 211 12 The next time you start Internet Explorer and go to a ZyXEL web configurator page, a sealed padlock icon appears in the address bar. Click it to view the page’s Website Identification information. Figure 136 Internet Explorer 7: Website Identification MAX208M User’s Guide...
  • Page 212 Figure 137 Internet Explorer 7: Public Key Certificate File In the security warning dialog box, click Open. Figure 138 Internet Explorer 7: Open File - Security Warning Refer to steps 4-12 in the Internet Explorer procedure beginning on page 206 complete the installation process. MAX208M User’s Guide...
  • Page 213 This section shows you how to remove a public key certificate in Internet Explorer Open Internet Explorer and click TOOLS > Internet Options. Figure 139 Internet Explorer 7: Tools Menu In the Internet Options dialog box, click Content > Certificates. Figure 140 Internet Explorer 7: Internet Options MAX208M User’s Guide...
  • Page 214 Remove. Figure 141 Internet Explorer 7: Certificates In the Certificates confirmation, click Yes. Figure 142 Internet Explorer 7: Certificates In the Root Certificate Store dialog box, click Yes. Figure 143 Internet Explorer 7: Root Certificate Store MAX208M User’s Guide...
  • Page 215 Appendix E Importing Certificates The next time you go to the web site that issued the public key certificate you just removed, a certification error appears. MAX208M User’s Guide...
  • Page 216 If your device’s web configurator is set to use SSL certification, then the first time you browse to it you are presented with a certification error. Select Accept this certificate permanently and click OK. Figure 144 Firefox 2: Website Certified by an Unknown Authority MAX208M User’s Guide...
  • Page 217 The certificate is stored and you can now connect securely to the web configurator. A sealed padlock appears in the address bar, which you can click to open the Page Info > Security window to view the web page’s security information. Figure 145 Firefox 2: Page Info MAX208M User’s Guide...
  • Page 218 Open Firefox and click TOOLS > Options. Figure 146 Firefox 2: Tools Menu In the Options dialog box, click ADVANCED > Encryption > View Certificates. Figure 147 Firefox 2: Options MAX208M User’s Guide...
  • Page 219 Use the Select File dialog box to locate the certificate and then click Open. Figure 149 Firefox 2: Select File The next time you visit the web site, click the padlock in the address bar to open the Page Info > Security window to see the web page’s security information. MAX208M User’s Guide...
  • Page 220 This section shows you how to remove a public key certificate in Firefox 2. Open Firefox and click TOOLS > Options. Figure 150 Firefox 2: Tools Menu In the Options dialog box, click ADVANCED > Encryption > View Certificates. Figure 151 Firefox 2: Options MAX208M User’s Guide...
  • Page 221 In the Delete Web Site Certificates dialog box, click OK. Figure 153 Firefox 2: Delete Web Site Certificates The next time you go to the web site that issued the public key certificate you just removed, a certification error appears. MAX208M User’s Guide...
  • Page 222 If your device’s web configurator is set to use SSL certification, then the first time you browse to it you are presented with a certification error. Click Install to accept the certificate. Figure 154 Opera 9: Certificate signer not found MAX208M User’s Guide...
  • Page 223 Appendix E Importing Certificates The next time you visit the web site, click the padlock in the address bar to open the Security information window to view the web page’s security details. Figure 155 Opera 9: Security information MAX208M User’s Guide...
  • Page 224 Rather than browsing to a ZyXEL web configurator and installing a public key certificate when prompted, you can install a stand-alone certificate file if one has been issued to you. Open Opera and click TOOLS > Preferences. Figure 156 Opera 9: Tools Menu MAX208M User’s Guide...
  • Page 225 Appendix E Importing Certificates In Preferences, click ADVANCED > Security > Manage certificates. Figure 157 Opera 9: Preferences MAX208M User’s Guide...
  • Page 226 Appendix E Importing Certificates In the Certificates Manager, click Authorities > Import. Figure 158 Opera 9: Certificate manager Use the Import certificate dialog box to locate the certificate and then click Open. Figure 159 Opera 9: Import certificate MAX208M User’s Guide...
  • Page 227 Next, click OK. Figure 161 Opera 9: Install authority certificate The next time you visit the web site, click the padlock in the address bar to open the Security information window to view the web page’s security details. MAX208M User’s Guide...
  • Page 228 This section shows you how to remove a public key certificate in Opera 9. Open Opera and click TOOLS > Preferences. Figure 162 Opera 9: Tools Menu In Preferences, ADVANCED > Security > Manage certificates. Figure 163 Opera 9: Preferences MAX208M User’s Guide...
  • Page 229 The next time you go to the web site that issued the public key certificate you just removed, a certification error appears. Note: There is no confirmation when you delete a certificate authority, so be absolutely certain that you want to go through with it before clicking the button. MAX208M User’s Guide...
  • Page 230 If your device’s web configurator is set to use SSL certification, then the first time you browse to it you are presented with a certification error. Click Continue. Figure 165 Konqueror 3.5: Server Authentication Click Forever when prompted to accept the certificate. Figure 166 Konqueror 3.5: Server Authentication MAX208M User’s Guide...
  • Page 231 Appendix E Importing Certificates Click the padlock in the address bar to open the KDE SSL Information window and view the web page’s security details. Figure 167 Konqueror 3.5: KDE SSL Information MAX208M User’s Guide...
  • Page 232 Figure 168 Konqueror 3.5: Public Key Certificate File In the Certificate Import Result - Kleopatra dialog box, click OK. Figure 169 Konqueror 3.5: Certificate Import Result The public key certificate appears in the KDE certificate manager, Kleopatra. Figure 170 Konqueror 3.5: Kleopatra MAX208M User’s Guide...
  • Page 233 Appendix E Importing Certificates The next time you visit the web site, click the padlock in the address bar to open the KDE SSL Information window to view the web page’s security details. MAX208M User’s Guide...
  • Page 234 On the Peer SSL Certificates tab, select the certificate you want to delete and then click Remove. Figure 172 Konqueror 3.5: Configure The next time you go to the web site that issued the public key certificate you just removed, a certification error appears. MAX208M User’s Guide...
  • Page 235 Appendix E Importing Certificates Note: There is no confirmation when you remove a certificate authority, so be absolutely certain you want to go through with it before clicking the button. MAX208M User’s Guide...
  • Page 236 Appendix E Importing Certificates MAX208M User’s Guide...
  • Page 237: Appendix F Common Services

    Border Gateway Protocol. BOOTP_CLIENT DHCP Client. BOOTP_SERVER DHCP Server. CU-SEEME 7648 A popular videoconferencing solution from White Pines Software. 24032 TCP/UDP Domain Name Server, a service that matches web names (for example www.zyxel.com) to IP numbers. MAX208M User’s Guide...
  • Page 238 ICMP echo requests to test whether or not a remote host is reachable. POP3 Post Office Protocol version 3 lets a client computer get e-mail from a POP3 server through a temporary connection (TCP/IP or other). MAX208M User’s Guide...
  • Page 239 Access Controller Access Control System). TELNET Telnet is the login and terminal emulation protocol common on the Internet and in UNIX environments. It operates over TCP/IP networks. Its primary function is to allow users to log into remote host systems. MAX208M User’s Guide...
  • Page 240 Table 73 Commonly Used Services (continued) NAME PROTOCOL PORT(S) DESCRIPTION TFTP Trivial File Transfer Protocol is an Internet file transfer protocol similar to FTP, but uses the UDP (User Datagram Protocol) rather than TCP (Transmission Control Protocol). VDOLIVE 7000 Another videoconferencing solution. MAX208M User’s Guide...
  • Page 241: Appendix G Legal Information

    ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimers ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein.
  • Page 242 • To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 注意 ! 依據 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用 者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 MAX208M User’s Guide...
  • Page 243: Zyxel Limited Warranty

    ZyXEL. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. MAX208M User’s Guide...
  • Page 244 To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the device at http:// www.zyxel.com/web/support_warranty_info.php. Registration Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com. MAX208M User’s Guide...
  • Page 245: Index

    DHCP server diameter base station digital ID see BS 60, 151 Dynamic Host Configuration Protocol 57–58 see DHCP links 59, 60 EAP (Extensible Authentication Protocol) CBC-MAC EAP-TLS CCMP 151, 153 EAP-TTLS cell encryption certificates 151–153 MAX208M User’s Guide...
  • Page 246 RADIUS 58, 60, 152 Message Types Messages Shared Secret Key registration product related documentation Management Information Base (MIB) remote management and NAT Message Authentication Code remote management limitations MAX208M User’s Guide...
  • Page 247 Wireless Metropolitan Area Network see MAN tampering wireless network TCP/IP configuration access standard TFTP restrictions wireless security wizard setup transport encryption key see TEK transport layer security see TLS trigger port forwarding process TTLS 151, 154 tunneled TLS see TTLS MAX208M User’s Guide...
  • Page 248 Index MAX208M User’s Guide...
  • Page 249 Index MAX208M User’s Guide...
  • Page 250 Index MAX208M User’s Guide...

Table of Contents
