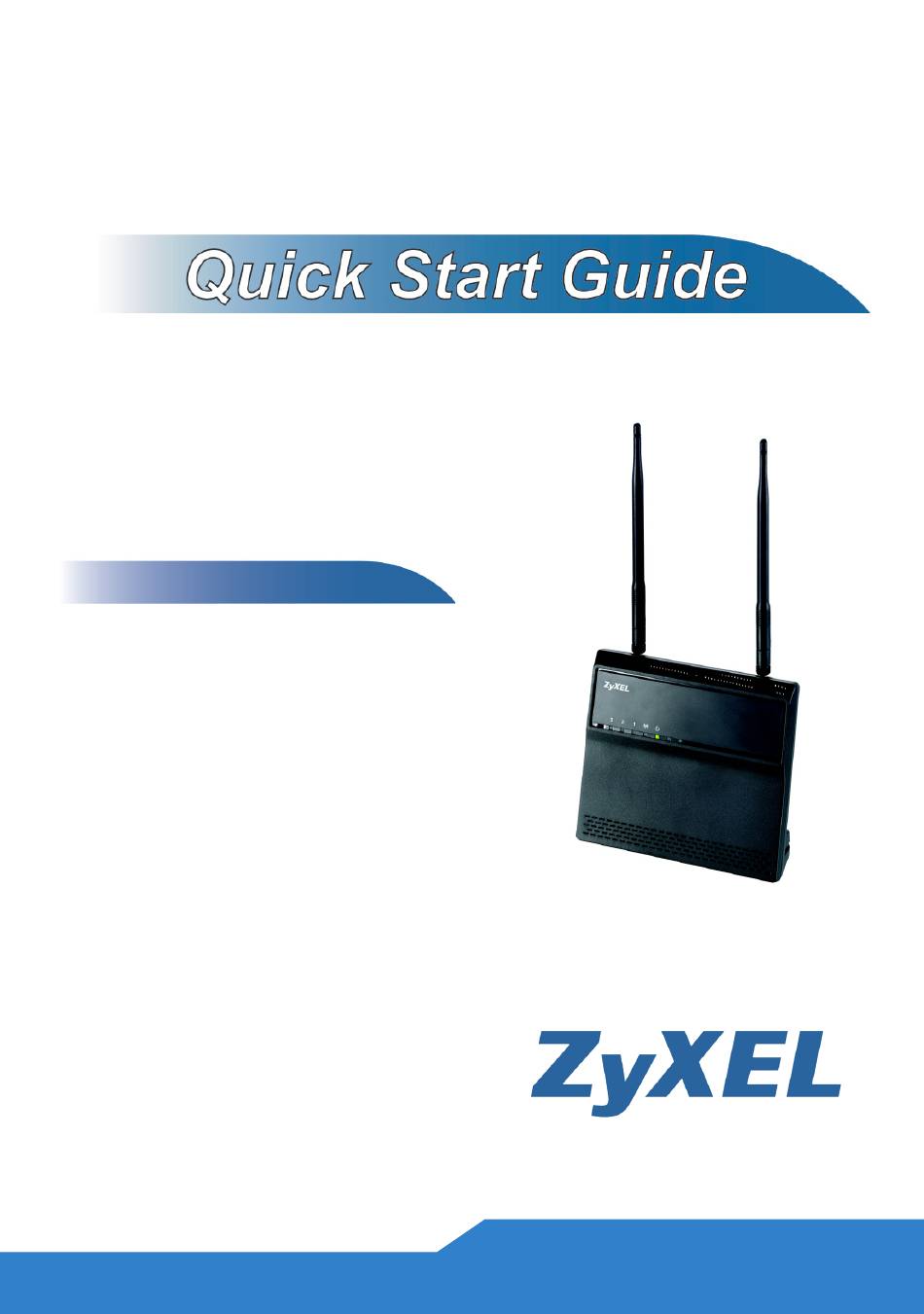

- Page 1 MAX208M WiMAX Indoor Gateway Software Version 2.00 Edition 1, 2/2011 DEFAULT LOGIN DETAILS IP Address: http://192.168.1.1 Admin’s User Name and admin / 1234 Password: Guest’s User Name and guest / guest Password: Copyright 2011 ZyXEL Communications Corporation www.zyxel.com...
-
Page 2: Leds And Ports
LEDs and Ports POWER LED STRENGTH INDICATORS WIMAX LINK LED ANTENNA LAN PORT RESET BUTTON POWER SOCKET... -
Page 3: How It Works
ENGLISH Introduction Your MAX208M lets your computer connect wirelessly to the Internet at broadband speeds. How It Works A computer connects to the MAX208M (A). The device then connects wirelessly to a WiMAX base station (B), which connects to the Internet. -
Page 4: Package Content
RJ-45 Ethernet cable to containing the User’s with the device connect a computer to the Guide and device MAX208M drivers System Requirement The computer you will use to access the device’s Web Configurator must meet the following minimum requirements: • 64 MB RAM •... -
Page 5: Setting Up Your Modem
ENGLISH Setting Up Your Modem This section shows you how to set up your WiMAX Modem. Connecting the Antennas Attach the external antennas to their connectors as follows:... -
Page 6: Hardware Connections
Internet. Once connected to the LAN, the LAN LED shines a steady green. It blinks when there is activity. Placing the MAX208M When you are placing the MAX208M, be careful of the following:... -
Page 7: Connecting To The Internet
ENGLISH • Place the MAX208M indoors in an area free of moisture and excessive humidity and/or heat. • Keep the MAX208M away from other wireless devices, cordless phones, microwave devices, or radio transmitters as they may interfere with its connections. -
Page 8: Internet Connection Setup
• If your service provider’s WiMAX login page does not appear, then you may need to manually set up the Internet connection (next section). Internet Connection Setup This section shows you how to manually configure the MAX208M’s Internet connection. 1. Open a web browser and enter http://192.168.1.1 in the address bar. - Page 9 4. When the Setup Wizard opens, review the steps you will take to configure your MAX208M then click Next to continue. Follow the wizard until all the steps are completed. The LAN and WiMAX setting required by the Setup Wizard should be given by your service providers.
- Page 10 5. LAN Settings: Configure the network settings that allow devices connected to your MAX208M to get on the Internet or connect to other network services. Then Click Next.
- Page 11 ENGLISH 6. WiMAX Frequency Settings: Configure the radio frequency on which your MAX208M sends and receives data. Then click Next. 7. WiMAX Authentication Settings: Configure how your device logs into the service provider’s network. Then click Next.
-
Page 12: Troubleshooting
• Make sure your computer has gotten an IP address (default is 192.168.1.x) in the same network as the MAX208M’s LAN. If not, you can manually configure your computer by clicking Start >... - Page 13 ENGLISH I cannot log into the Web Configurator: • Check to see if anyone else is currently logged into the WiMAX Modem. If so, you may not be able to log in until they log out first. If you’ve forgotten the WiMAX Modem’s user name, password, or IP address press and hold the Reset button for about 10 seconds.
