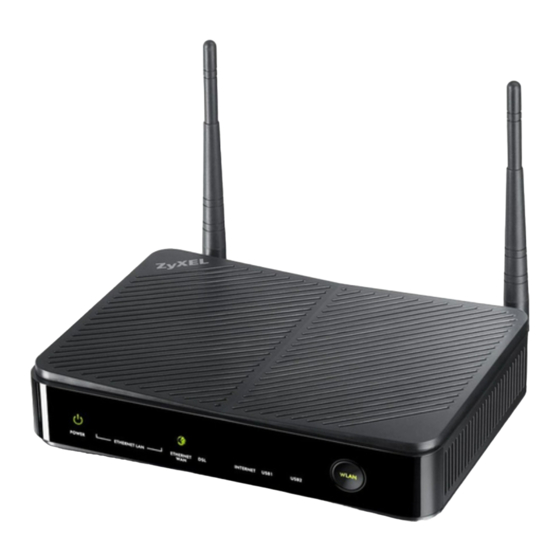

- Page 1 SBG3300-N Series Wireless N VDSL2 Combo WAN Small Business Security Gateway Firmware Version 1.00 Edition 1, 3/2013 DEFAULT LOGIN DETAILS IP Address: http://192.168.1.1 User Name: admin Password: 1234 Copyright 2013 ZyXEL Communications Corporation www.zyxel.com...
- Page 2 Device Panels ETHERNET MOBILE POWER INTERNET WLAN ETHERNET 1-4 ETHERNET 1-4 ON/OFF RESET POWER MOBILE ETHERNET...
-
Page 3: Hardware Setup
SBG3300-N Series Requirements Make sure you have the following things before you start: • INTERNET ACCESS: You need an Internet account with an ISP (Internet Service Provider) and information such as your user name, password, and so on. • WEB BROWSER: Internet Explorer 6.0 and later versions, with JavaScript enabled, or Mozilla Firefox 3 and later versions, or Safari 2.0 and later versions. - Page 4 1. Attach the antennas and point them up. 2. Do one of the following for your Internet connection: a. DSL: Use a telephone cable to connect your Device’s DSL port to a telephone jack (or the DSL or modem jack on a splitter if you have one). b.
-
Page 5: Set Up A Wireless Network
SBG3300-N Series • The DSL light is green when your Device has an ADSL connection. It is orange when you have a VDSL connection. • The WLAN light flashes green when WLAN is activated and orange while WPS is in process. It stays on green when the wireless LAN is ready and blinks when there is traffic. -
Page 6: The Web Configurator
The Web Configurator The Web Configurator is a web browser tool that allows you to configure the Device. The computer and the Device need to be in the same IP address range to use this tool. 1. Open your browser and enter http://192.168.1.1 (the Device’s default IP address) as the address. - Page 7 SBG3300-N Series 3. In the next screen, you can change the login password. This is recommended. Enter your new password in the New Password field. Re- type your new password in the second field and then click Apply. If you prefer not to change the password, leave the two fields blank and click Skip.
- Page 8 5. Click the Quick Start Wizard icon on the upper right corner of the screen. Follow the directions to configure the Device’s time zone, Internet access, and wireless settings. See your User’s Guide for how to use the rest of the Web Configurator screens. You will need to refer to the section on how to setup the Broadband connection if the INTERNET LED (light) remains off.
- Page 9 SBG3300-N Series...
- Page 10 The TCF-File is located at: Local contact for regulatory topics only : Company Name : ZyXEL Communications Corporation Company Address : Hsinchu Office : No. 2, Gongye E. 9th Rd., East Dist., Hsinchu City 300,Taiwan : No. 6, Innovation Road II, Science-Park,Hsin-Chu,300,Taiwan TAIPEI Office :11F., NO.223, SEC.
- Page 11 The TCF-File is located at: Local contact for regulatory topics only : Company Name : ZyXEL Communications Corporation Company Address : Hsinchu Office : No. 2, Gongye E. 9th Rd., East Dist., Hsinchu City 300,Taiwan : No. 6, Innovation Road II, Science-Park,Hsin-Chu,300,Taiwan TAIPEI Office :11F., NO.223, SEC.
