Fanvil i20S User Manual

Sip voice access door phone
Hide thumbs Also See for i20S:
Table of Contents

Advertisement

Quick Links

[键入文字]

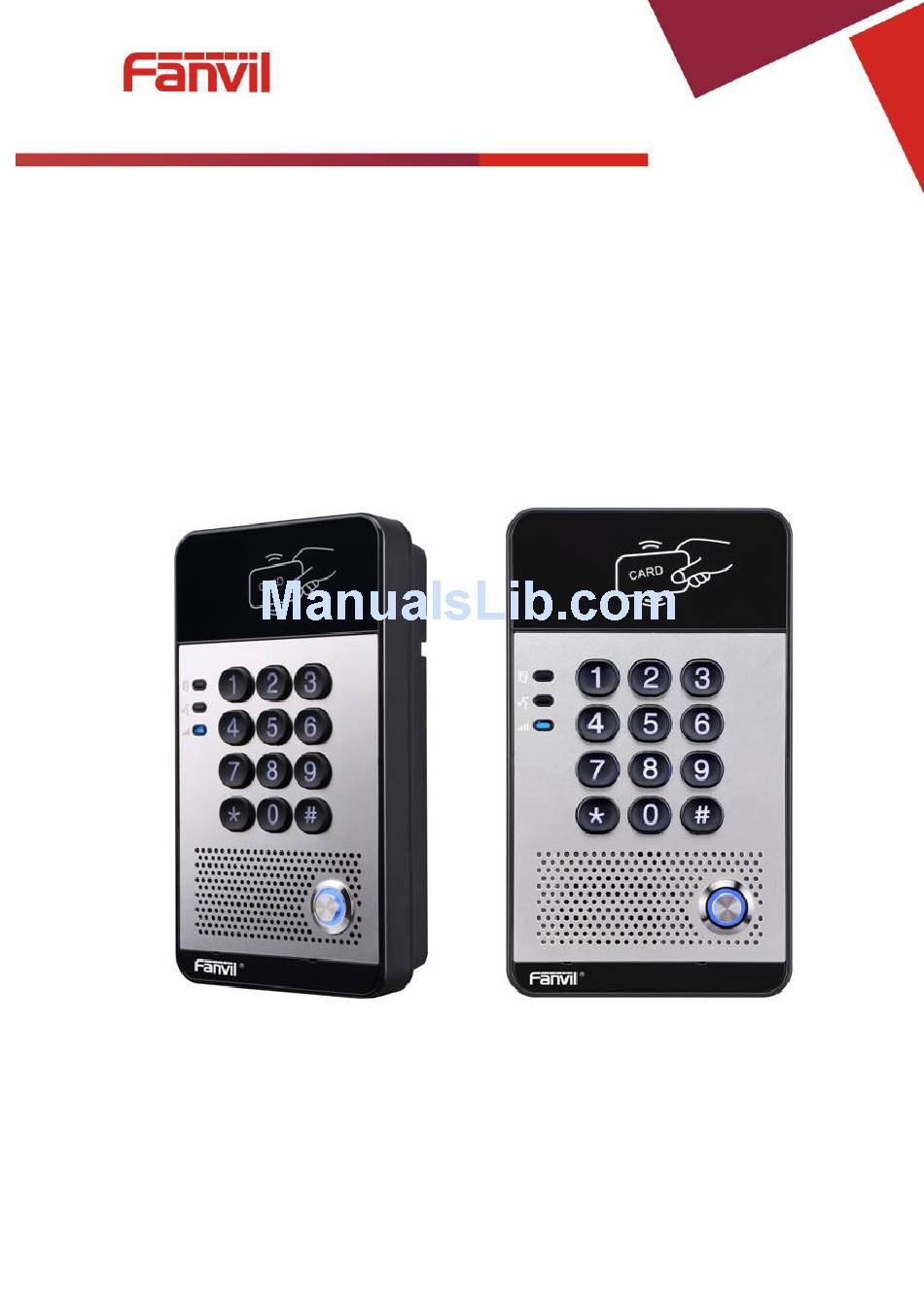

i20S SIP Voice Access
User Manual V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i20S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fanvil i20S

Summary of Contents for Fanvil i20S

  • Page 1 [键入文字] i20S SIP Voice Access User Manual V1.0...
  • Page 2 [键入文字] Document VER Firmware VER Explanation Time V1.0 2.0.0.2485 Initial issue 20160830...
  • Page 3 [键入文字] Safety Notices 1. Please use the specified power adapter. If you need to use the power adapter provided by other manufacturers under special circumstances, please make sure that the voltage and current provided is in accordance with the requirements of this product, meanwhile, please use the safety certificated products, otherwise may cause fire or get an electric shock.

  • Page 4: Table Of Contents

    [键入文字] Directory PRODUCT INTRODUCTION ........................ 6 1. A ......................6 PPEARANCE OF THE PRODUCT 2. D ............................ 6 ESCRIPTION II. START USING ............................ 7 1. C ........................7 ONFIRM THE CONNECTION 1) Power, Electric Lock, Indoor switch port ..................7 2) Driving mode of electric-lock(Default in active mode) ..............
  • Page 5 [键入文字] a) Features ..........................29 b) Audio ........................... 32 c) MCAST ..........................33 d) Action URL ........................... 36 e) Time/Date ..........................37 EGS Cards ..........................38 a) EGS Cards ..........................38 b) EGS ACCESS .......................... 40 EGS Logs ..........................41 Function Key ........................

  • Page 6: Product Introduction

    [键入文字] I. Product introduction i20S voice access is a full digital network door phone, with its core part adopts mature VoIP solution (Broadcom chip), stable and reliable performance, hands-free adopting digital full-duplex mode, voice loud and clear, generous appearance, solid durable, easy for installation, comfortable keypad and low power consumption.

  • Page 7: Start Using

    [键入文字] II. Start Using Before you start to use the equipment, please make the following installation. 1. Confirm the connection Confirm whether the equipment of the power cord, network cable, electric lock control line connection and the boot-up is normal. (Check the network state of light) 1) Power, Electric Lock, Indoor switch port Voice access the power supply ways: 12v/DC or POE.

  • Page 8: Wiring Instructions

    [键入文字] 3) Wiring instructions  NO: Normally Open Contact.  COM: Common Contact.  NC: Normally Close Contact. Driving Mode Electric lock Jumper port Connections No electricity When the Active Passive when open power to open √ √ √ √ √...

  • Page 9: Quick Setting

    [键入文字] 2. Quick Setting The product provides a complete function and parameter setting. Users may need to have the network and SIP protocol knowledge to understand the meaning represented by all parameters. In order to let equipment users enjoy the high quality of voice service and low cost advantage brought by the device immediately, here we list some basic but compulsory setting options in this section to let users know how to operate without understanding such complex SIP protocols.

  • Page 10: Call

    [键入文字] 2. Call Configure shortcut key as hot key and setup a number, then press shortcut key can call the configured number. 3. End call Enable Release key hang up to end call. 4. Open the door operation Through the following seven ways to open the door: 1) Input password on the keyboard to open the door.

  • Page 11: Page Settings

    [键入文字] IV. Page settings 1. Browser configuration When the device and your computer are successfully connected to the network, enter the IP address of the device on the browser as http://xxx.xxx.xxx.xxx/ and you can see the login interface of the web page management.

  • Page 12: Configuration Via Web

    [键入文字] 3. Configuration via WEB (1) System a) Information Information Field Name Explanation System Display equipment model, hardware version, software version, uptime, Last uptime and Information MEMinfo. Shows the configuration information for WAN port, including connection mode of WAN Network port (Static, DHCP, PPPoE), MAC address, IP address of WAN port.

  • Page 13: B) Account

    [键入文字] b) Account Through this page, user can add or remove users depends on their needs and can modify existing user permission. Account Field Name Explanation Change Web Authentication Password Can modify the login password to the account Add New User You can add new user User Accounts Show the existing user information...

  • Page 14: C) Configurations

    [键入文字] c) Configurations Configurations Field Name Explanation Export Save the equipment configuration to a txt or xml file. Please note to Right click on Configurations the choice and then choose “Save Link As.” Import Browse to the config file, and press Update to load it to the equipment. Configurations Reset to factory This will restore factory default and remove all configuration information.

  • Page 15: E) Auto Provision

    [键入文字] e) Auto Provision Auto Provision Field Name Explanation Common Settings Show the current config file’s version. If the version of configuration downloaded Current is higher than this, the configuration will be upgraded. If the endpoints confirm Configuration the configuration by the Digest method, the configuration will not be upgraded Version unless it differs from the current configuration Show the common config file’s version.
  • Page 16 [键入文字] DHCP Option The equipment supports configuration from Option 43, Option 66, or a Custom Option Value DHCP option. It may also be disabled. Custom Option Custom option number. Must be from 128 to 254. Value SIP Plug and Play (PnP) If this is enabled, the equipment will send SIP SUBSCRIBE messages to a multicast address when it boots up.

  • Page 17: F) Tools

    [键入文字] f) Tools Syslog is a protocol used to record log messages using a client/server mechanism. The Syslog server receives the messages from clients, and classifies them based on priority and type. Then these messages will be written into a log by rules which the administrator has configured. There are 8 levels of debug information.

  • Page 18: Network

    [键入文字] Reboot Phone Some configuration modifications require a reboot to become effective. Clicking the Reboot button will lead to reboot immediately. Note: Be sure to save the configuration before rebooting. (2) Network a) Basic Field Name Explanation Network Status The current IP address of the equipment Subnet mask The current Subnet Mask Default gateway...

  • Page 19: B) Advanced

    [键入文字] Primary DNS Primary DNS Enter the server address of the Server Secondary DNS Secondary DNS Enter the server address of the Server After entering the new settings, click the APPLY button. The equipment will save the new settings and apply them.
  • Page 20 [键入文字] Note: In practice, VLANs are distinguished by the use of VLAN IDs. Advanced Field Name Explanation Link Layer Discovery Protocol (LLDP) Settings Enable LLDP Enable or Disable Link Layer Discovery Protocol (LLDP) Enables the telephone to synchronize its VLAN data with the Network Enable Learning Switch.

  • Page 21: C) Vpn

    [键入文字] 802.1X Settings Enable 802.1X Enable or Disable 812.1X Username 802.1X user account Password 802.1X password HTTPS Certification File Upload or delete HTTPS Certification File c) VPN The device supports remote connection via VPN. It supports both Layer 2 Tunneling Protocol (L2TP) and OpenVPN protocol.
  • Page 22 [键入文字] Field Name Explanation VPN IP Address Shows the current VPN IP address. VPN Mode Enable VPN Enable/Disable VPN. L2TP Select Layer 2 Tunneling Protocol Select OpenVPN Protocol. (Only one protocol may be activated. After the selection OpenVPN is made, the configuration should be saved and the phone be rebooted.) Layer 2 Tunneling Protocol (L2TP) L2TP Server Set VPN L2TP Server IP address.

  • Page 23: Line

    [键入文字] (3) Line a) SIP Configure a SIP server on this page. / 50...
  • Page 24 [键入文字] Field Name Explanation Basic Settings (Choose the SIP line to configured) Display the current line status at page loading. To get the up to date line status, Line Status user has to refresh the page manually. Username Enter the username of the service account. Display name Enter the display name to be sent in a call request.
  • Page 25 [键入文字] SIP Proxy Server Port Enter the SIP proxy server port, default is 5060 Outbound proxy Enter the IP or FQDN address of outbound proxy server provided by the service address provider Outbound proxy port Enter the outbound proxy port, default is 5060 Realm Enter the SIP domain if requested by the service provider Codecs Settings...
  • Page 26 [键入文字] Enable Do-not-disturb, any incoming call to this line will be rejected Enable DND automatically Blocking Anonymous Reject any incoming call without presenting caller ID Call Use 182 Response for Set the device to use 182 response code at call waiting response Call waiting Anonymous Call Set the standard to be used for anonymous...
  • Page 27 [键入文字] Caller ID Header Set the Caller ID Header Enables the use of strict routing. When the phone receives packets from the Enable Strict Proxy server, it will use the source IP address, not the address in via field. Enable user=phone Sets user=phone in SIP messages.

  • Page 28: B) Basic Settings

    [键入文字] b) Basic Settings STUN – Simple Traversal of UDP through NAT –A STUN server allows a phone in a private network to know its public IP and port as well as the type of NAT being used. The equipment can then use this information to register itself to a SIP server so that it can make and receive calls while in a private network.

  • Page 29: Egs Setting

    [键入文字] Server Port STUN Server Port – Default is 3478. STUN blinding period – STUN packets are sent at this interval to keep the NAT Binding Period mapping active. SIP Waiting Time Waiting time for SIP. This will vary depending on the network. SIP Line Using STUN(SIP1 or SIP2) Use STUN Enable/Disable STUN on the selected line.
  • Page 30 [键入文字] Features Field Name Explanation Common Settings DND might be disabled phone for all SIP lines, or line for SIP individually. But Enable DND the outgoing calls will not be affected Ban Outgoing If enabled, no outgoing calls can be made. Enable Intercom Mute If enabled, mutes incoming calls during an intercom call.
  • Page 31 Local door unlocking password via keypad, the default password length is 4. Local password Initial Value is “6789”. Device description displayed on IP scanning tool software. Initial Value is “i20S Description IP Door Phone”. Enable Access Table: enter <Access Code> for opening door during calls.

  • Page 32: B) Audio

    [键入文字] Enable Open Log Enable or disable to connect with log server Server Enable Indoor Open Enable or disable to use indoor switch to unlock the door. Enable Card Reader Enable or disable card reader for RFID cards. Limit Talk Duration If enabled, calls would be forced ended after talking time is up.

  • Page 33: C) Mcast

    [键入文字] Fourth Codec The forth codec choice: G.711A/U, G.722, G.723.1, G.726-32, G.729AB, None DTMF Payload Type The RTP Payload type that indicates DTMF. Default is 101 Default Ring Type Ring Sound – There are 9 standard types and 3 User types. G.729AB Payload G.729AB Payload Length –...
  • Page 34 [键入文字] MCAST Settings Equipment can be set up to monitor up to 10 different multicast addresses, used to receive the multicast RTP stream sent by the multicast address. Here are the ways to change equipment receiving multicast RTP stream processing mode in the Web interface: set the ordinary priority and enable page priority.
  • Page 35 [键入文字] Listener configuration  Blue part (name) "Group 1","Group 2" and "Group 3" are your setting monitoring multicast name.The group name will be displayed on the screen when you answer the multicast. If you have not set, the screen will display the IP: port directly.

  • Page 36: D) Action Url

    [键入文字]  If multicast is a new "group of 1", because "the priority group 1" is 2, higher than the current call "priority group 2" 3, so multicast call will can come in.  If multicast is a new "group of 3", because "the priority group 3" is 4, lower than the current call "priority group 2"...

  • Page 37: E) Time/Date

    [键入文字] e) Time/Date Time/Date Field Name Explanation Network Time Server Settings Time Synchronized via Enable time-sync through SNTP protocol SNTP Time Synchronized via Enable time-sync through DHCP protocol DHCP Primary Time Server Set primary time server address Secondary Time Set secondary time server address, when primary server is not reachable, the device Server will try to connect to secondary time server to get time synchronization.

  • Page 38: Egs Cards

    [键入文字] Date Format Select the time/date display format Daylight Saving Time Settings Location Select the user's time zone specific area Select automatic DST according to the preset rules of DST, or the manually input DST Set Type rules Offset The DST offset time Month Start The DST start month Week Start...
  • Page 39 [键入文字] Door Card Table Add Door Card The input RFID card numbers the top 10, for example, 0004111806, click <add>. Click here to Save Right-click it and select save target to your Door Card Table computer. Name The name of has been issuer cards. The card number of has been issuer cards.

  • Page 40: B) Egs Access

    [键入文字] b) EGS ACCESS Field Name Explanation Import Access Table Click the <Browse> to choose to import remote access list file (access List.csv) and then click <Update> can be batch import remote access rule. Access Table According to entrance guard access rules have been added, can choose single or multiple rules on this list to delete operation.

  • Page 41: Egs Logs

    [键入文字] Access Code Select Access Code Action mode Action When enabled, private password inputting and RFID reading must be matched Double Auth simultaneously for door unlocking. Host: the door phone would answer all call automatically. Type Guest: the door phone would be ringing for incoming call, if the auto answer had been disabled.

  • Page 42: Function Key

    [键入文字] Field Name Explanation Door Open Log Result Show the results of the open the door (Success or Failed) Time Open the door of time. Duration Duration of open the door. Access Name If is the open the door for slot card or remote, will display remote access the name. 1.
  • Page 43 [键入文字]  Key Event Set the key type to the Key Event. Type Subtype Usage None Not responding Dial Dial function Key Event Release Delete password input, Cancel dial input and End calls Identify key Handfree The hand-free key(with hook dial, hang up) ...
  • Page 44 [键入文字]  Multicast Multicast function is launched will voice messages sent to set the multicast address, all equipment to monitor the group multicast address can receive sponsors speech information, etc. Using multicast functionality can be simple and convenient to send notice to each member in the multicast. Through the DSS Key configuration multicast calling WEB is as follows: Type Number...

  • Page 45: Appendix

    [键入文字] V. Appendix 1. Technical parameters Communication protocol SIP 2.0(RFC-3261) Main chipset Broadcom DSS Key 1(Stainless steel) Keys Numeric keyboard Support 1 个 Speaker 3W/4Ω Audio Volume control Adjustable Full duplex speakerphone Support (AEC) Speech Protocols flow Decoding G.729、G.723、G.711、G.722、G.726 Active Switched Output 12V/700mA DC Ports 10/100BASE-TX s Auto-MDIX, RJ-45...

  • Page 46: Basic Functions

    [键入文字] 2. Basic functions  2 SIP Lines  PoE Enabled  Full-duplex speakerphone (HF)  Numeric keypad (Dial pad or Password input)  Intelligent DSS Keys (Speed Dial/intercom etc)  Wall mounted  Integrated RFID Card reader  1 indoor switch interface ...

  • Page 47: Other Instructions

    [键入文字] VI. Other instructions 1. Open door modes  Local control 1) Local Password  Set <Local Password> (the password is "6789" by default) via DOOR PHONE\DOOR PHONE as above.  Input password via keypad and press the "#" key, then the door will be unlocked. 2) Private access code ...

  • Page 48: Management Of Card

    [键入文字] Management of card Administrator Table <Issuer> and <Revocation>  Add Administrator cards Input a card’s ID, selected <Issuer> or <Revocation> in the types and Clicked <Add>, you can add administrator card.  Delete Administrator cards Select the admin card of need to delete, click <Delete>. 2) Add user cards ...
  • Page 49 [键入文字]  In web page < EGS Setting →Features →Card Reader Working Mode > option, select <Normal>.  Click <Apply>, Card Reader would be back to the Normal status.  The issuing records can be found from the door card table list. ...
  • Page 50 [键入文字] 3) Delete user cards  Method 1: used to batch delete cards for starters.  In web page < EGS Setting →Features →Card Reader Working Mode > option, select <Card Revoking>.  Click <Apply>, Card Reader would be entered the revoking status. ...
