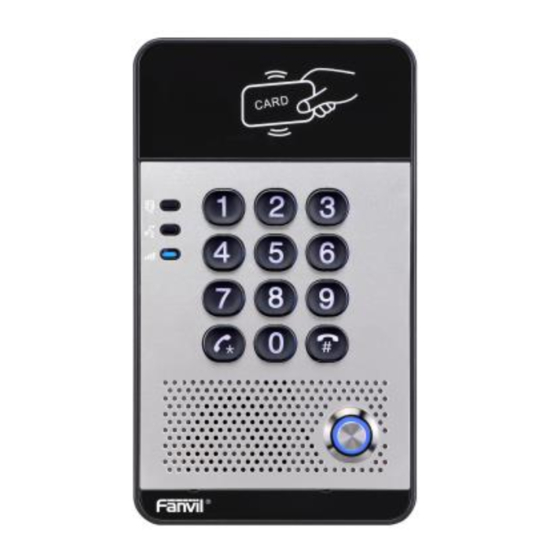

Fanvil i20S IP DoorPhone User Manual
  1. Manuals
  2. Brands
  3. Fanvil Manuals
  4. Intercom System
  5. i20S IP DoorPhone
  6. User manual

Fanvil i20S IP DoorPhone User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
[键入文字]

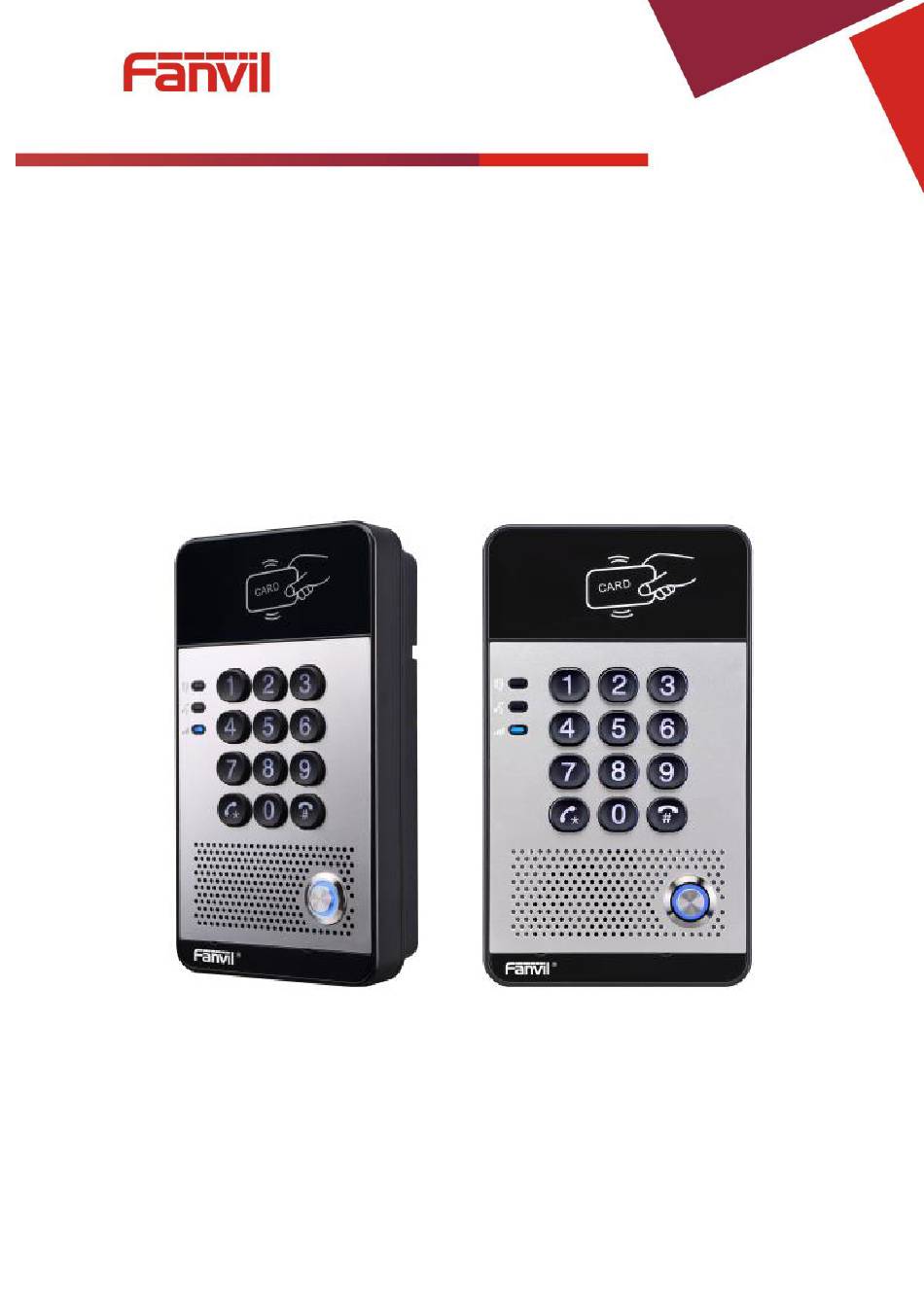

i20S IP DoorPhone
User Manual V3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i20S IP DoorPhone and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fanvil i20S IP DoorPhone

Summary of Contents for Fanvil i20S IP DoorPhone

  • Page 1 [键入文字] i20S IP DoorPhone User Manual V3.0...
  • Page 2 [键入文字] Document VER Firmware VER Explanation Time V1.0 2.0.0.2485 Initial issue 20160830 Add FDMS, video linkage function. V2.0 2.1.1.2898 20170726 Changed default in passive mode to the electric-lock. Change company address and add IP scan tool download V3.0 2.1.1.2898 20171027 address in QIG...
  • Page 3 [键入文字] Safety Notices 1. Please use the specified power adapter. If you need to use the power adapter provided by other manufacturers under special circumstances, please make sure that the voltage and current provided is in accordance with the requirements of this product, meanwhile, please use the safety certificated products, otherwise may cause fire or get an electric shock.
  • Page 4 [键入文字] FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Table Of Contents

    [键入文字] Directory I. Product introduction ..........................6 1. Appearance of the product ......................6 2. Description ............................6 II. Start Using ............................7 1. Confirm the connection ........................7 1) Power, Electric Lock, Indoor switch port ..................7 2) Driving mode of electric-lock(Default in passive mode) ..............7 3) Wiring instructions ........................
  • Page 6 [键入文字] (4) EGS Setting ..........................30 a) Features..........................30 b) Audio ............................33 c) Video ............................34 d) MCAST ............................ 35 e) Action URL ..........................38 f) Time/Date ..........................38 (5) EGS Access ..........................40 (6) EGS Logs ........................... 42 (7) Function Key ..........................

  • Page 7: Product Introduction

    [键入文字] I. Product introduction i20S voice access is a full digital network door phone, with its core part adopts mature VoIP solution (Broadcom chip), stable and reliable performance, hands-free adopting digital full-duplex mode, voice loud and clear, generous appearance, solid durable, easy for installation, comfortable keypad and low power consumption.

  • Page 8: Start Using

    [键入文字] II. Start Using Before you start to use the equipment, please make the following installation. 1. Confirm the connection Confirm whether the equipment of the power cord, network cable, electric lock control line connection and the boot-up is normal. (Check the network state of light) 1) Power, Electric Lock, Indoor switch port Voice access the power supply ways: 12v/DC or POE.

  • Page 9: Wiring Instructions

    [键入文字] 3) Wiring instructions  NO: Normally Open Contact.  COM: Common Contact.  NC: Normally Close Contact. Driving Mode Electric lock Jumper port Connections No electricity When the Active Passive when open power to open √ √ √ √ √...

  • Page 10: Quick Setting

     Press and hold “#” key for 3 seconds and the door phone will report the IP address by voice, or use the "iDoorPhoneNetworkScanner.exe" software to find the IP address of the device. (Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe  Note: when power on, 30s waiting is needed for device running.  Log on to the WEB device configuration.

  • Page 11: Basic Operation

    [键入文字] III. Basic operation 1. Answer a call When a call comes in, the device will answer automatically. If you cancel auto answer feature and set auto answer time, you will hear the bell ring at the set time and the device will auto answer after a timeout.

  • Page 12: Page Settings

    [键入文字] high-frequency short chirp. When door has been opened, the device will play sirens sound to prompt. IV. Page settings 1. Browser configuration When the device and your computer are successfully connected to the network, enter the IP address of the device on the browser as http://xxx.xxx.xxx.xxx/ and you can see the login interface of the web page management.

  • Page 13: Configuration Via Web

    [键入文字] 3. Configuration via WEB (1) System a) Information Information Field Name Explanation Display equipment model, hardware version, software version, uptime, Last System Information uptime and MEMinfo. Shows the configuration information for WAN port, including connection mode of Network WAN port (Static, DHCP, PPPoE), MAC address, IP address of WAN port. SIP Accounts Shows the phone numbers and registration status for the 2 SIP LINES.

  • Page 14: B) Account

    [键入文字] b) Account Through this page, user can add or remove users depends on their needs and can modify existing user permission. Account Field Name Explanation Change Web Authentication Password Can modify the login password to the account Add New User You can add new user User Accounts Show the existing user information...

  • Page 15: C) Configurations

    [键入文字] c) Configurations Configurations Field Name Explanation Save the equipment configuration to a txt or xml file. Please note to Right Export Configurations click on the choice and then choose “Save Link As.” Import Configurations Browse to the config file, and press Update to load it to the equipment. Reset to factory defaults This will restore factory default and remove all configuration information.

  • Page 16: E) Auto Provision

    [键入文字] e) Auto Provision Auto Provision Field Name Explanation Common Settings Show the current config file’s version. If the version of configuration downloaded is higher than this, the configuration will be upgraded. Current Configuration Version If the endpoints confirm the configuration by the Digest method, the configuration will not be upgraded unless it differs from the current configuration Show the common config file’s version.
  • Page 17 [键入文字] DHCP Option The equipment supports configuration from Option 43, Option 66, Option Value or a Custom DHCP option. It may also be disabled. Custom Option Value Custom option number. Must be from 128 to 254. SIP Plug and Play (PnP) If this is enabled, the equipment will send SIP SUBSCRIBE messages to a multicast address when it boots up.

  • Page 18: F) Fdms

    [键入文字] FDMS FDMS Settings Enable FDMS Enable/Disable FDMS configuration The time to send sip Subscribe information to the FDMS server on a regular basis. FDMS Interval Unit seconds Doorphone Info Settings Community Name The name of the community where the device is installed Building Number The name of the building where the equipment is installed Room Number...
  • Page 19 [键入文字] Syslog is a protocol used to record log messages using a client/server mechanism. The Syslog server receives the messages from clients, and classifies them based on priority and type. Then these messages will be written into a log by rules which the administrator has configured. There are 8 levels of debug information.

  • Page 20: Network

    [键入文字] (2) Network a) Basic Field Name Explanation Network Status The current IP address of the equipment Subnet mask The current Subnet Mask Default gateway The current Gateway IP address The MAC address of the equipment MAC Timestamp Get the MAC address of time. Settings Select the appropriate network mode.
  • Page 21 [键入文字] Secondary DNS Server Secondary DNS Enter the server address of the After entering the new settings, click the APPLY button. The equipment will save the new settings and apply them. If a new IP address was entered for the equipment, it must be used to login to the phone after clicking the APPLY button.

  • Page 22: B) Vpn

    [键入文字] b) VPN The device supports remote connection via VPN. It supports both Layer 2 Tunneling Protocol (L2TP) and OpenVPN protocol. This allows users at remote locations on the public network to make secure connections to local networks. / 51...

  • Page 23: Line

    [键入文字] Field Name Explanation VPN IP Address Shows the current VPN IP address. VPN Mode Enable VPN Enable/Disable VPN. L2TP Select Layer 2 Tunneling Protocol Select OpenVPN Protocol. (Only one protocol may be activated. After the OpenVPN selection is made, the configuration should be saved and the phone be rebooted.) Layer 2 Tunneling Protocol (L2TP) L2TP Server Address...
  • Page 24 [键入文字] Field Name Explanation Basic Settings (Choose the SIP line to configured) Display the current line status at page loading. To get the up to date line Line Status status, user has to refresh the page manually. / 51...
  • Page 25 [键入文字] Username Enter the username of the service account. Display name Enter the display name to be sent in a call request. Authentication Name Enter the authentication name of the service account Authentication Password Enter the authentication password of the service account Activate Whether the service of the line should be activated SIP Proxy Server Address...
  • Page 26 [键入文字] Voice Message Subscribe Set the interval of voice message notification subscription Period Enable hotline configuration, the device will dial to the specific number Enable Hotline immediately at audio channel opened by off-hook handset or turn on hands-free speaker or headphone Hotline Number Set the hotline dialing number Enable Do-not-disturb, any incoming call to this line will be rejected...
  • Page 27 [键入文字] DTMF SIP INFO Mode Set the SIP INFO mode to send ‘*’ and ‘#’ or ‘10’ and ‘11’ Transportation Protocol Set the line to use TCP or UDP for SIP transmission SIP Version Set the SIP version Caller ID Header Set the Caller ID Header Enables the use of strict routing.

  • Page 28: B) Basic Settings

    [键入文字] b) Basic Settings STUN – Simple Traversal of UDP through NAT –A STUN server allows a phone in a private network to know its public IP and port as well as the type of NAT being used. The equipment can then use this information to register itself to a SIP server so that it can make and receive calls while in a private network.

  • Page 29: C) Dial Peer

    [键入文字] Enable Strict UA Match Enable or disable Strict UA Match STUN Settings Server Address STUN Server IP address Server Port STUN Server Port – Default is 3478. STUN blinding period – STUN packets are sent at this interval to Binding Period keep the NAT mapping active.
  • Page 30 [键入文字] Make a call. Configuration prefix matching needs to be followed by a prefix number to match the exact match number; the longest support of 30 bits; also supports the use of x format and range of numbers. Configure the destination address and, if configured as a point-to-point call, write the peer IP address directly.

  • Page 31: Egs Setting

    [键入文字] (4) EGS Setting a) Features Features Field Name Explanation Common Settings Monostable: there is only one fixed action status for door unlocking. Bistable: there are two actions and statuses, door unlocking and door Switch Mode locking. Each action might be triggered and changed to the other status.
  • Page 32 [键入文字] Enable Card Reader Enable or disable card reader for RFID cards. Set ID card stats: Normal: This is the work mode, after the slot card can to open the door. Card Reader Working Mode Card Issuing: This is the issuing mode, after the slot card can to add ID cards.
  • Page 33 [键入文字] Enable Intercom Ringing If enabled, plays intercom ring tone to alert to an intercom call. Enable Auto Dial Out Enable Auto Dial Out Auto Dial Out Time Set Auto Dial Out Time Enable Auto Answer Enable Auto Answer function Auto Answer Timeout Set Auto Answer Timeout No Answer Auto Hangup...

  • Page 34: B) Audio

    [键入文字] b) Audio This page configures audio parameters such as voice codec, speak volume, mic volume and ringer volume. Audio Setting Field Name Explanation The first codec choice: G.711A/U, G.722, G.723.1, G.726-32, First Codec G.729AB The second codec choice: G.711A/U, G.722, G.723.1, G.726-32, Second Codec G.729AB, None The third codec choice: G.711A/U, G.722, G.723.1, G.726-32,...

  • Page 35: C) Video

    [键入文字] Broadcast Output Volume Set the broadcast the output volume level. Signal Tone Volume Set the audio signal the output volume level. Enable or disable Voice Activity Detection (VAD). If VAD is enabled, Enable VAD G729 Payload length cannot be set greater than 20 mSec. c) Video Connection mode Select external, click [Apply], restart the device...

  • Page 36: D) Mcast

    [键入文字] d) MCAST It is easy and convenient to use multicast function to send notice to each member of the multicast via setting the multicast key on the device and sending multicast RTP stream to pre-configured multicast address. By configuring monitoring multicast address on the device, monitor and play the RTP stream which sent by the multicast address.
  • Page 37 [键入文字] when it is in multicast session currently. When Page priority switch is enabled, the device will automatically ignore the low priority multicast RTP stream but receive top-level priority multicast RTP stream, and keep the current multicast session in state; If it is not enabled, the device will automatically ignore all receiving multicast RTP stream.
  • Page 38 [键入文字]  All equipment has one or more common non multicast communication.  When you set the Priority for the disable, multicast any level will not answer, multicast call is rejected.  when you set the Priority to a value, only higher than the priority of multicast can come in, if you set the Priority is 3, group 2 and group 3 for priority level equal to 3 and less than 3 were rejected, 1 priority is 2 higher than ordinary call priority device can answer the multicast message at the same time, keep the hold the other call.

  • Page 39: E) Action Url

    [键入文字] e) Action URL Action URL Event Settings URL for various actions performed by the phone. These actions are recorded and sent as xml files to the server. Sample format is http://InternalServer /FileName.xml f) Time/Date / 51...
  • Page 40 [键入文字] Time/Date Field Name Explanation Network Time Server Settings Time Synchronized via Enable time-sync through SNTP protocol SNTP Time Synchronized via Enable time-sync through DHCP protocol DHCP Primary Time Server Set primary time server address Set secondary time server address, when primary server is not reachable, the Secondary Time Server device will try to connect to secondary time server to get time synchronization.

  • Page 41: Egs Access

    [键入文字] Week End The DST end week Weekday End The DST end weekday Hour End The DST end hour Manual Time Settings The time set by hand, need to disable SNTP service first. (5) EGS Access EGS Access Field Name Explanation Import Access Table Click the <Browse>...
  • Page 42 [键入文字] Access Table According to entrance guard access rules have been added, you can choose single or multiple rules on this list to delete operation. Add Access Rule Name(necessary) User name Virtual extension number, used to make position call instead of real number. Location It might be taken with unit number, or room number.

  • Page 43: Egs Logs

    [键入文字] issuing state, and then you can swipe a new card, which the card would be added into the database; when you swipe the issuing card again after cards added done, entrance guard would return to normal state. Delete card operation is the same with issuing card. The device can support up to 10 admin cards, 1000 copies of ordinary cards.

  • Page 44: Function Key

    [键入文字] (7) Function Key  Key Event Set the key type to the Key Event. Type Subtype Usage None No responding Dial Dialing function Key Event Release Delete password input, cancel dialing input and end call identification key  Hot Key Enter the phone number in the input box, when you press the shortcut key, equipment will dial set telephone number.
  • Page 45 [键入文字] Type Number Line Subtype Usage Using Speed Dial mode together with Fill the , can define The SIP Speed Dial whether this call is allowed to be hung up by called account Hot Key party’s SIP re-pressing the speed dial key. correspondi account or In Intercom mode, if the caller’s IP phone...

  • Page 46: Appendix

    [键入文字] V. Appendix 1. Technical parameters Communication protocol SIP 2.0(RFC-3261) Main chipset Broadcom DSS Key 1(Stainless steel) Keys Numeric keyboard Support Speaker 3W/4Ω Audio Volume control Adjustable Full duplex speakerphone Support (AEC) Speech Protocols flow Decoding G.729、G.723、G.711、G.722、G.726 Active Switched Output 12V/700mA DC Ports 10/100BASE-TX s Auto-MDIX, RJ-45...

  • Page 47: Basic Functions

    [键入文字] 2. Basic functions  2 SIP Lines  PoE Enabled  Full-duplex speakerphone (HF)  Numeric keypad (Dial pad or Password input)  Intelligent DSS Keys (Speed Dial/intercom etc)  Wall-mounting  Integrated RFID Card reader  1 indoor switch interface ...

  • Page 48: Other Instructions

    [键入文字] VI. Other instructions 1. Open door modes  Local control 1) Local Password  Set <Local Password> (the password is "6789" by default) via DOOR PHONE\DOOR PHONE as above.  Input password via keypad and press the "#" key, then the door will be unlocked. 2) Private access code ...
  • Page 49 [键入文字]  Add Administrator cards Input a card’s ID, selected <Issuer> or <Revocation> in the types and Clicked <Add>, you can add administrator card.  Delete Administrator cards Select the admin card of need to delete, click <Delete>. 2) Add user cards ...
  • Page 50 [键入文字]  Click <Apply>, Card Reader would be back to the Normal status.  The issuing records can be found from the door card table list.  Methods 2: used to add cards for professionals  Use <Issuer admin card> to touch card reader induction area, and it would be entered issuing card status.
  • Page 51 [键入文字] 3) Delete user cards  Method 1: used to batch delete cards for starters.  In web page < EGS Setting →Features →Card Reader Working Mode > option, select <Card Revoking>.  Click <Apply>, Card Reader would be entered the revoking status. ...
