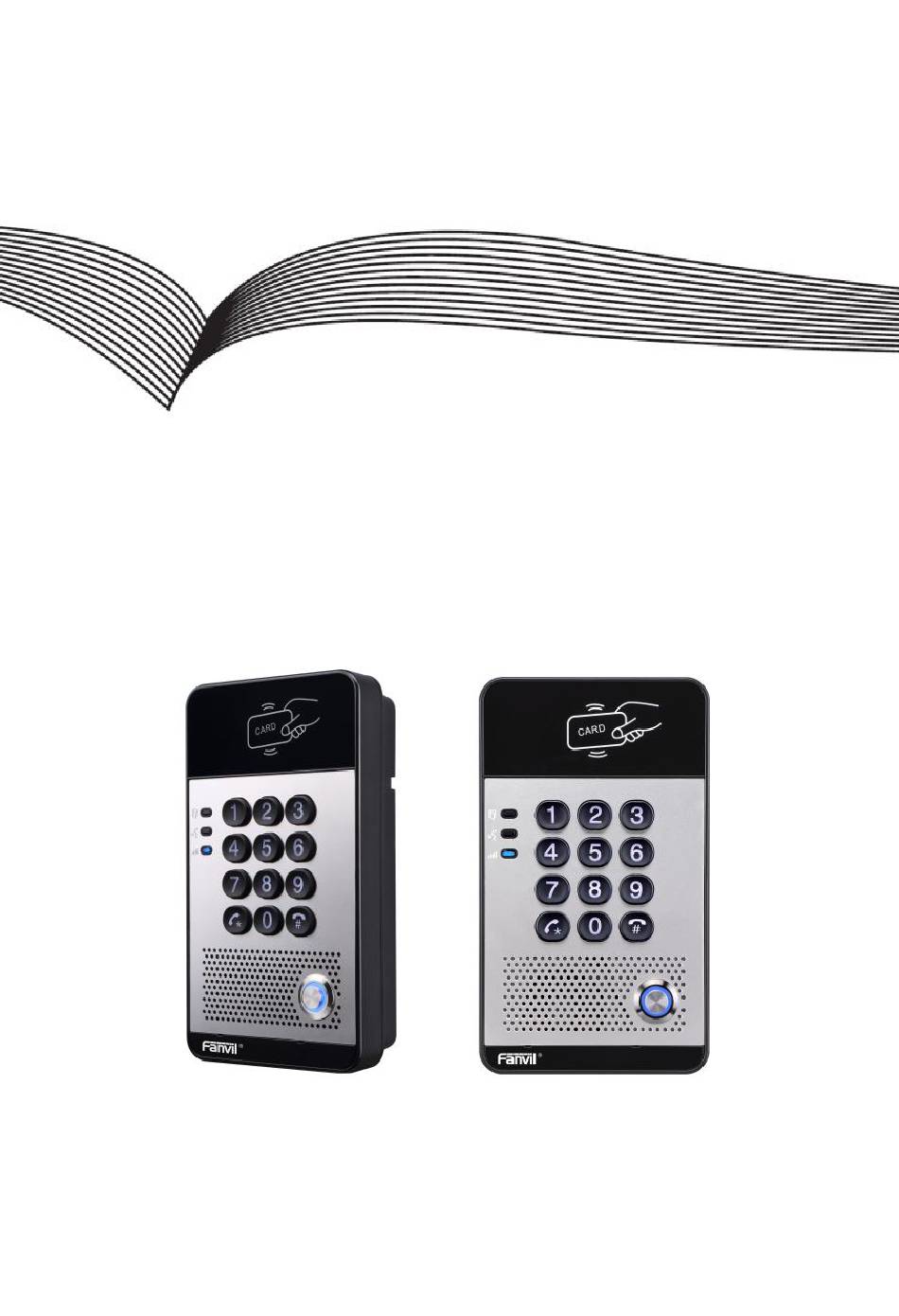

- Page 1 WWW.FANVIL.COM SIP Door Phone Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents................4 2. Physical Specifications ..............4 3. Installation ..................8 4. Searching Door Phone ..............11 5. SIP Door Phone Setting ..............12 6. Door Unlocking Setting ..............13... -
Page 3: Package Contents

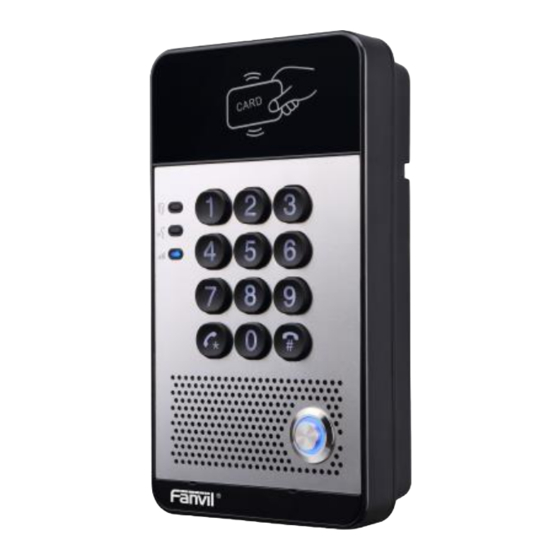

1. Package Contents Connectors Door Phone Screw and Quick Installation Wrench Guide RFID Cards 2. Physical Specifications Device size 160 x 93 x 35 mm Weight 420g (gross weight) 1) Front Panel RFID Reader Lock Call & Ring Network & Numeric Keyboard SIP Registration Speaker... - Page 4 Registration Steady Blue SIP Registration succeeded 2) Port Definition After removing the Back Panel of i20S, there are one terminal block connectors for power and lock control connection as shown in the picture below. Network port Power and lock JP1 Jumper...
- Page 6 Wiring instructions NO: Normally Open Contact COM: Common Contact NC: Normally Close Contact Driving Mode Electric-lock Mode Connections No electricity Electrify Jumper Active Passive when open when open √ √ √ √ √ √ √ √ √ √...
-
Page 7: Installation
3. Installation Main Part of Intercom Back Panel Wall-mounted hanging shell Figure 1 Three Major Parts of i20S Step 1: Installation preparation Check the following contents: Hex wrench x 1 RJ45 plugs x 2 (1 spare) KA4 x 25mm screws x 4 ... - Page 8 Step 3: Removing hanging shell A. Remove the hanging shell in Figure 3 and Figure 4. Figure 3 Figure 4 B. With Phillips screwdriver, unpacks the Back Panel and the main part of intercom as shown in Figure 5. Figure 5 Step 4: Hanging shell Fixing and Cabling Figure 6 A.
- Page 9 Step 5: Connection line Figure 7 Figure 8 A. Select the hole for cable supply. B. Connect the cables of RJ45, power, and electric-lock to the motherboard socket as mentioned in connectors description (refer to Section 2). C. Test whether there is electricity by doing the following: Press the # button for 3 seconds to get the IP address of intercom by voice.
-
Page 10: Searching Door Phone
4. Searching Door Phone There are two methods as shown below to search the i20S. Method 1: Open the iDoorPhone Network Scanner. Press the Refresh button to search the i20S and find the IP address. (Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe Method 2: Press and hold the “#”... -
Page 11: Sip Door Phone Setting
5. SIP Door Phone Setting Step 1: Login the homepage of the i20S. Step 2: Add the SIP account. Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters. Select “Activate”, and then click Apply to save this setting. -
Page 12: Door Unlocking Setting
Step 4: Door Phone Setting 6. Door Unlocking Setting Local 1) Local Password Step 1: Go to EGS Setting → Features → Set Local Password (The default is “6789”). Step 2: Use the device’s Numeric Keyboard to input password and “#” key, and then the door will be unlocked. - Page 13 2) Private Access Code Step 1: Go to EGS Access → Access Rule → set Access Code. Step 2: Use the device’s Numeric Keyboard to input password and “#” key, and then the door will be unlocked. Remote Remote Password Step 1: Go to EGS Setting →...
