i21
i21T
I21/I21T Door Phone
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i21 and is the answer not in the manual?

Questions and answers

Related Manuals for Fanvil i21

Summary of Contents for Fanvil i21

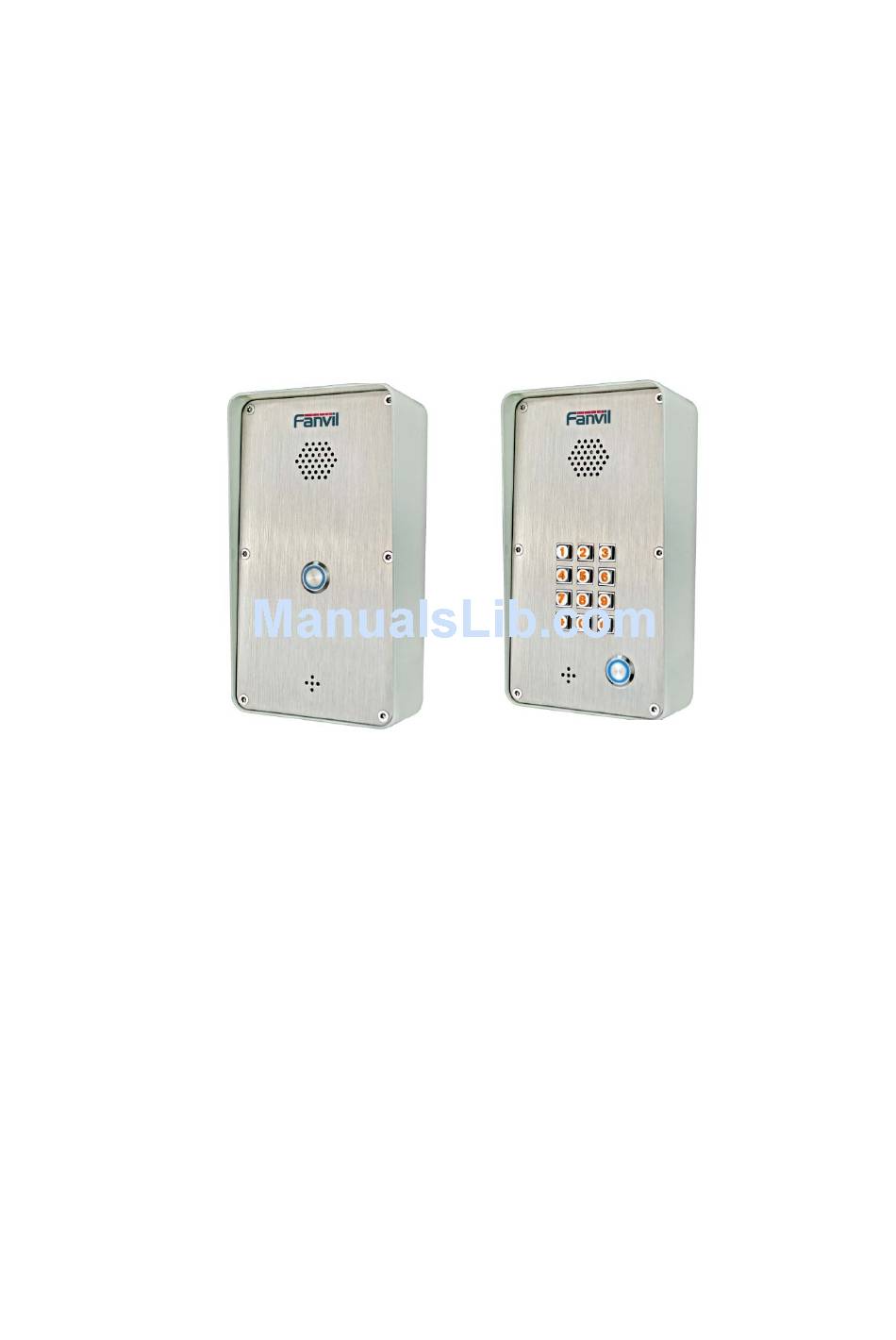

  • Page 1 I21/I21T Door Phone User Manual...
  • Page 2 Safety Notices 1. Please use the specified power adapter. If special circumstances need to use the power adapter provided by other manufacturers,please make sure the voltage and current provided in accordance with the requirements of this product, meanwhile, please use the safety certificated products， otherwise may cause fire or get an electric shock.When using this product, please do not damage the power cord，or forcefully twist it、Stretch pull or banding, and not to be under heavy pressure or between items, Otherwise may cause the power cord damage, thus lead to fire or get an electric...

  • Page 3: Table Of Contents

    2.1.2.2 Reserve function connection ....................... 8  2.1.2.3 Electric Lock Connection Driver Option ................... 8  2.1.2.4 Wiring ..............................9  2.2. Quick Setting ................................ 10  3. I21/I21T Door Phone Basic Operation ......11   3.1. Answering a Call ..............................11  3.3. End a Call ................................12 ...
  • Page 4 5.3.2Issue User Card ............................38  5.3.3 Delete the user card (Method 1): ......................39  5.3.4、Add Remote Visit Data .......................... 40 ...

  • Page 5: Acquaint I21/I21T

    1. Acquaint I21/I21T Voice Intercom I21/I21T voice entrance guard is a full digital network door phone，its core part adopt Fanvil mature Voip solution（Broadcom1190 chipset), stable and reliable performance, Hands-free adopting digital full-duplex mode，Voice loud and clear；generous appearance, solid durable, easy for installation, comfortable keypad, low power consumption.

  • Page 6: Interface Description

    LAN port,then network hardware connection is completed. In most cases， If you are using the modem TV cable broadband，you must set your I21/I21T network as DHCP mode：if you are using ADSL， then you must set your I21/I21T network as PPPoE mode.Please refer to the detailed setting ways 2.1.2, set network. 、Interface Description 2.1.2...
  • Page 7 I21/I21T connection (1) Electric LOCK and indoor switch connection Indoor switch Electric Lock Driver S_IN S_OUT Connect to the switch Normally open, normally close port (2) Power supply and Network connection Power supply WAN port LAN port 12V DC...

  • Page 8: Reserve Function Connection

    2.1.2.2 Reserve function connection Description of Connectors Function Remark Audio Output interface. Use to connect the external Audio PA Use to indicate the call status IO30A: Output high level when Ringing or talking; Output low level On the other status. IO30B: Output low level when Ringing or talking;...

  • Page 9: Wiring

    2.1.2.4 Wiring Relay connection description：  NO：means idle‐disconnected contact (normally open)   COM: means a pin contact(middle)；   NC：means an idle‐connected contact(normally close)；    Electric lock Electric Jumper Mode of connection power supply lock JP39 mode Internal External NO Inside Driver  √ √ Outside Driver  √ √ Inside Driver  √ √    ...

  • Page 10: Quick Setting

    SIP protocol knowledge for understanding the meaning represented by all parameters.In order to let I21/I21T users can quickly enjoy the high quality speech brought by the IP Phone services and low cost advantage, we especially lists the basic and must set options in this section，which let users can real-time started without understanding complex SIP protocols.

  • Page 11: I21/I21T Door Phone Basic Operation

    5.Configurate Door Phone parameter on EGS->EGS page frame. 3. I21/I21T Door Phone Basic Operation 3.1. Answering a Call When calling come，I21/I21T will ring，and configurate the shortcut as OK, then can press shortcut and answer the call. 3.2. Making a Call ...

  • Page 12: End A Call

    Configurate shortcut as Release key to end the call. 3.4. Call Records I21/I21T provides 100 missed calls、received calls、dialed Calls records，When the storage space used up， then will update the earnest records. Then the phone power of or reboot， all the call records will disappear.

  • Page 13: Setting Via Web Browser

    Setting via web browser 4.2. When I21/I21T and PC are connected to network， input phone IP address into Internet Explorer （IP address can obtain via pressing sysinfo key）http://xxx .xxx.xxx.xxx/， （if the web log on port is not 80 standard port，then need input http: //xxx.xxx.xxx.xxx：xxxx/，otherwise it will show can not find a server...

  • Page 14: Wizard

    IP address egistered and the Shows the phone current SIP LINE 1－2 r corresponding number status. The bottom of the page Accounts shows I21/I21T version number and release date. 4.3.1.2. Wizard Wizard Description Field Name Telephone network on-line mode, please according to the actual network environment select the appropriate network model.This phone provides...
  • Page 15 Select Static IP MODE，click【NEXT】can simply configurate the network address SIP parameters（default as 1 Line）and browse configuration items. Click eturn to the last page. 【BACK】r Please enter your assigned IP addresses. IP Address Please enter your assigned subnet mask. Subnet Mask Please enter your assigned a default gateway IP Gateway address.
  • Page 16 Show your manual configuration details. an simple SIP parameter Select DHCP MODE， click 【NEXT】 c （defaulted as 1 line） And browse configuration items. Click return to the last page specific 【BACK】 ， operation same as Static IP MODE。 Select PPPoE MODE，click【NEXT】can simply configurate online account and nd browse configuration items.

  • Page 17: Call Log

    4.3.1.3. Call Log Through this page can check all call out record. Call Log Description Field Name The call log start time. Start Time The call records of talk time. Duration This call log is the account of other side and call Dialed Calls protocol and using line.
  • Page 18 The phone current IP； Active IP Address Current Subnet Mask Subnet Mask； The current default gateway Current IP Gateway IP； MAC address； MAC Address Show the time of getting MAC address MAC Timestamp Telephone network on-line mode. Please according to the actual network environment This phone provides three ways ，choose a suitable network mode.

  • Page 19: Qos Config

    IP access networks. 4.3.2.2. Qos Config I21/I21T Terminal system support802.1Q/P protocol，support DiffServ configuration. Meanwhile， VLAN function can configurate Voice VLA and Data VLAN use different VLAN I.System configuration Data VLAN，can process the signalling、Audio stream and system and other data stream with different VLAN ID，...
  • Page 20 In chart 1，on a two layer switch which not set VLAN，any radio frame is forwarded to all the other ports in addition to receiving port. e.g，PC A（port 1）After sending the broadcast information，will be forwarded to the port 2、3、4. In chart 2，the switch generate red and blue VLAN；Meanwhile set port 1、2 as red VLAN、port 3、 4 are VLAN.

  • Page 21: Service Port

    Field Name LLDP Setup Description Open LLDP Open the phone LLDP Message function Open Learning Open phone learning LLDP function ， After the Function opening ， phone will automatically learn QoS in switch ，VLAN ID，802.1p,etc.configuration value.If differen ， phone will Automatically updated to the value in switch, synchronization with switches.

  • Page 22: Time&Date

    SERVICE PORT Description Field Name Configurate web browser port，default 80 port, if want to enhance system security，can modify it to non-80 HTTP Port standard port ，save the data after modification，when lo in again please use this way: http://xxx.xxx.xxx.xxx：xxxx. Configurate telnet port，default 23port； Telnet Port RTP Port Range Port Configurate phone RTP and open the starting...
  • Page 23 SNTP Field Name Description SNTP Time set SNTP Configurate whether enable SNTP server DHCP Time Whether use DHCP dynamic to obtain time，after enabling，phone will synchronization network time automatically in certain time Main Server Configurate phone obtain current time SNTP main server address.

  • Page 24: Voip

    Time Change Configure the daylight saving time changing length Length(Minute ) Month Configure DST the starting month and end month Week Configure DST the starting week and end week Date Configure DST the starting date and end date Hour Configure DST the starting hour and end hour Minute Configure DST the starting minute and end minute Manually set the...
  • Page 25 Password Configure SIP registration account password Configure the number registered to the SIP server， Telephone number if it is empty，then it is not a registered Configure display names，able to do when calling in the called party（not name the calling party Display Name ）can show this configuration parameter，allow input English letters...
  • Page 26  busy：incoming calls when the phone is busy directly forwarded to the specified number ：incoming calls within a specified time  No answer has not been answered，then forwarded to the specified number  all the time：incoming call will be transferred to the specified number before directly before the forwarding operation，machine indicates the caller id...
  • Page 27 voicemail，and listen to the voice mail，If no new message, voicemail light is out Subscribe the packet retransmission Configure subscription time interval timeout Specify the Conference Type, if you select the local, Meeting Type you needn’t input the conference number. meeting room Configure meeting room number，please contact number your service provider to the meeting room number...
  • Page 28 Set the Busy CFwd Off Code, when you choose to disable the busy forward function on your phone, it Busy CFwd Off Code will send message to the server, and the server will turn off the function immediately. Set the No Answer CFwd On Code, when you choose to enable the on answer forward function on your phone, it will send message to the server, and No Answer CFwd On...
  • Page 29 the default config. Set more parameters in contact field; connection Enable Long Contact with SEM server. Convert URI Convert # to %23 when send the URI. Dial Without Set call out by proxy without registration; Registered Ban Anonymous Call Set to ban Anonymous Call; Enable DNS SRV Support RFC2782；...

  • Page 30: Stun Config

    multiple accounts. BLF List number Configure BLF List number SIP Global Settings Enable the Strict Branch, the value of the branch must be in the beginning of z9hG4k in via field of Strict matching the invite sip message received, or the phone won’t Branch field response to the invite sip message.
  • Page 31 Type=Hot key Number 1/2 is the fixed phone number, when press the DSS key, the phone call the fixed phone number. this phone number can also be set as IP address. Type=Key Event You can set type as key event, there’re many options in the subtype for your selection. ...
  • Page 32 EGS,to config the door phone and maintenance the visitor data Voice Access Configuration Setting Item Function Initial Value Open Time Time for open the door, if time is up, the door will be closed automatically. Enable Auto When this function enable. After time is up, Enable Handdown the call will be ended automatically.
  • Page 33 Reader <Primary /Secondary>mode Primary /secondary corresponds to the first number in Dial Mode Select one-button Call function, <Day/Night>mode corresponds to the second number in one-button Call function The period between one-button Call function Time of Switch to call the first and second number When select <Day/Night>mode, the time to 06:00 Day Start Time...

  • Page 34: 2.  Door Card Setting

     “<8>”:log level  “MAR 20 11:17:38”: happen time  “5,0003476426,IC Card,I20 IP Door Phone”:logs have include door open time ,Card number/phone number ,open door type ,device. 4.3.5.2. Door Card Setting Door Card Setting,to config the ID card and admin the card issue and delete Door Card Setting Code Explanation...

  • Page 35: 3.  Call Log

    same),Maximum 10 Admin Card and 100 visitor card To delete Admin Card, select the card number Delete Administrator and click<delete> ID card database, display the card number and Door Card Table Issuing Date 4.3.5.3. Call Log Display call history,Maximum 2100 call history,the earlist excessed call history will be deleted automatically.Right-Click to export Call Log in CSV format Call Log Code...

  • Page 36: Specifications

    5.1.1.Specifications: SIP 2.0(RFC-3261) Protocol Broadcom 1190 Chipset Stainless Steel Key Material Direct-button Support(i21T only) Digital Keyboard Microphone 1.5W/8Ω Amplifier 1.5W/8Ω Voice Speaker Adjustable Voice Control Support(AEC) FDSP Protocol Voice Flow G.711, G.729 CODEC 12V+-15%/1A DC or PoE Power Supply PoE 802.3af (Class 0 - 12.95W) 48V/380mA 10/100BASE-TX s Auto-MDIX, RJ-45（Keep press key in 7 seconds...

  • Page 37: Schematic Diagram

     ； Visitor message  Calling indoor extension for two-way conversation；  Software upgrading on line； WEB remote management of Terminal malfunction or status；   Schematic Diagram 5.1.3. Housing Speaker Intercom call Button Numeric Keypad(passw ord and dialing) Intercom call Button i21T 5.2、Owner Remote Opens the Voice Access Controller by VOIP Phone...
  • Page 38 （2）Issue <Delete administration card> Input available card number to ID input field, choose “Revocation”, then press Add to add Delete Administration Card. （3）Administration Card List Issue User Card 5.3.2 Issue User Card (method 1): 1） Choose “Card Issuing” in “Door Card”. 2）...
  • Page 39 5）Press “Apply”. 6）You can check the issuing records in “Door Card Table” Issue the User Card (Method 2): 1） Put Issue Administration Card on the Reader Sensing Area, the controller is on the state of issuing. 2） Put IC card on the Reader Sensing Area, and make sure the reader responded. 3）...
  • Page 40 3) Put IC card on the Reader Sensing Area, and make sure the reader responded. 4) Choose “Normal” in the “Card Reader Setting”. 5）Press “Apply” . Delete the user card (Method 2): 1） Put Issue Administration Card on the Reader Sensing Area, the controller is on the state of deleting.
