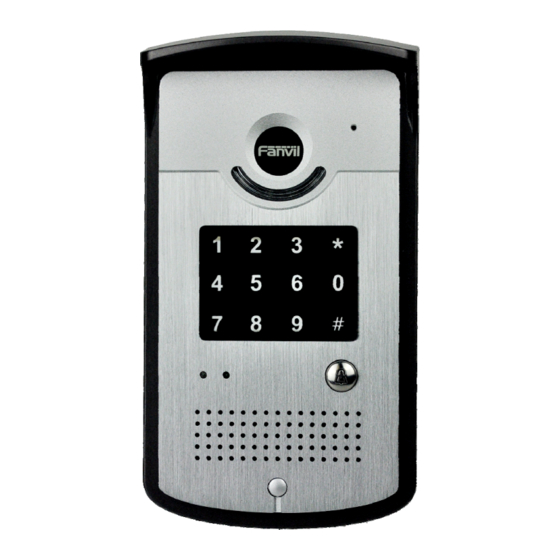

Fanvil I20-T User Manual

Digital network door phone
Hide thumbs Also See for I20-T:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

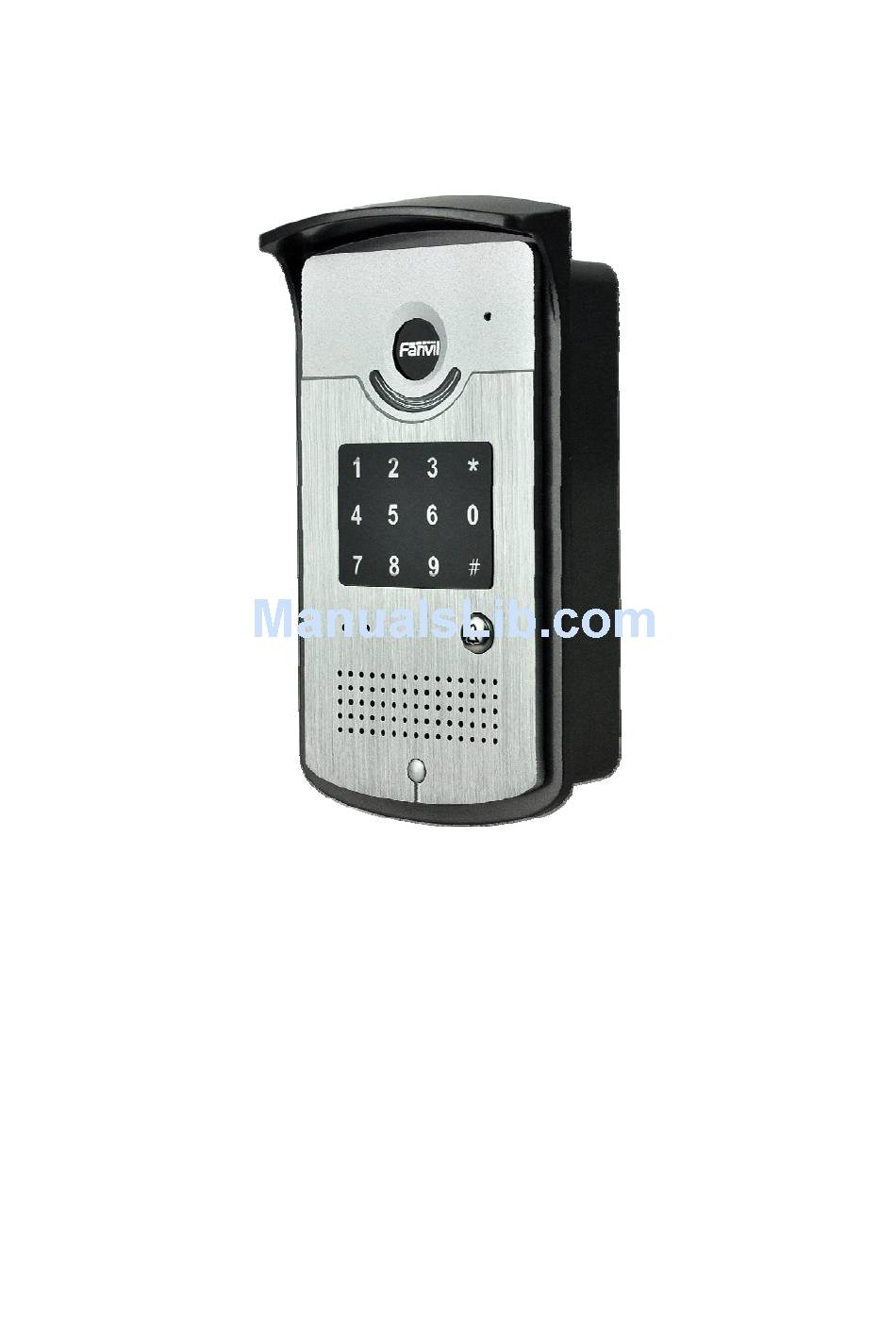

I20-T Door Phone
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I20-T and is the answer not in the manual?

Questions and answers

Related Manuals for Fanvil I20-T

Summary of Contents for Fanvil I20-T

  • Page 1 I20-T Door Phone User Manual...
  • Page 2 Safety Notices 1. Please use the specified power adapter. If special circumstances need to use the power adapter provided by other manufacturers,please make sure the voltage and current provided in accordance with the requirements of this product, meanwhile, please use the safety certificated products， otherwise may cause fire or get an electric shock.When using this product, please do not damage the power cord，or forcefully twist it、Stretch pull or banding, and not to be under heavy pressure or between items, Otherwise may cause the power cord damage, thus lead to fire or get an electric...

  • Page 3: Table Of Contents

    2.1. Connect the power supply and the network ....................5  2.1.1. Connect Network ............................5  2.2. Quick Setting ................................9  3. I20-T Door Phone Basic Operation ........ 10   3.1. Answering a Call ..............................10  3.3. End a Call ................................10 ...

  • Page 4: Acquaint I20-T

    1. Acquaint I20-T Voice Intercom I20-T voice entrance guard is a full digital network door phone，its core part adopt Fanvil mature Voip solution（Broadcom1190 chipset), stable and reliable performance, Hands-free adopting digital full-duplex mode，Voice loud and clear；generous appearance, solid durable, easy for installation, comfortable keypad, low power consumption.

  • Page 5: Key Description

    1. Broadband Router Connect network one end with I20-T WAN port，connect the other end with your broadband router LAN port,then network hardware connection is completed. In most cases，you must set your I20-T network as DHCP mode.Please refer to the detailed setting ways 3.2.1, set network.
  • Page 6 LAN port,then network hardware connection is completed. In most cases，If you are using the TV cable broadband， you must set your I20-T network as DHCP mode： if you are using ADSL， then you must set your I20-T network as PPPoE mode.Please refer to the detailed setting ways 3.2.1, set network.
  • Page 7 Electric Lock Connection Driver Option 2.1.2.2 JP1  JP1  Outside Inside Driver  Driver  External Power Driving Internal Power Driving When the initial electric current of the lock is less than 500mA/12V, you can 【Notice】 access to the internal driven mode and use the POE of the Voice Access System or 12V DC to control the the switch of the electric lock ;...
  • Page 8 Outside Driver √ √ Inside Driver √ √ Electric lock Electric Jumper mode of connection power supply lock mode Internal Externa Outsid Driver √ √...

  • Page 9: Quick Setting

    SIP protocol knowledge for understanding the meaning represented by all parameters.In order to let I20-T users can quickly enjoy the high quality speech brought by the IP Phone services and low cost advantage, we especially lists the basic and must set options in this section，which let users can real-time started without understanding complex SIP protocols.

  • Page 10: I20-T Door Phone Basic Operation

    3. I20-T Door Phone Basic Operation 3.1. Answering a Call When calling come，I20-T will ring，and configurate the shortcut as OK, then can press shortcut and answer the call. 3.2. Making a Call  Speed Dial Configurate shortcut as Memory key and setup a number, then press shortcut can call the configured number immediately.

  • Page 11: Door Open Operation

    Setting via web browser 4.2. When I20-T and PC are connected to network， input phone IP address into Internet Explorer （IP address can obtain via pressing sysinfo key）http://xxx .xxx.xxx.xxx/， （if the web log on port is not 80 standard port，then need input http:...

  • Page 12: Web Page Functional Explanation

    Network 、DHCP、PPPoE）and MAC address，IP，t （S get way default gateway IP address egistered and the Shows the phone current SIP LINE 1－2 r corresponding number status. The bottom of the page Accounts shows I20-T version number and release date. 4.3.1.2. Wizard...
  • Page 13 Wizard Description Field Name Telephone network on-line mode, please according to the actual network environment select the appropriate network model.This phone provides ， three kinds of network online ways： Static : If your ISP Services provide you with a fixed IP address，you can choose this.After selecting，...
  • Page 14 Please enter your assigned IP addresses. IP Address Please enter your assigned subnet mask. Subnet Mask Please enter your assigned a default gateway IP Gateway address. Set the DNS domain suffix. When the user input in the DNS Domain DNS domain name address and cannot be resolved， telephone will add this domain behind the domain name address then go to resolve.

  • Page 15: Call Log

    Show your manual configuration details. an simple SIP parameter Select DHCP MODE， click 【NEXT】 c （defaulted as 1 line） And browse configuration items. Click return to the last page specific 【BACK】 ， operation same as Static IP MODE。 Select PPPoE MODE，click【NEXT】can simply configurate online account and nd browse configuration items.

  • Page 16: Network

    Description Field Name The call log start time. Start Time The call records of talk time. Duration This call log is the account of other side and call Dialed Calls protocol and using line. Placed(answered),Missed（missed）,Received Type （incoming). 4.3.2. Network 4.3.2.1. WAN Config WAN Config Field Name Description...
  • Page 17 Telephone network on-line mode. Please according to the actual network environment This phone provides three ways ，choose a suitable network mode. for network online ： static ：If your ISP services provide you with fixed IP address，then you  can choose this item. After choosing, you must fill it into Static table：IP Address / Netmask /Gateway / Primary DNS and other related information.If you don’t know these information，...

  • Page 18: Qos Config

    IP access networks. 4.3.2.2. Qos Config I20-T Terminal system support802.1Q/P protocol， support DiffServ configuration. Meanwhile， VLAN function can configurate Voice VLA and Data VLAN use different VLAN I.System configuration Data VLAN，can process the signalling、Audio stream and system and other data stream with different VLAN ID，which let the applications of VLAN is more flexible.（Below chart is helpful for your...
  • Page 19 forwarded to the port 2、3、4. In chart 2，the switch generate red and blue VLAN；Meanwhile set port 1、2 as red VLAN、port 3、 4 are VLAN. Then A（port 1）send out broadcast frame，switches only will forward it to other port belongs to a VLAN——port 2 which also belong to red VLAN，Will not be forwarded to the blue port VLAN.

  • Page 20: Service Port

    Configurate ID value of VLAN，range is 0-4095 WAN Port VLAN ID Configurate the value of Signal 802.1P，range is 0-7 Signal 802.1P Priority Configurate the value of Voice 802.1P，the range is Voice 802.1P Priority LAN VLAN Setup Open/ Port Vlan LAN Port Vlan forbid Same as WAN port ID value Close:...

  • Page 21: Time&Date

    2）If change Telnet ,HTTP port number ，it’s better set bigger port number than 1024， because 1024 port is system reserved port. 3）HTTP port number is set as 0， then forbid the HTTP service. 4.3.2.4. TIME&DATE According to their own position、configuration time zone and SNTP Server to automatically obtain time and daylight saving time function，...

  • Page 22: Voip

    Synchronous Query inquiry from the server constantly to synchronize ，default 60 second 12 hours system System can switch to 12 hours，default is 24 hours Date Format Configure date format Date Separator Configure date separator summer time set Configure the daylight saving time Open the Daylight Saving Time Time Change...
  • Page 23 Choose which line configuration of the SIP account，There are two lines to choose from. switch to the line account configuration Select and click【Load】 Basic setup Phone SIP registration status display；if the register registration status will show the registered successfully，Otherwise is unregistered server name Name the server...
  • Page 24 Open registration allow/prohibit registration Configure Codecs According to the need by navigation on Disable Disable Codecs/Enable Codecs list add or remove ， coding Codecs/Enable and can be used by the priority of the up and down Codecs navigation keys to change the coding. Advance configuration Choose call forwarding way.
  • Page 25 Automatic response When there is a call in，and over time went time unanswered，phone will answer it automatically Configure whether to support rfc4028,refresh the Open dialogue timer SIP sessions Dialogue timeout Configure dialogue timeout Subscribe information after a successful Open registration,can subscribe others’ status or voice subscription mails, and so on.
  • Page 26 Code disable the always forward function on your phone, it will send message to the server, and the server will turn off the function immediately. Set the Busy CFwd On Code, when you choose to enable the busy forward function v on your phone, it will send message to the server, and the server will turn on the function immediately.
  • Page 27 User Agent User Agent Terminal Set DTMF sending mode，there are three：  DTMF_RELAY  DTMF_RFC2833 DTMF Type  DTMF_SIP_INFO Different VoIP Service providers may provide different modes. Local Port Set sip port of each line. Ring Type Set ring type of each line. Enable/Disable system to support RFC3581.

  • Page 28: Stun Config

    Set to make quotation mark to display name as the Enable Display name phone sends out signal, in order to be compatible Quote with server. Enable user=phone by selecting it, it is contained in Enable user=phone the invite sip message, in order to be compatible with server.

  • Page 29: Function Key

    network. 4.3.5. FUNCTION KEY 4.3.5.1. Function key 1-4 programmable key in phone software(depend on hardware),you can configurate different feature on each key. You can ref to below indications for each feature, default is NA, means without any feature settings. 。 Type=Hot key Number 1/2 is the fixed phone number, when press the DSS key, the phone call the fixed phone number.
  • Page 30 Number1 is the Main number and Number2is the secondary number; When the Dial Mode is<Day/Night>,Number1 is the daytime period and Number2 is the night time period EGS,to config the door phone and maintenance the visitor data Voice Access Configuration Setting Item Function Initial Value Open Time...
  • Page 31 phone calls, input password only. Eanble open Provide keyboard function Touchpad Enable Card open Provide card reader function Reader <Primary /Secondary>mode Primary /secondary corresponds to the first number in Dial Mode Select one-button Call function, <Day/Night>mode corresponds to the second number in one-button Call function The period between one-button Call function Time of Switch...

  • Page 32: 2.  Door Card Setting

    After you set the log server, i20T will send log data to the log server. Data format: <8>MAR 20 11:17:38 5,0003476426,IC Card,I20 IP Door Phone [Note]:  “<8>”:log level  “MAR 20 11:17:38”: happen time  “5,0003476426,IC Card,I20 IP Door Phone”:logs have include door open time ,Card number/phone number ,open door type ,device.

  • Page 33: 3.  Call Log

    card issuing mode, and then wave the additional cards into the database, when the procedure completed, wave admin card again to enter Normal status.(Delete card procedure is same),Maximum 10 Admin Card and 100 visitor card To delete Admin Card, select the card number Delete Administrator and click<delete>...

  • Page 34: Specifications

    5.1.1.Specifications: Protocol SIP 2.0(RFC-3261) Broadcom 1190 Chipset Key Material Stainless Steel Direct-button Digital Keyboard support Microphone 0.5W/8Ω Amplifier Voice Speaker 0.5W/8Ω Voice Control Adjustable FDSP Support(AEC) Protocol Voice Flow G.711, G.729 CODEC Power Supply 12V+-15%/1A DC or PoE PoE 802.3af (Class 0 - 12.95W) 48V/380mA 10/100BASE-TX s Auto-MDIX, RJ-45（Keep press key in 7 seconds...

  • Page 35: Schematic Diagram

     ； Visitor message  Calling indoor extension for two-way conversation；  Software upgrading on line； WEB remote management of Terminal malfunction or status；   5.1.3. Schematic Diagram Rain Cover Call/Answer Indicator Digital Keyboard (Password input or Number dial) Red: Power Indicator...

  • Page 36: 2Issue User Card

    （1） Issue <issue administration card> Input available card number to ID input field, choose Issuer, then press Add to add Issue Administration Card. （2）Issue <Delete administration card> Input available card number to ID input field, choose “Revocation”, then press Add to add Delete Administration Card.

  • Page 37: Delete The User Card (Method 1)

    3) Put IC card on the Reader Sensing Area, and make sure the reader responded. 4） Choose “Normal” in the Card Reader Setting. 5）Press “Apply”. 6）You can check the issuing records in “Door Card Table” Issue the User Card (Method 2): 1）...

  • Page 38: Add Remote Visit Data

    2) Press “Apply” to enter the state of deleting card, 3) Put IC card on the Reader Sensing Area, and make sure the reader responded. 4) Choose “Normal” in the “Card Reader Setting”. 5）Press “Apply” . Delete the user card (Method 2): 1）...
  • Page 39 （2）Remote Visit Table...
