Summary of Contents for Fanvil i23S

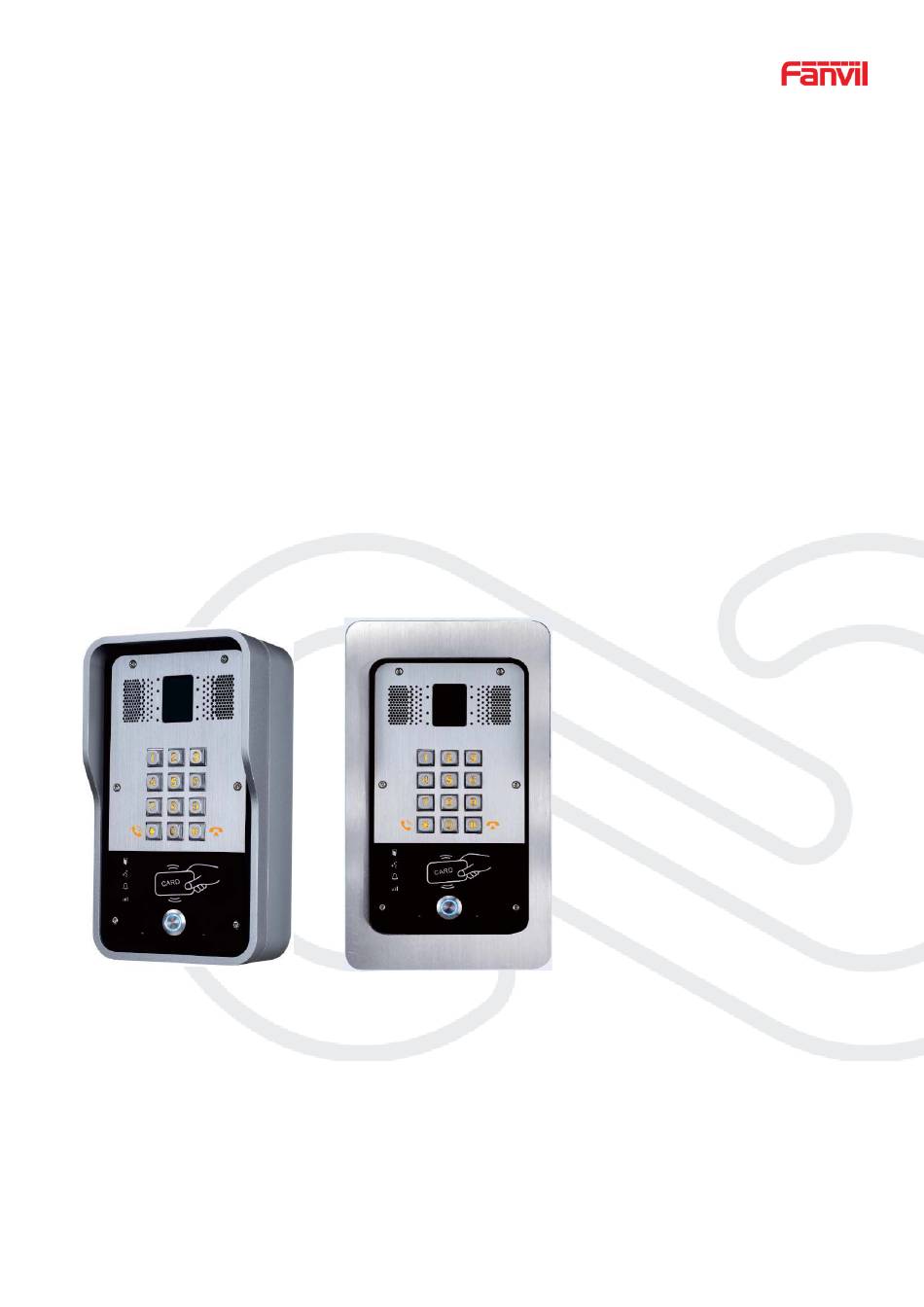

- Page 1 SIP Audio Door Phone i23S USER MANUAL V1.0 www.fanvil.com...
- Page 2 Document Firmware Explanation Time V1.0 2.1.1.3445 Initial issue 20180208...
- Page 3 Safety Notices 1. Please use the specified power adapter. If you need to use the power adapter provided by other manufacturers under special circumstances, please make sure that the voltage and current provided is in accordance with the requirements of this product, meanwhile, please use the safety certificated products, otherwise may cause fire or get an electric shock.
-
Page 4: Table Of Contents
Directory Product introduction ..........................6 Appearance of the product......................... 6 Description ............................6 Start Using..............................7 Confirm the connection ........................7 1) Power, Electric Lock, Indoor switch port ..................7 2) Driving mode of electric-lock(Default in Passive mode) ..............7 3) Wiring instructions.......................... - Page 5 c)Video ........................36 d)MCAST ............................e)Action URL ..........................f)Time/Date ............................ (5)EGS Access ............................41 (6)EGS Logs............................44 (7)Door Lock ............................44 (8)Function Key............................45 (9)Alert..............................47 Appendix..............................48 Technical parameters........................48 Basic functions ..........................49 Schematic diagram..........................50 Other instructions ............................. 50 Open door modes ..........................
-
Page 6: A Product Introduction
A.Product introduction i23S SIP door phone is a full digital network door phone, with its core part adopts mature VoIP solution (Broadcom chip), stable and reliable performance, hands-free adopting digital full-duplex mode, voice loud and clear, generous appearance, solid durable, easy for installation, comfortable keypad and low power consumption. -
Page 7: B Start Using
When using the active mode, it is 12V DC in output. When using the passive mode, output is short control (normally open mode or normally close mode). www.fanvil.com 7 / 52... -
Page 8: Wiring Instructions
Wiring instructions I23S use a relay to control the state of electric-lock, before that, the electric-lock must be powered correctly. There are 3 contacts of the relay: NO: Normally Open Contact. COM: Common Contact. NC: Normally Close Contact. Driving Mode... -
Page 9: Quick Setting
Press and hold “#” key for 3 seconds and the door phone will report the IP address by voice. Or use the "iDoorPhoneNetworkScanner.exe" software to find the IP address of the device. (Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe ) Note: Waiting for 30s to run the device when it is power on. -
Page 10: End Call
“Access Code”. For example, the location code is 1, and Access code is 123, User enter “1*123#” to open the door. NOTE: ended with “#” to send the code immediately. 7) Active URL control command to open the door. www.fanvil.com 10 / 52... -
Page 11: Page Settings
SIP. Default user with general level: The default is not set, are free to add. Default user with root level: User name: admin Password: admin www.fanvil.com 11 / 52... -
Page 12: Configuration Via Web
Shows the configuration information for WAN port, including connection mode of Network WAN port (Static, DHCP, PPPoE), MAC address, IP address of WAN port. SIP Accounts Shows the phone numbers and registration status for the 2 SIP LINES. b) Account www.fanvil.com 12 / 52... -
Page 13: C)Configurations
Account Field Name Explanation Change Web Authentication Password You Can modify the login password to the account Add New User You can add new user User Accounts Show the existing user information Configurations www.fanvil.com 13 / 52... -
Page 14: D)Upgrade
Reset to factory This will restore factory default and remove all configuration information. defaults Upgrade Upgrade Field Name Explanation Software upgrade Browse to the firmware, and press Update to load it to the equipment. e) Auto Provision www.fanvil.com 14 / 52... - Page 15 Auto Provision Field Name Explanation Common Settings www.fanvil.com 15 / 52...
- Page 16 Provisioning Server URL where the phones can request their configuration. Server Address PnP Server Address Server Port PnP Server Port Transportation PnP Transfer protocol – UDP or TCP Protocol Update Interval Interval time for querying PnP server. Default is 1 hour. www.fanvil.com 16 / 52...
-
Page 17: F)Fdms
Select the TLS transport layer security protocol version, in accordance with TLS Version the service version INFORM Sending Time between transmissions of “Inform” Unit is seconds. Period STUN Server Addr Set STUN Server IP address STUN Enable Enable/Disable STUN FDMS www.fanvil.com 17 / 52... -
Page 18: G)Tools
The name of the community where the device is installed Building Number The name of the building where the equipment is installed Room Number The name of the room where the equipment is installed g) Tools www.fanvil.com 18 / 52... - Page 19 Capture a packet stream from the equipment. This is normally used to troubleshoot problems. Auto Reboot Setting Configure the restart mode and restart time of the device and restart it to restore the device to its best state. Reboot Phone www.fanvil.com 19 / 52...
-
Page 20: Network
Note: Be sure to save the configuration before rebooting. (2) Network a) Basic Field Name Explanation Network Status The current IP address of the equipment Subnet mask The current Subnet Mask Default The current Gateway IP address gateway The MAC address of the equipment www.fanvil.com 20 / 52... -
Page 21: B)Advanced
2) It is suggested that the make the values bigger than 1024 if users change the port to HTTPS. Values less than 1024 are reserved. 3) If the HTTP port is set to 0, HTTP service will be disabled. b) Advanced www.fanvil.com 21 / 52... - Page 22 Manually set the VLAN ID value, which range is 0-4095 802.1p Signal Set the SIP 802.1P value, the range is 0-7 Priority 802.1p Media Set the media 802.1P value, the range is 0-7 Priority Quality of Service (QoS) Settings Enable DSCP enable DSCP www.fanvil.com 22 / 52...
-
Page 23: C)Vpn
Set the 802.1X password c) VPN The device supports remote connection via VPN. It supports both Layer 2 Tunneling Protocol (L2TP) and OpenVPN protocol. This allows users securely connect from public network to local network remotely. www.fanvil.com 23 / 52... -
Page 24: Line
Set User Name access to VPN L2TP Server. Name Authentication Set Password access to VPN L2TP Server. Password Open VPN Files Upload or delete Open VPN Certification Files (3) Line a) SIP Configure a SIP server on this page. www.fanvil.com 24 / 52... - Page 25 25 / 52...
- Page 26 Enter the authentication name of the service account, which is assigned Authentication Name by IPPBX administrator, or provided by ISP provider. Authentication Enter the authentication password of the service account, which is Password assigned by IPPBX administrator, or provided by ISP provider. www.fanvil.com 26 / 52...
- Page 27 Server=set up call conference by dialing to a conference room on the server Server Conference Set the conference room number when conference type is set to be Number Server Transfer Timeout Set the timeout of call transfer process. www.fanvil.com 27 / 52...
- Page 28 Session Timeout Set the session timer timeout period. Enable rPort Set the line to add rPort in SIP headers. Enable PRACK Set the line to support PRACK SIP message. www.fanvil.com 28 / 52...
-
Page 29: B)Basic Settings
IP and port as well as the type of NAT being used. The equipment can then use this information to register itself to a SIP server so that it can make and receive calls while in a private network. www.fanvil.com 29 / 52... -
Page 30: C)Dial Peer
STUN server IP and port (usually the default is 3478), and select the Use Stun SIP server, the use of NAT equipment to achieve penetration. C) Dial Peer Configure the Dial Peer to make the device call more flexible. www.fanvil.com 30 / 52... - Page 31 2) all: xxx, all replaced by xxx; can achieve speed dial, such as user configuration dial-up 1, then by configuring all: number to change the actual call out the number; 3) del, delete the number before the n bit, n by the replacement length set; www.fanvil.com 31 / 52...
-
Page 32: Egs Setting
Configure the replacement / delete length, the number entered by the user Deleted Length is replaced / deleted by this length; this is an optional configuration item; (4) EGS Setting a) Features www.fanvil.com 32 / 52... - Page 33 Enable Access Table: enter <Access Code> for opening door during calls. Enable Access Table Disable Access Table: enter <Remote Password> for opening door during calls. Default Enable. Device description displayed on IP scanning tool software. Initial Value is Description “i23S IP Door Phone”. www.fanvil.com 33 / 52...
- Page 34 Delay Start Time Set start delay time. Voice Read IP Enable or disable voice broadcast IP address. Press "*" to Send Enable or disable the Press "*" to Send, Initial Value is enable. Block Out Settings www.fanvil.com 34 / 52...
-
Page 35: B)Audio
When the door opened successfully, the device will play the correct tone set Pass Tone by the user. When the door fails to open, the terminal will play an error tone set by the Fail Tone user. www.fanvil.com 35 / 52... -
Page 36: C)Video
Camera Status Display the relevant information of the camera, including maximum access, maximum stream, maximum sub stream, and the status. IP Camera Settings Position Set IP Camera Name. User name External camera login required account. External camera login password required. Password www.fanvil.com 36 / 52... -
Page 37: D)Mcast
Web interface: set the ordinary priority and enable page priority. Priority: In the drop-down box to choose priority of ordinary calls the priority, if the priority of the incoming flows of multicast RTP, lower precedence than the current common calls, device will www.fanvil.com 37 / 52... - Page 38 RTP stream. Web Settings: The multicast SS priority is higher than that of EE, which is the highest priority. Note: when pressing the multicast key for multicast session, both multicast sender and receiver will beep. Listener configuration www.fanvil.com 38 / 52...
- Page 39 All equipment has been a path or multi-path multicast phone, such as listening to "multicast information group 2". If multicast is a new "group of 1", because "the priority group 1" is 2, higher than the current call www.fanvil.com 39 / 52...
-
Page 40: E)Action Url
Talking interface equipment. e) Action URL Action URL Event Settings URL for various actions performed by the phone. These actions are recorded and sent as xml files to the server. Sample format is http://InternalServer /FileName.xml f) Time/Date www.fanvil.com 40 / 52... -
Page 41: Egs Access
Select automatic DST according to the preset rules of DST, or the manually input DST Set Type rules Manual Time Settings The time set by hand, need to disable SNTP service first. Daylight Saving Time Settings (5) EGS Access www.fanvil.com 41 / 52... - Page 42 Virtual extension number, used to make position call instead of real number. Location It might be taken with unit number, or room number. RFID/IC card number. You can manually fill in the first 10 digits of the card number or select the existing card number www.fanvil.com 42 / 52...
- Page 43 Note: in the issuing state, swiping deleted card is invalid. Shows the ID, Issuing Date and Type of admin card Delete Clicking <Delete> would delete the selected admin card in the list. Delete All Click <Delete All>, to delete all admin card lists. www.fanvil.com 43 / 52...
-
Page 44: Egs Logs
Note: there are three kinds of brushing card feedback results. Type 1. Temporary Card (only added) the card number, without adding other rules) 2. Valid Card (added access rules) 3. Illegal Card (Did not add information) (7) Door Lock www.fanvil.com 44 / 52... -
Page 45: Function Key
Set the duration of door open. Network Enable "Network connection failed" to open the door automatically. Connect Fail Door Lock Select "SIP registration failed" to open the door automatically. Waiting Time Set the duration of door open. (8) Function Key www.fanvil.com 45 / 52... - Page 46 Type Number Line Subtype Usage Fill the The SIP Using Speed Dial mode together with Hot Key called account Speed Dial , can define party’s SIP correspond whether this call is allowed to be hung up www.fanvil.com 46 / 52...
-
Page 47: Alert
If the device is in calls, or it is three-way conference, or initiated multicast communication, the device would not be able to launch a new multicast call. (9) Alert www.fanvil.com 47 / 52... -
Page 48: E Appendix
Set the Alert message and send to specific server Address E.Appendix 1. Technical parameters Communication protocol SIP 2.0(RFC-3261) Main chipset Broadcom DSS Key 1 (Stainless steel) Keys Numeric keyboard Support Speaker 3W/4 Audio Volume control Adjustable Full duplex Support (AEC) speakerphone www.fanvil.com 48 / 52... -
Page 49: Basic Functions
Speech Protocols flow G.729 G.723 G.711 G.722 G.726 Decoding Active Switched 12V/650mA DC Ports Output 10/100BASE-TX s Auto-MDIX, RJ-45 EM4100 (125Khz) RFID/IC card reader MIFARE One(13.56Mhz) Power supply mode 12V / 1A DC or PoE Cables CAT5 or better Cast aluminium panel, Cast aluminium back shell Shell Material Working temperature -40°C to 70°C... -
Page 50: Schematic Diagram
3. Schematic diagram Housing Speaker Numeric keypad (password and dialing) Lock status Card reader area Call status Ring status DSS key with LED Network and registration status MICs F. Other instructions 1. Open door modes Local Press indoor switch, which is installed and connected with device, to unlock the door. - Page 51 Method 1: used to add cards for starters typically Method 2: used to add cards for professionals Methods 3: use to add few cards Note: you can also use the USB card reader connected with PC to get cards ID automatically. 51 / 52...
- Page 52 Only need input the before 10 Numbers. Method 1: used to batch delete cards for starters. Method 2: used to batch add cards for intermediates. Method 3: use to batch delete cards or delete few cards. 52 / 52...
