2. Hardware Orientation
VSP 198CVS Back Panel
VSP 198CVS Back Panel

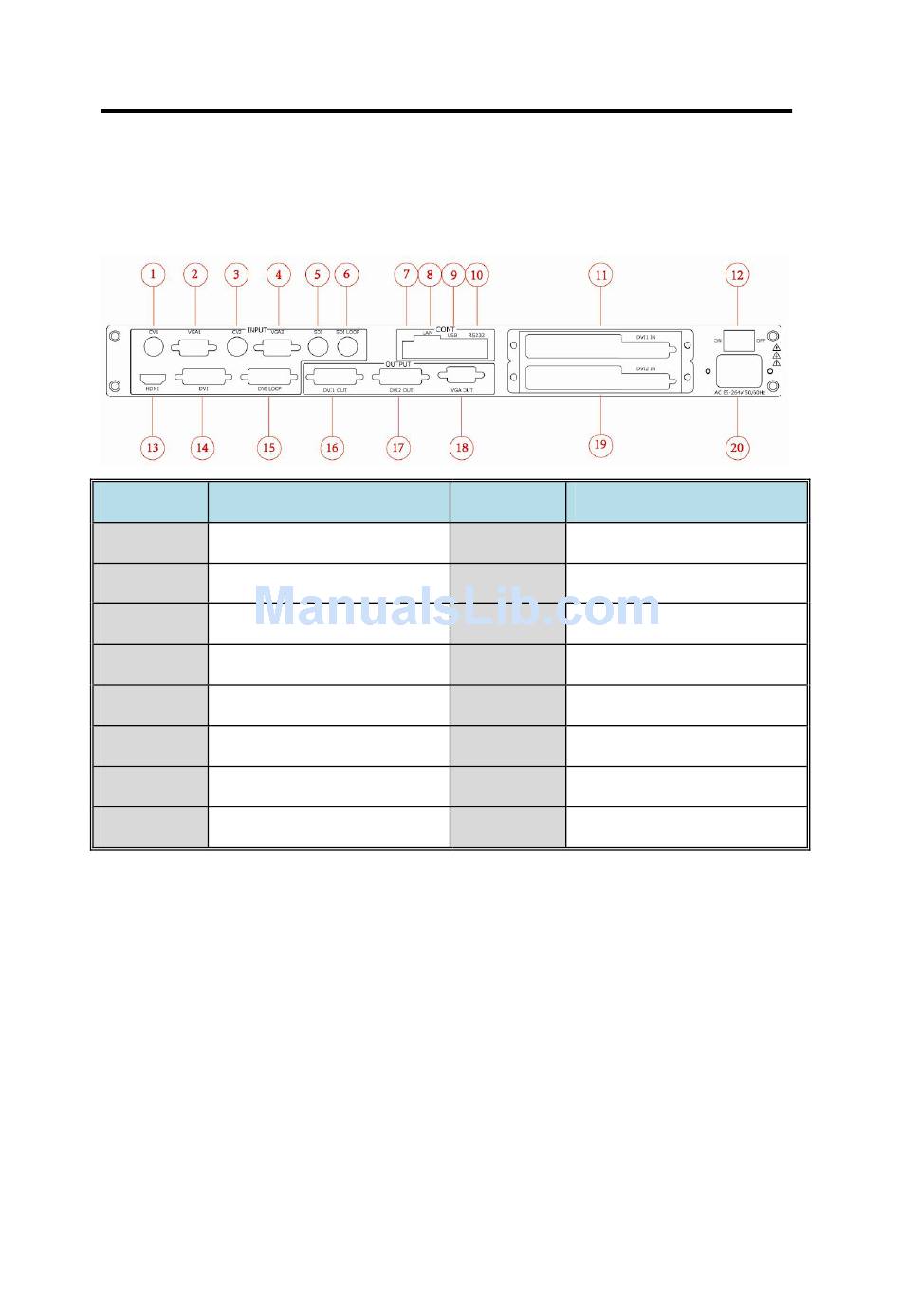

The figure below illustrates the professional interface and control signals of
VSP 198CVS back panel.
NO
1.3
CVBS Input
2.4
VGA Input
5
SDI Input
6
SDI Loop Out
7
Push button switch
8
10/100M Interface
9
USB Interface
10
RJ11 (RS232) Interface
CONT Interface
7: Dial Switch
If the two dial switches are upwards, the device is in normal work, and if
they are downwards, the device is in upgrade state. OLED module light is
off when the device is in upgrade state. Some of the button lights turn on,
and the device will not work.
8. 10/100M UDP Interface
Used to connect the windows control program or device upgrade.
9. USB Interface
VSP 198CVS
INTERFACE
NO
11.19
Sending card interface
12
Power Switch
13
HDMI Input
14
DVI Input
15
DVI Loop Out
16.17
DVI Output
18
VGA Output
20
Power Interface
User Manual
INTERFACE
26
