ImageXpress Micro High Content Imaging System Options User Guide
72
15. Snap an image.
The condenser annulus ring shows. See
need to adjust the exposure time.

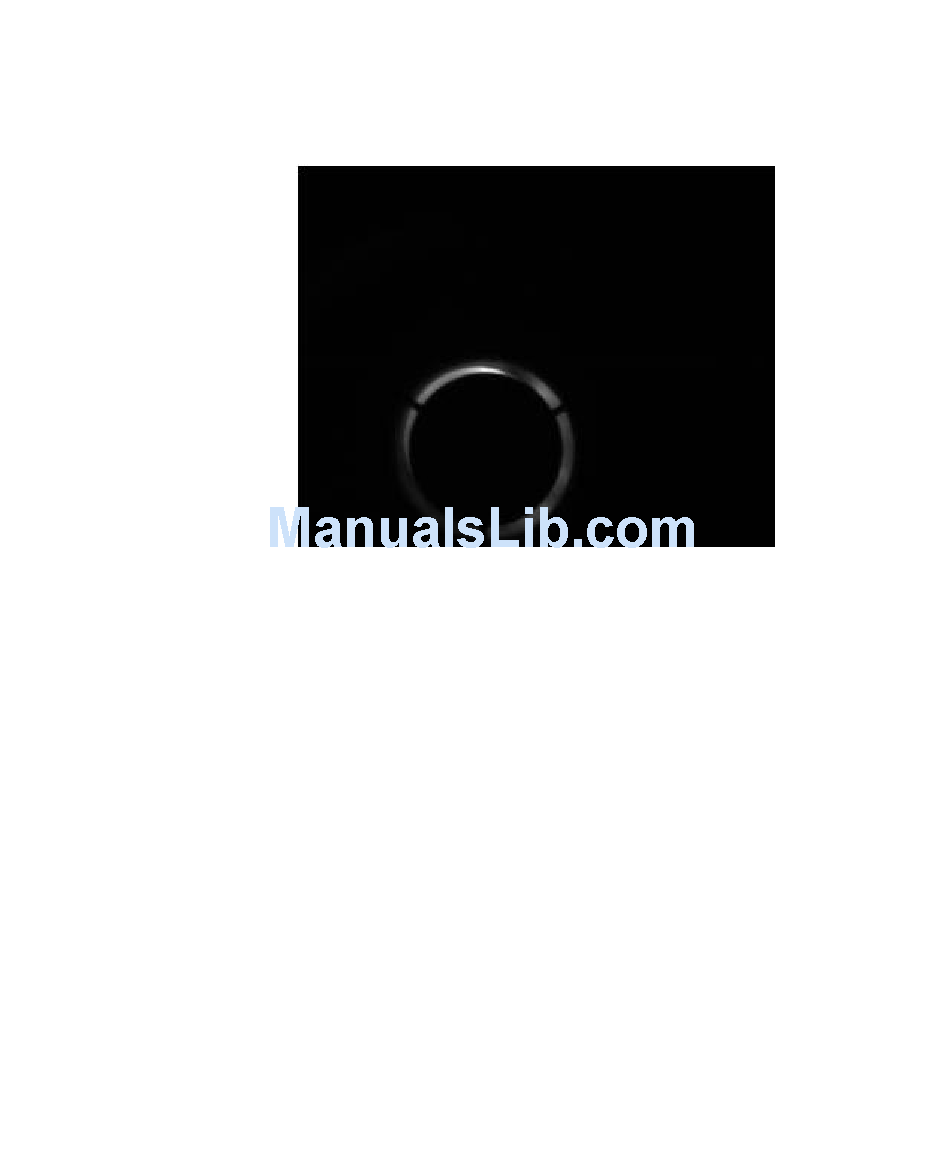

Figure 4-21: Image of condenser annulus ring
16. In the MetaXpress software, click Live Mode in either the
Acquire or Plate Acquisition and Control dialog.
17. Click Regions > Load Regions to load in the saved regions.
18. Using the condenser annulus centering knobs located on the
right top and left top surface of the condenser turret, center the
condenser annulus ring with the objective phase ring. See
Figure 4-22.
Figure 4-21. You might
5014166 D
