ImageXpress Micro High Content Imaging System Options User Guide
32
• Tip stripper. Used for ejecting tips.
• Waste bin. Used to contain ejected tips and discarded liquid.
• Doors with safety interlocks. Prevents doors from being opened
during operation.

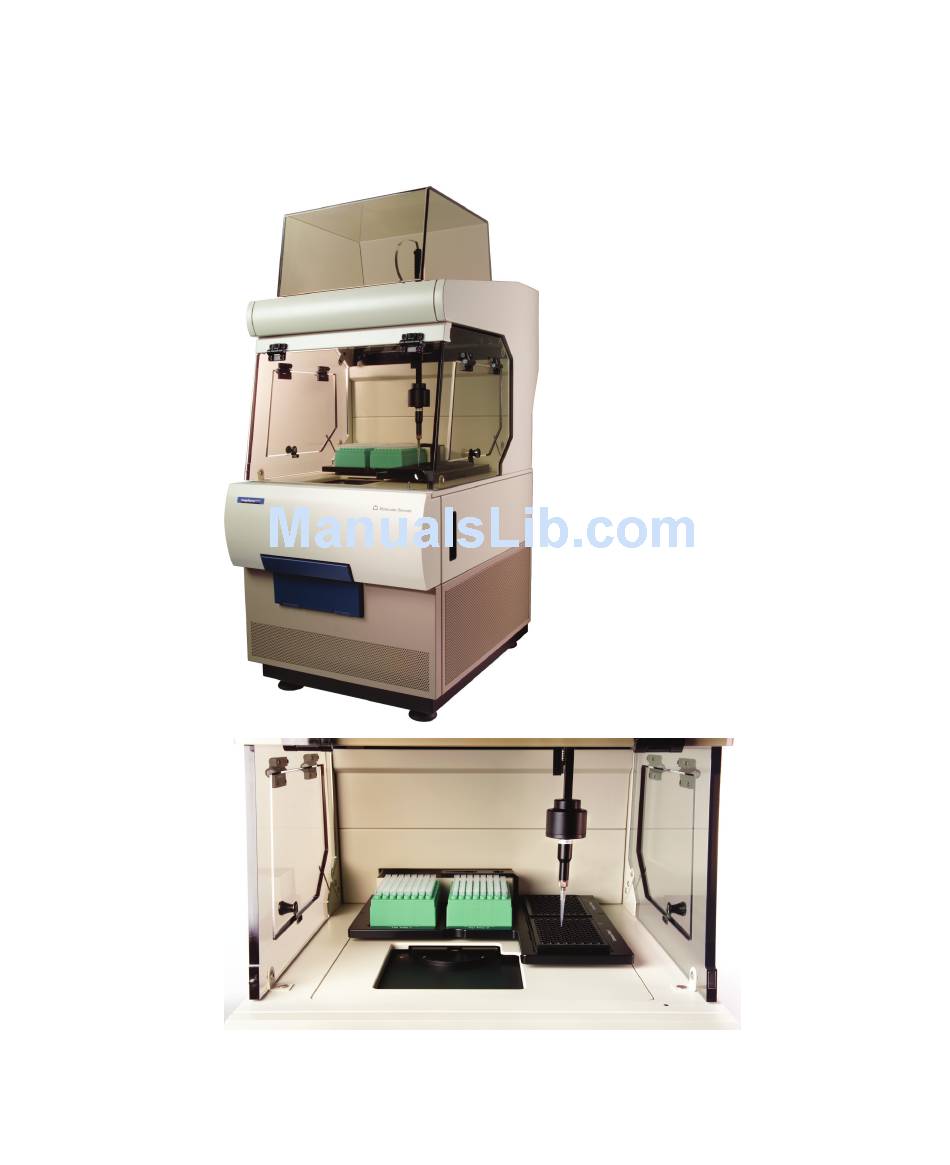

Figure 2-1: Fluidics hardware
5014166 D
