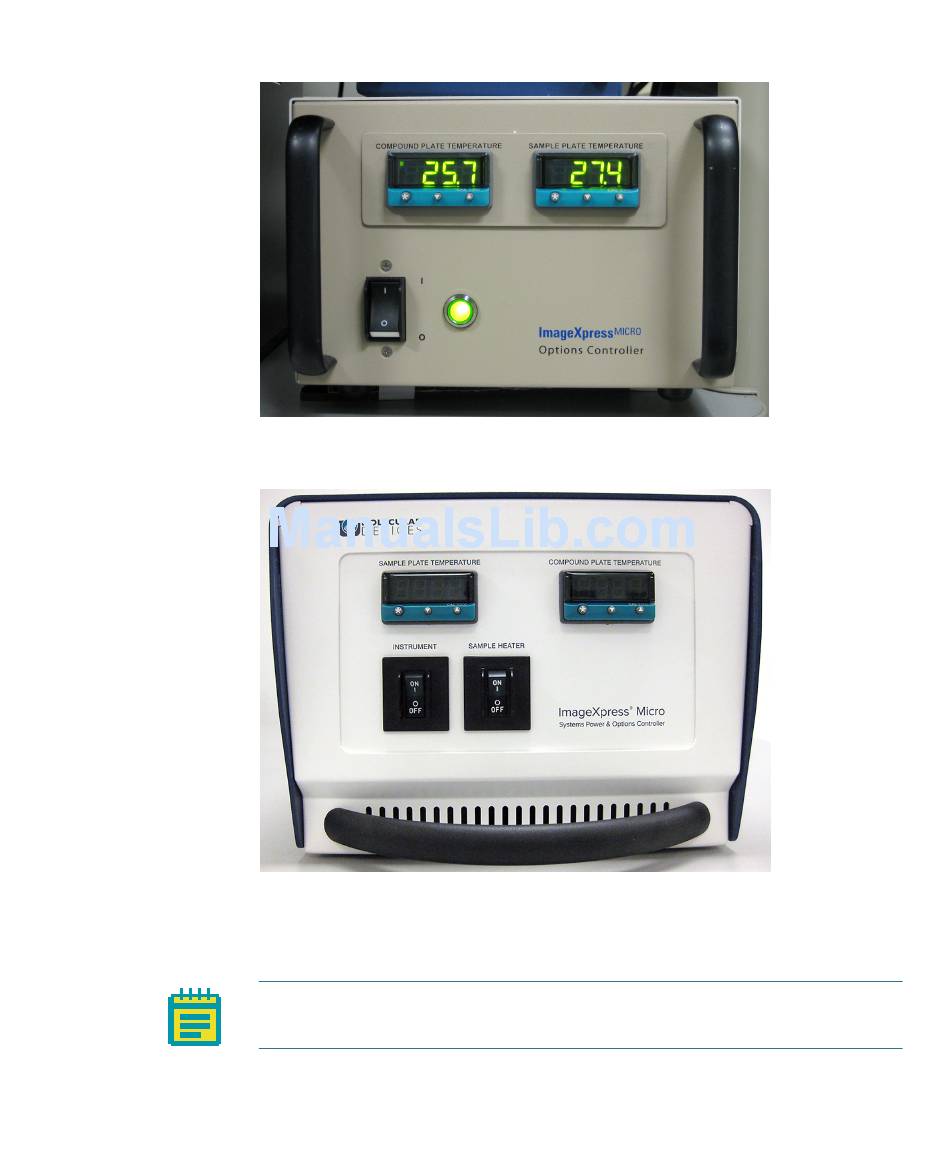

Figure 1-1: Environmental Control Option Controller used for the
ImageXpress Micro Standard and XLS Systems
Figure 1-2: Systems Power & Options Controller used for the
ImageXpress Micro Confocal System
Note: The Compound Plate Temperature setting is available only when
the Fluidics option is also installed.
Environment Control Option Operations
