6. In the IXConfocal Module Emission Wheel Settings dialog, set
the Filter Exchange Mode to Off.

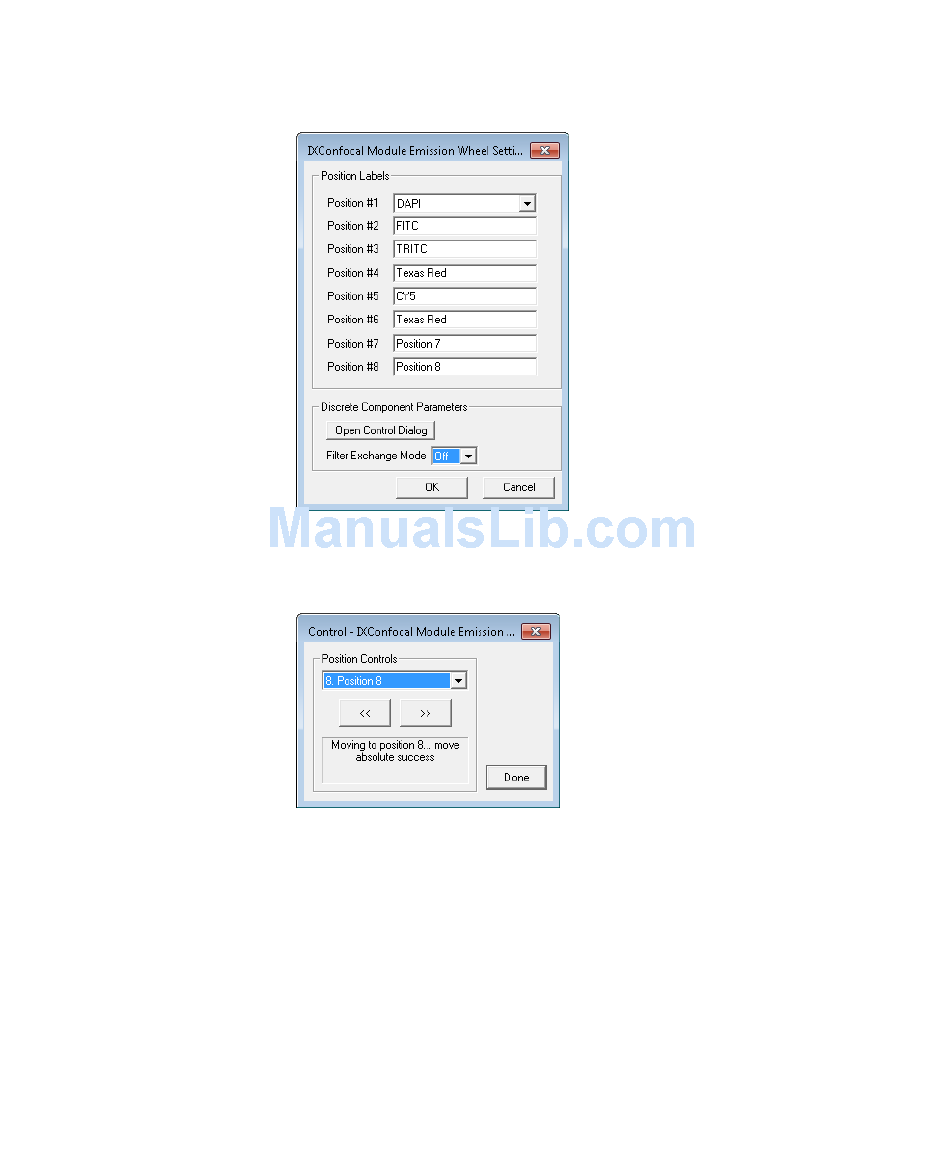

Figure 4-13: The IXConfocal Module Emission Wheel Settings
dialog
7. Click Open Control Dialog.
Figure 4-14: IXConfocal Module Emission Wheel Control dialog
8. From the Position Controls, select the numbered position for the
phase ring adjustment lens.
By default, the phase ring adjustment lens is installed in
position 8.
9. After the wheel moves to the selected position, click Done.
10. Close all open dialogs and exit the MetaXpress Meta Imaging
Series Administrator software.
