Transmitted Light Software Configuration

5014166 D
You can create illumination settings to turn the lamp on and off. Do the
following procedure to create illumination settings named Transmitted
Lamp Off and Transmitted Light, and to set a level for the lamp
illumination.
Tip: Do not turn the transmitted light on and off or adjust the lamp
power during acquisition. Doing so takes a considerable amount of time
and can possibly damage the lamp.
To configure transmitted light settings in the MetaXpress
software
1. In the MetaXpress software, click Devices > Configure
Illumination.
In the simplified menu structure, click Control > Devices >
Configure Illumination.

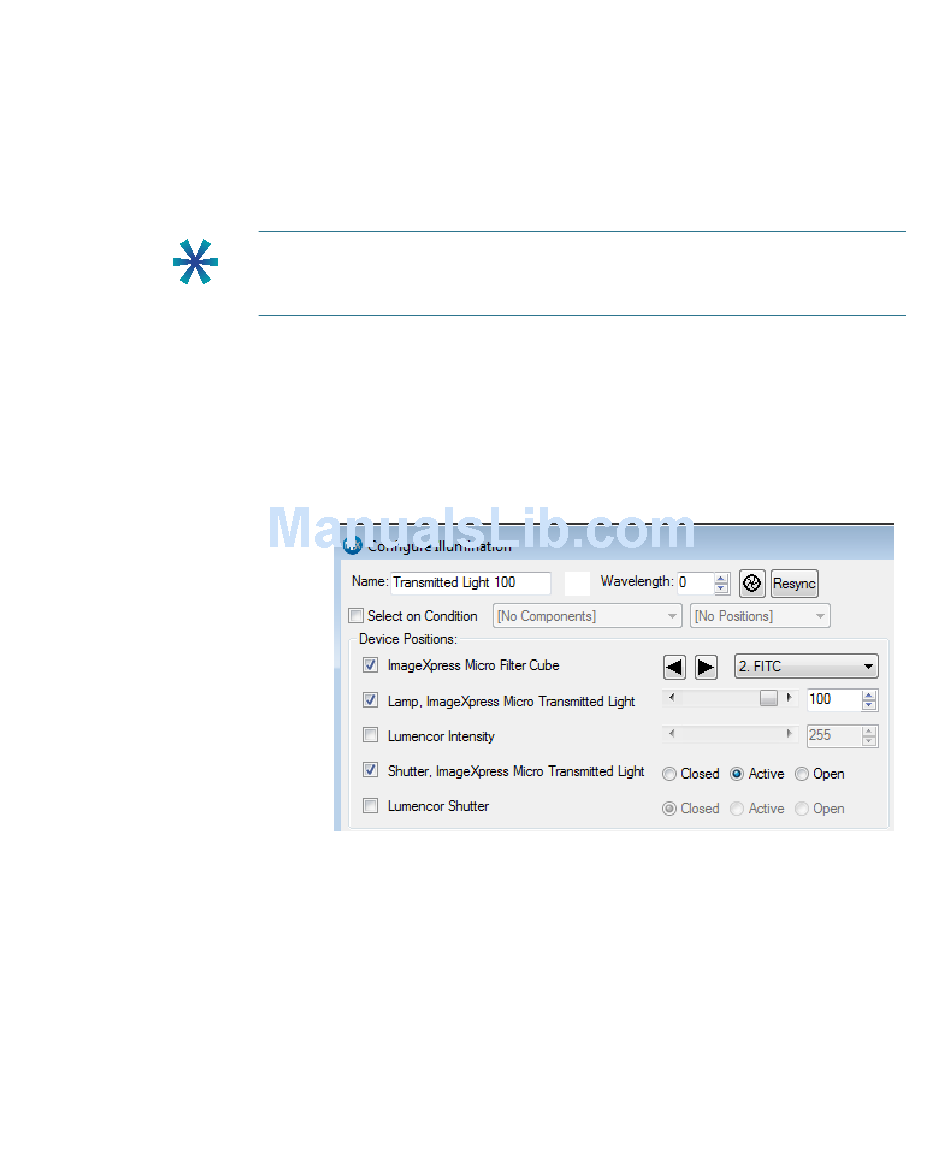

Figure 4-5: Configure Illumination dialog: Lamp On
Transmitted Light Option Operations
