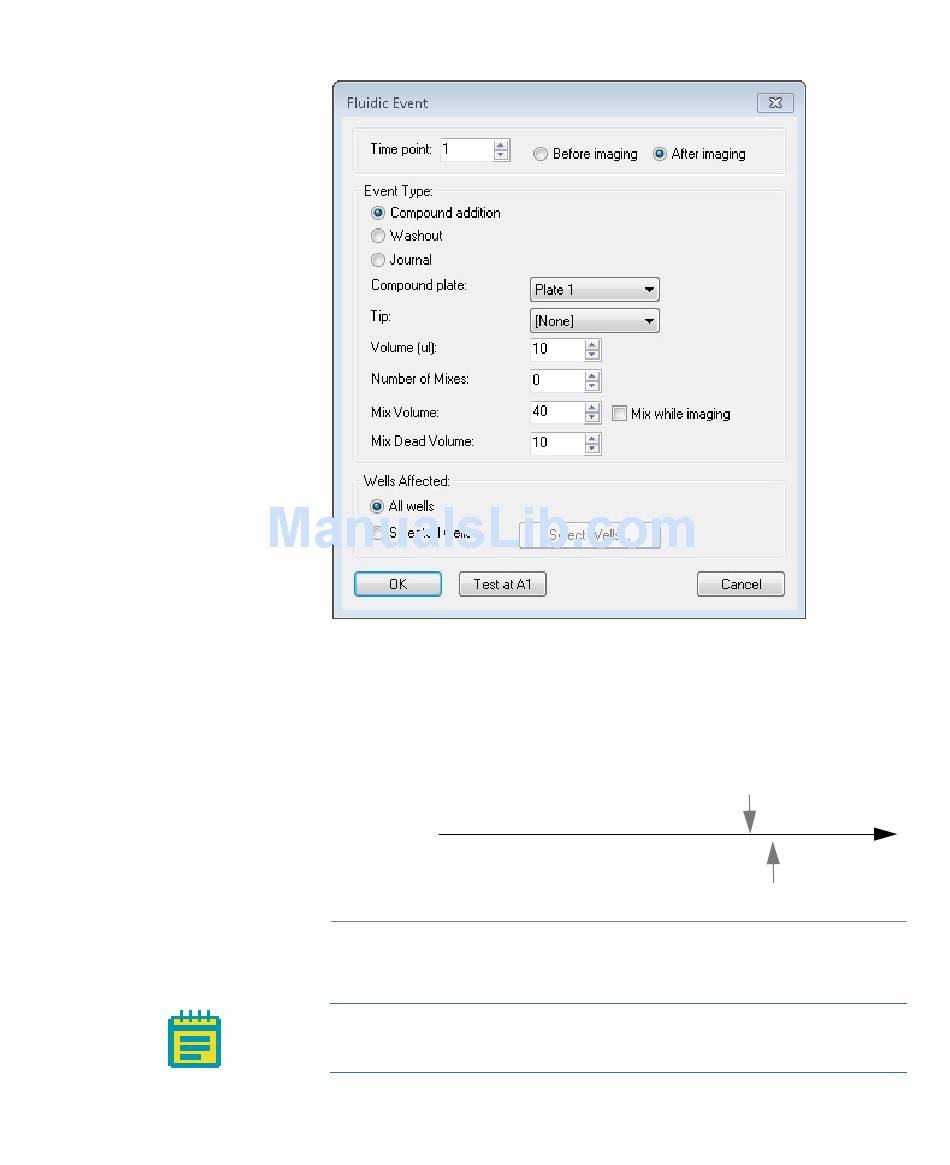

Figure 2-13: Time point setting in Fluidic Event dialog
For example, if you select time point 5 and select Before
imaging, then the fluidic event occurs before the time point. If
you select After imaging, then the fluidic event occurs after the
time point. See Figure 2-14 on page
Time point 1
Figure 2-14: Setting events to occur before and after a time
point
Note: The number of time points is set on the Timelapse tab.
See Doing Timelapse Experiments on page
Fluidics Option Operations
45.
Event occurs before time point
2 3 4
Event occurs after time point
Before imaging
5 N
After imaging
23.
