ImageXpress Micro High Content Imaging System Options User Guide
70

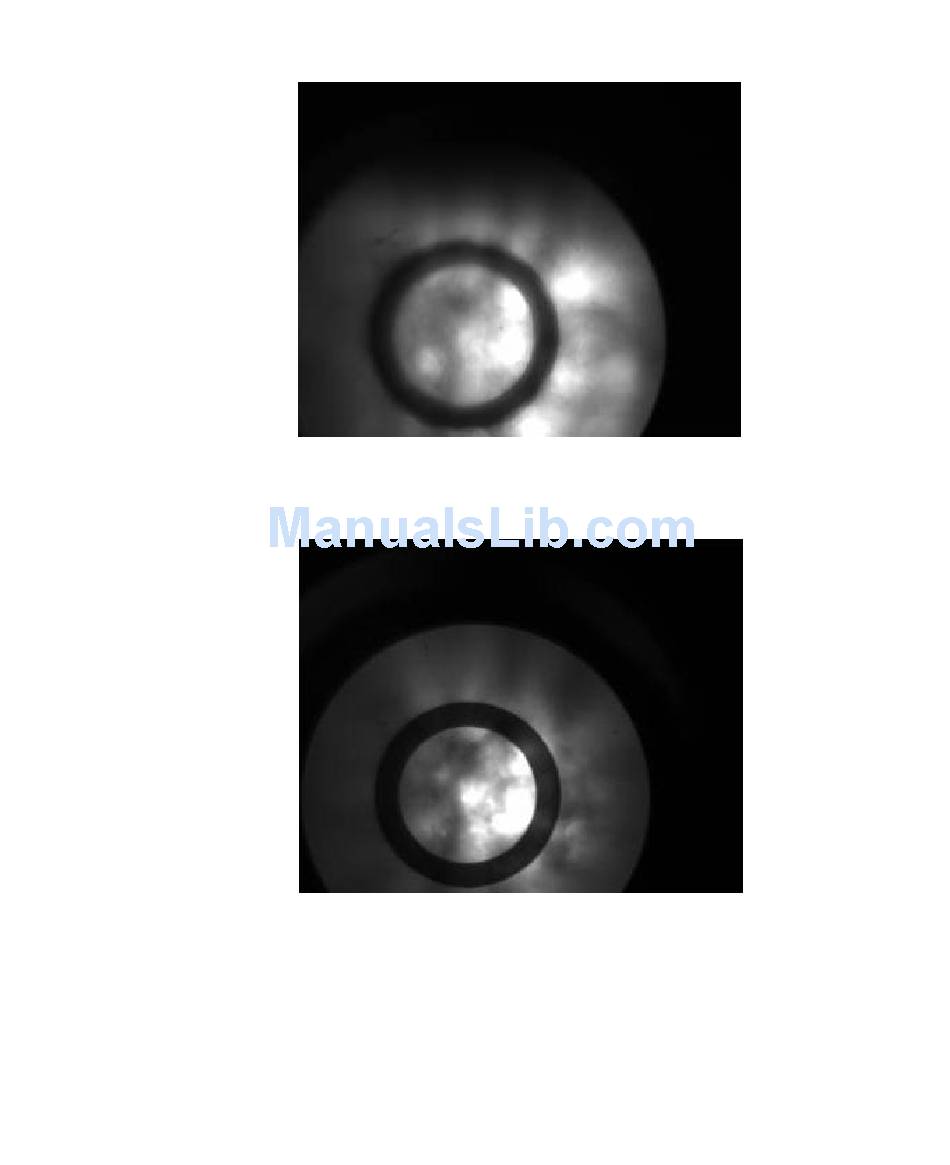

Figure 4-18: Out-of-focus image of phase contrast ring
11. Adjust the position of the Z-stage to obtain a reasonably sharp
image of the objective phase ring.
Figure 4-19: In-focus image of phase contrast ring
5014166 D
