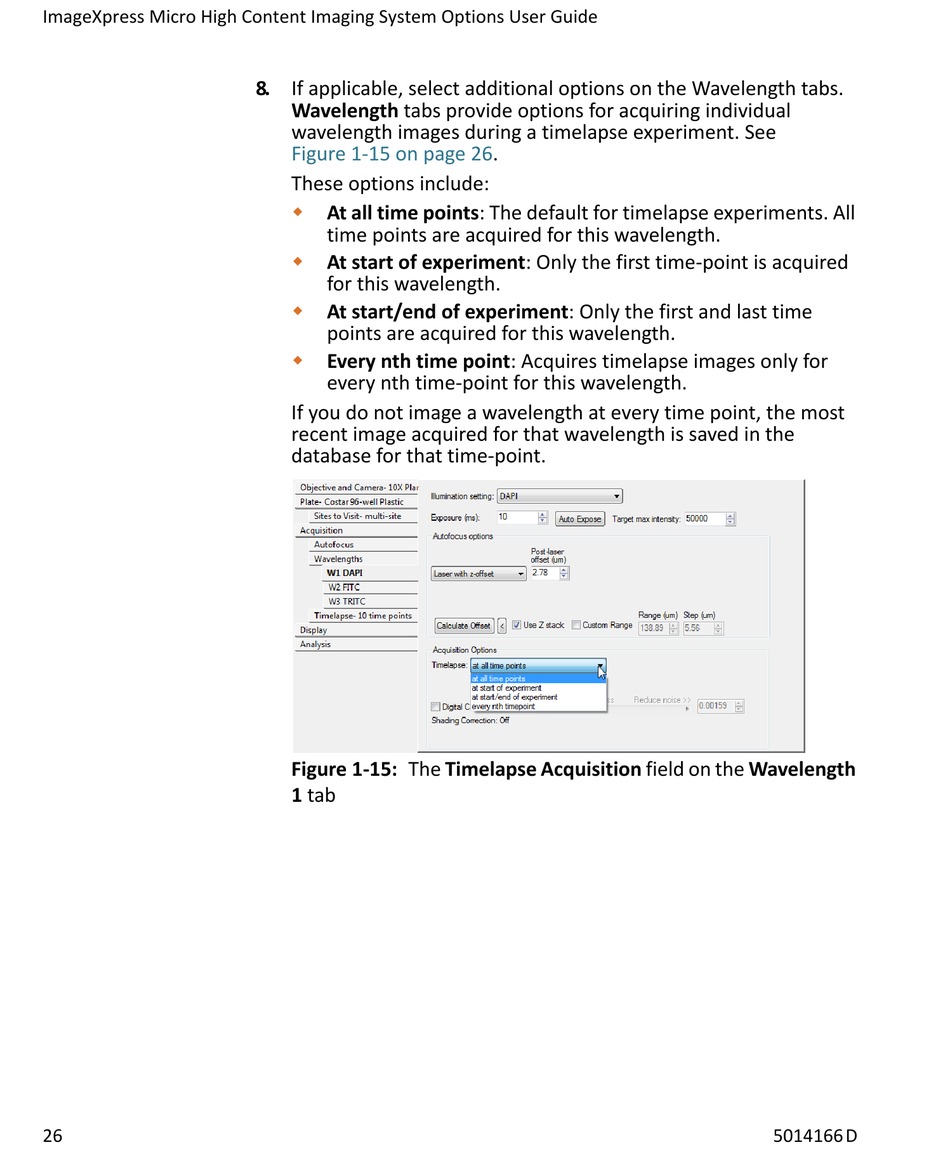

Molecular Devices ImageXpress Micro User Manual page 26

ImageXpress Micro High Content Imaging System Options User Guide
26
8. If applicable, select additional options on the Wavelength tabs.
Wavelength tabs provide options for acquiring individual
wavelength images during a timelapse experiment. See
Figure 1-15 on page
These options include:

At all time points: The default for timelapse experiments. All
time points are acquired for this wavelength.

At start of experiment: Only the first time-point is acquired
for this wavelength.

At start/end of experiment: Only the first and last time
points are acquired for this wavelength.

Every nth time point: Acquires timelapse images only for
every nth time-point for this wavelength.
If you do not image a wavelength at every time point, the most
recent image acquired for that wavelength is saved in the
database for that time-point.
Figure 1-15: The Timelapse Acquisition field on the Wavelength
1 tab
26.
5014166 D
