E.2.1

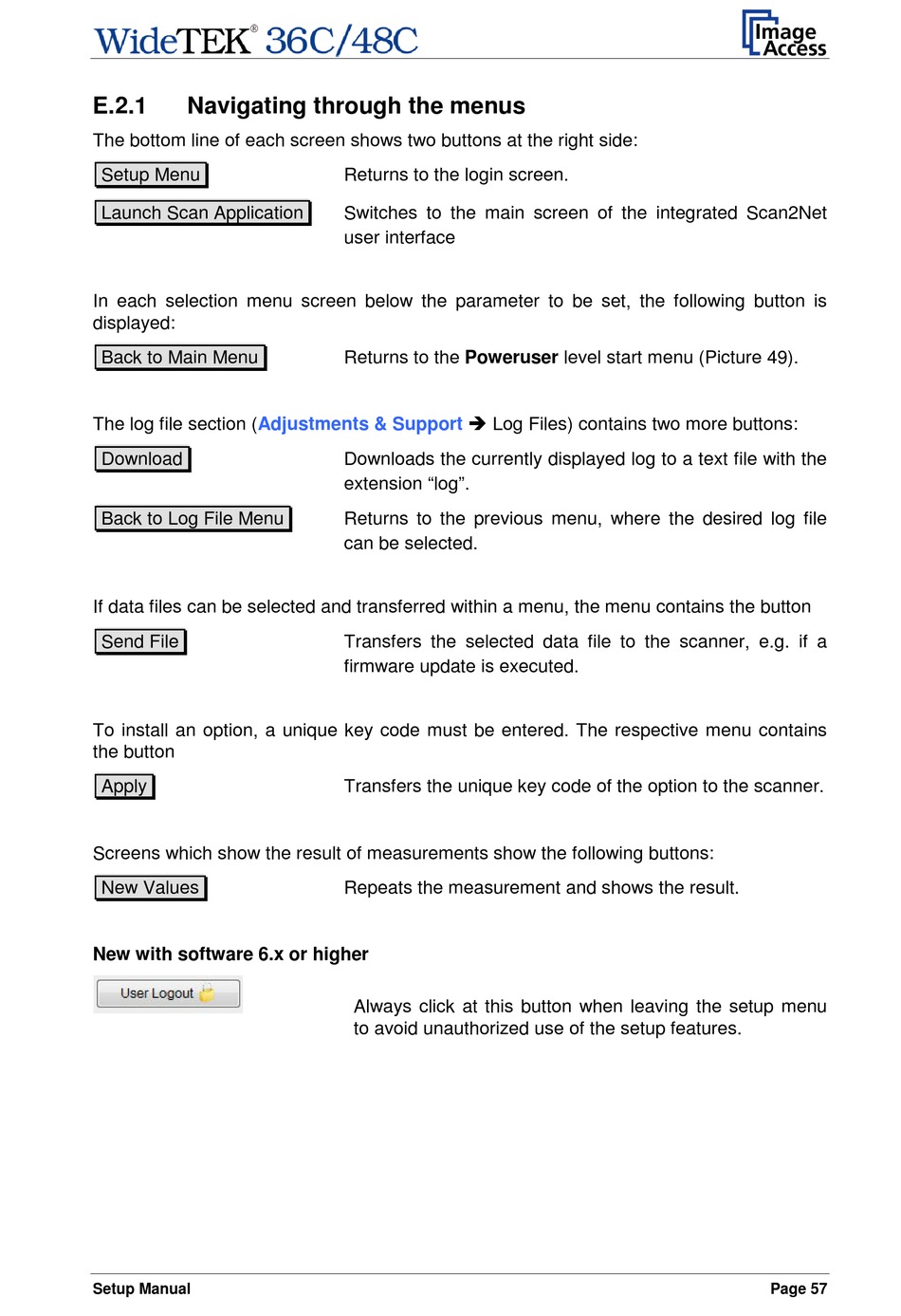

Navigating through the menus

The bottom line of each screen shows two buttons at the right side:
Setup Menu
Launch Scan Application
In each selection menu screen below the parameter to be set, the following button is
displayed:
Back to Main Menu
The log file section (Adjustments & Support
Download
Back to Log File Menu
If data files can be selected and transferred within a menu, the menu contains the button
Send File
To install an option, a unique key code must be entered. The respective menu contains
the button
Apply
Screens which show the result of measurements show the following buttons:
New Values
New with software 6.x or higher
Setup Manual
Returns to the login screen.
Switches to the main screen of the integrated Scan2Net
user interface
Returns to the Poweruser level start menu (Picture 49).
 Log Files) contains two more buttons:
Downloads the currently displayed log to a text file with the
extension "log".
Returns to the previous menu, where the desired log file
can be selected.
Transfers the selected data file to the scanner, e.g. if a
firmware update is executed.
Transfers the unique key code of the option to the scanner.
Repeats the measurement and shows the result.
Always click at this button when leaving the setup menu
to avoid unauthorized use of the setup features.
