Fasten the three components with two screws ISO 4014 – M8x50x22.

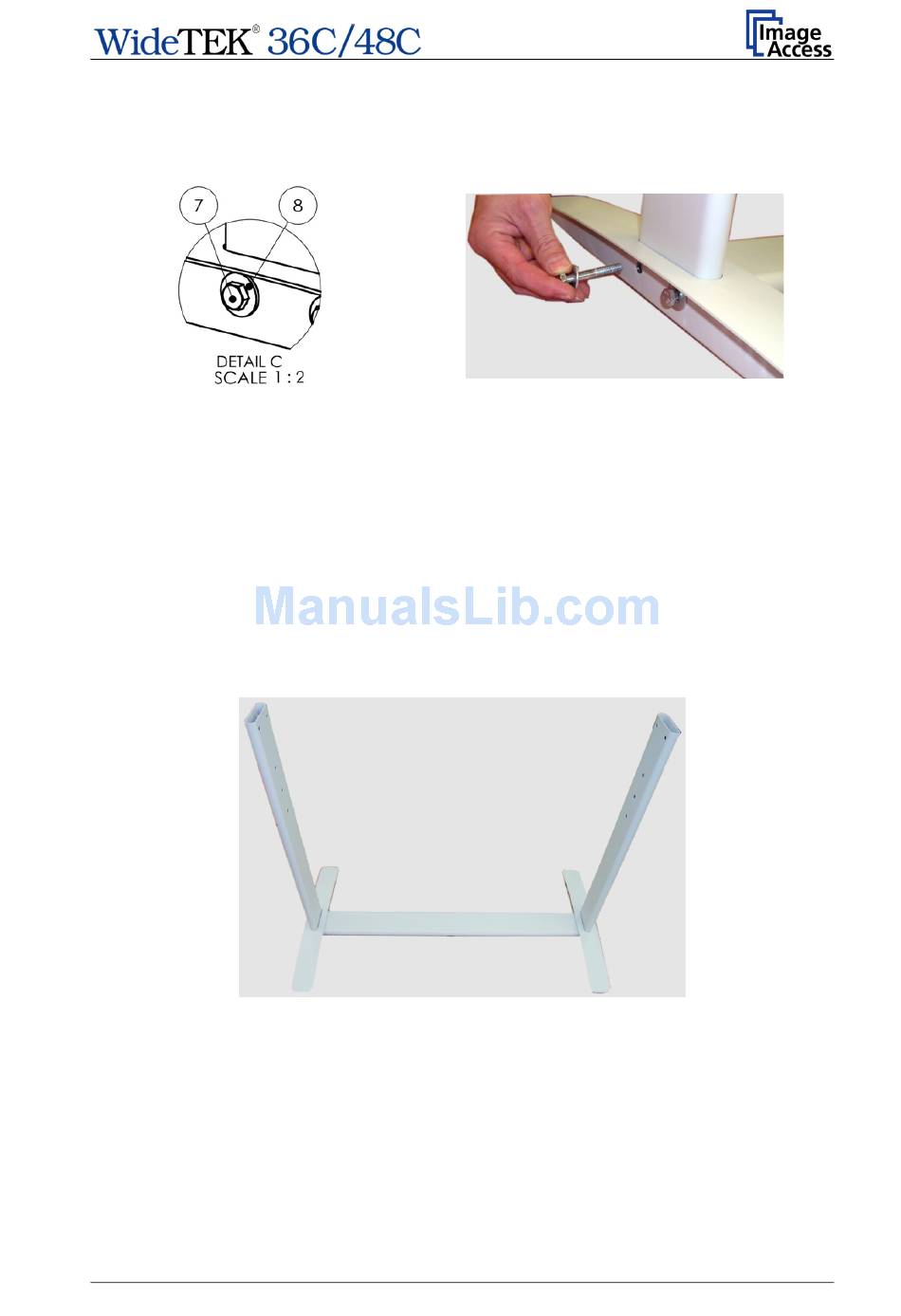

The drawing "Detail C" shows, how the screw (item #7) and washer (item #8) must be
combined.

Picture 20: Drawing "Detail C"

Tighten the screws with the combination wrench, size 13, which comes with the floor
stand.
Note:
All screws should only be hand-tightened at first. The components should be a
little movable against each other until all parts are assembled.
Repeat the steps described above with the second crossbeam foot and the second
vertical leg.
Picture 22 shows the floor stand after the previously described assembly steps.

Picture 22: Bottom and side components assembled

Setup Manual

Picture 21: Inserting screws with washer

Page 31
