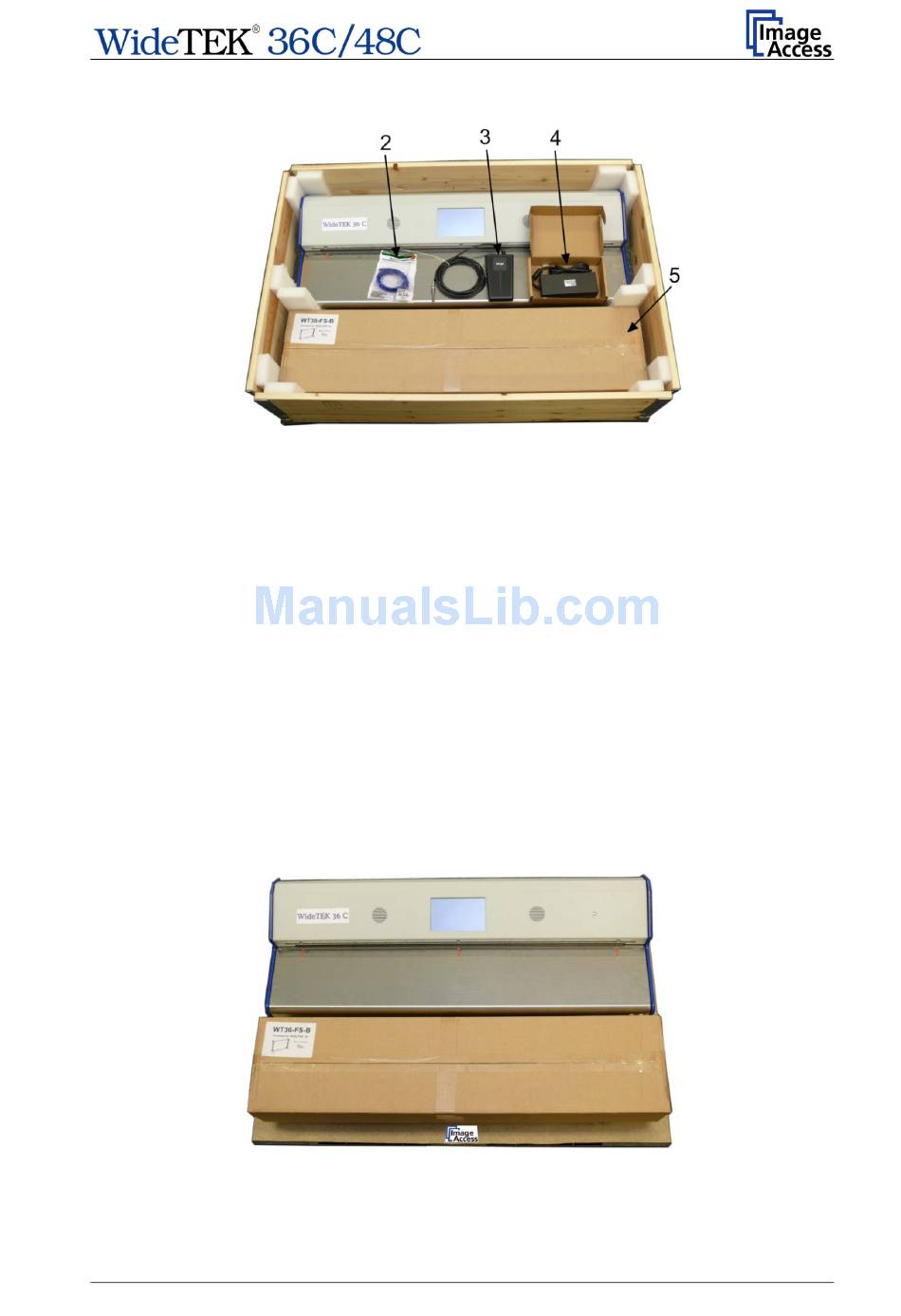

Picture 3: Parts In The Transport Box; Picture 4: Wooden Frame Remove - Image Access Wide Tek WT 36C Setup Manual

Remove the paper output tray and the foam mat to get access to the next parts.
2. Patch cable
3. Foot pedal switch
4. External power supply with power connector cable
5. Floor stand in cardboard box
Also contained (but not visible at the picture):
−
Reference folder with IT8- and CSTT test targets
−
Operation Manual / Setup Manual
−
Two plastic bags with Document Return and installation instructions
−
White Reference Target
Take the parts out of the transport box.
Remove the six foam inserts beside the scanner and the cardboard box.
Lift the wooden frame from the palett.
The scanner and the floor stand cardboard box can now be lifted from the pallet.
Setup Manual

Picture 3: Parts in the transport box

Picture 4: Wooden frame remove

Page 19
