Fuel Tank - Sym PA12B Service Manual

Fuel Tank

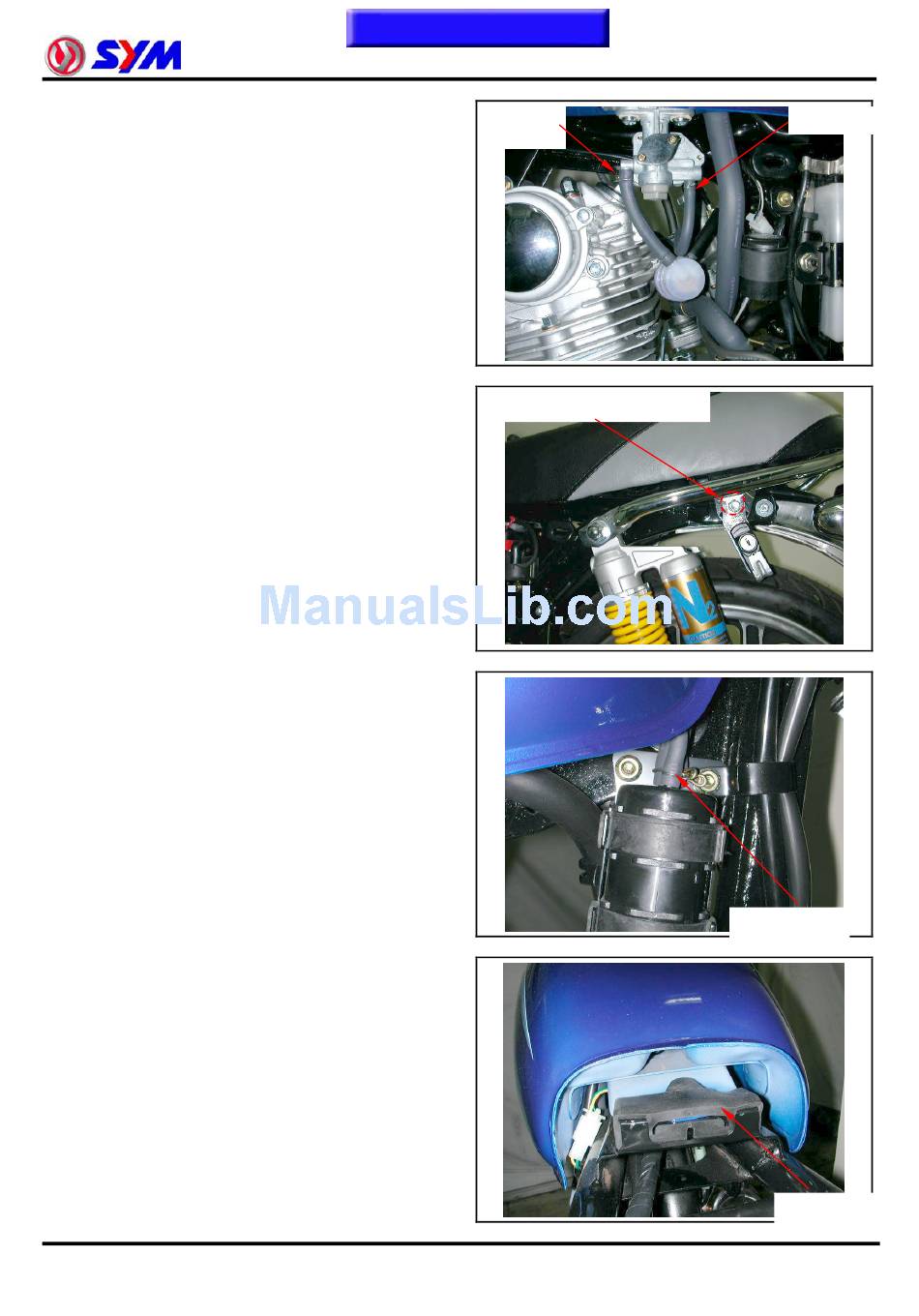

Fuel tank removal
Manual fuel cock
Turn off the fuel cock switch, and disassemble
the outlet fuel tube.
Vacuum operated automatic fuel cock
Disassemble the outlet fuel tube and the
vacuum tube.
Remove the seat(Bolts×2)。
Disassemble the fuel-vapor tube to the carbon
canister.
Take out the fixing rubber cushion behind the
fuel tank.
To this chapter contents
Outlet fuel
tube
One bolts on each side
3. Fuel System
Vacuum tube
Fuel vapor tube
Rubber cushion
