3. Fuel System

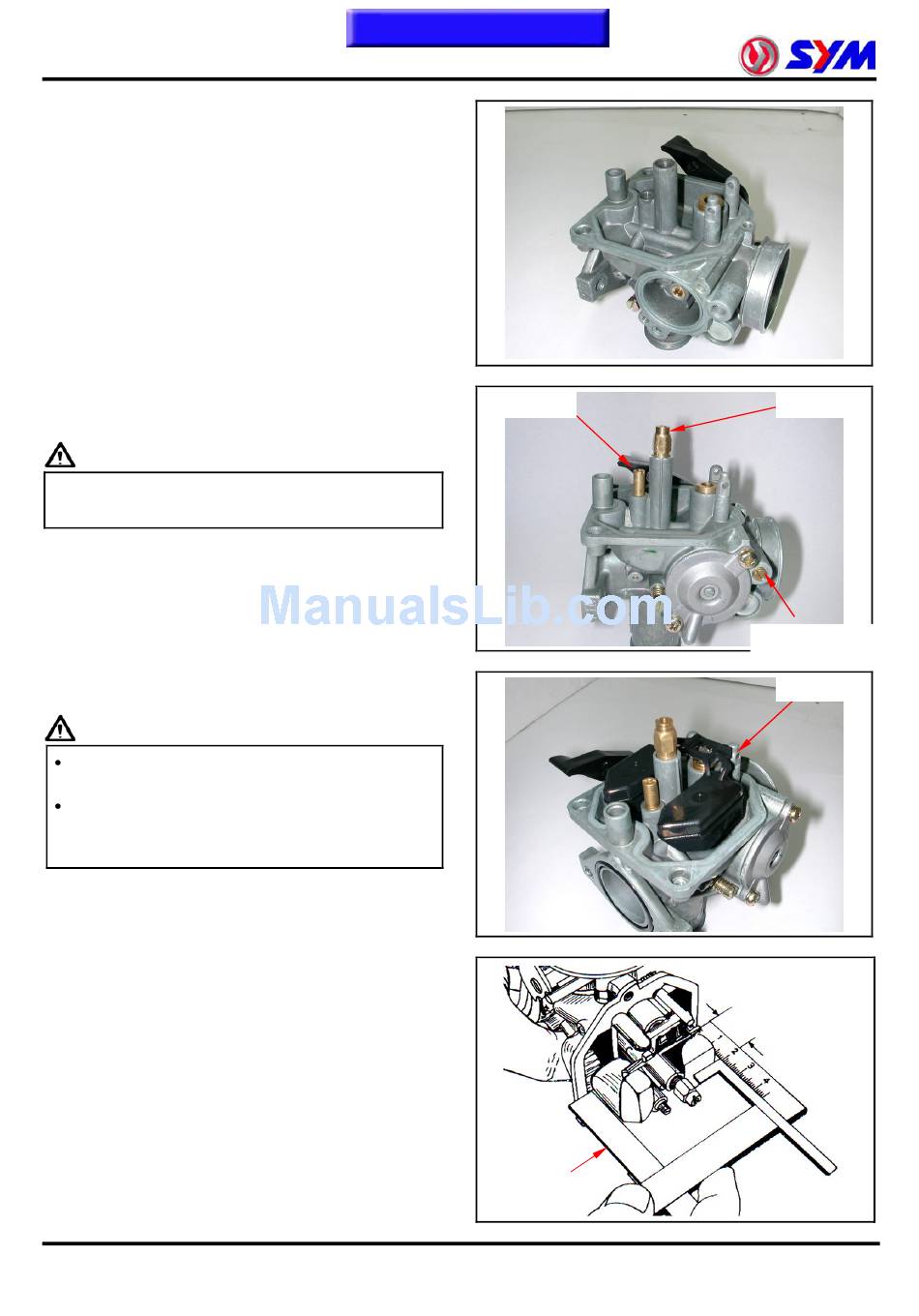

Assemble
Before assembling, please blow the fuel
passages with compressed air.
Assemble the main jet, jet holder, nozzle, slow
jet, and the air screw.
Caution
Please assemble the air screw with the
●
same setting circles as removal.
Assemble the float valve, float, float pin. After
confirming the fuel level, assemble the float
chamber cover (3 screws).
Checking fuel level
Caution
Check the float valve and float for proper
installation.
To get the correct reading, position the
float meter in the way that float chamber
face is vertical to the main jet.
Fuel level：14.8mm

Carburetor Installation

Install carburetor in the reverse order of
removal.
Following adjustments must be made after
installation.
Throttle cable free play adjustment.
●
Idle adjustment
●
3-8
To this chapter contents
Slow jet
Float level
gauge
Main jet
Air adjustment
screw
Float pin
