Flashforge Creator Pro User Manual page 25

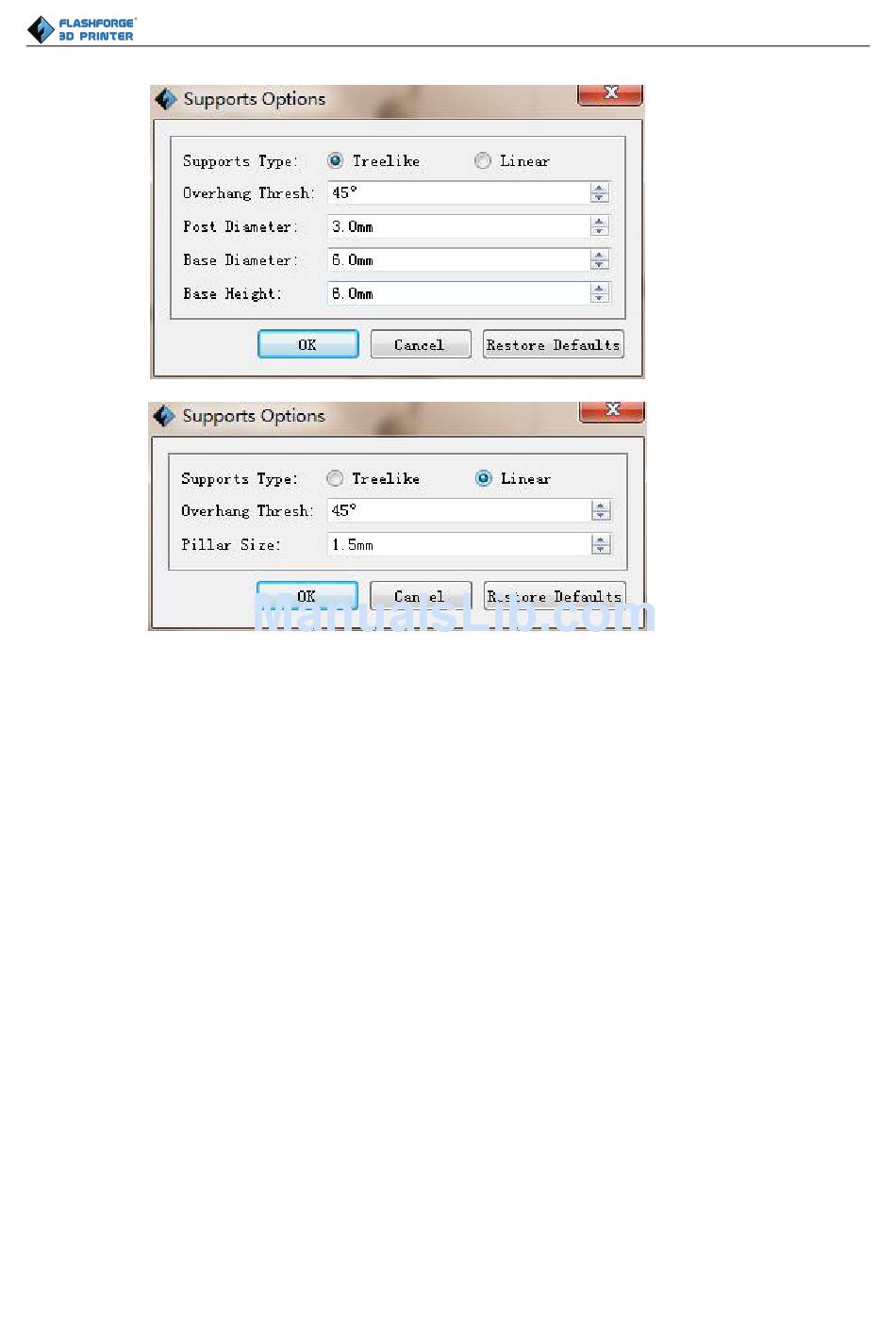

②Auto Supports
[Auto Supports]
Click the
and generate corresponding treelike or linear supports. If the model already had support, the
existing supports will be deleted and new supports will be generated.
③Add Supports
Supports will be added once clicking the
supports, left-click to choose the starting point of supports, hold down the left mouse button and
drag the mouse the supports preview will show up(if support surface doesn't need support or the
support column angle is too large, will highlight the support review ).Loosen the left mouse button,
if support column doesn't meet with model, then support will be generated on origin and terminal
point(the highlighted preview support won't generate support structure )
5-6
button, the software will judge the position where supports are needed
[Add] button. Move the cursor to the position where needs
25
