2. Overview

2.1

Block Diagram

8271D–AVR–05/11
ATmega48A/PA/88A/PA/168A/PA/328/P
The ATmega48A/PA/88A/PA/168A/PA/328/P is a low-power CMOS 8-bit microcontroller based
on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock
cycle, the ATmega48A/PA/88A/PA/168A/PA/328/P achieves throughputs approaching 1 MIPS
per MHz allowing the system designer to optimize power consumption versus processing speed.

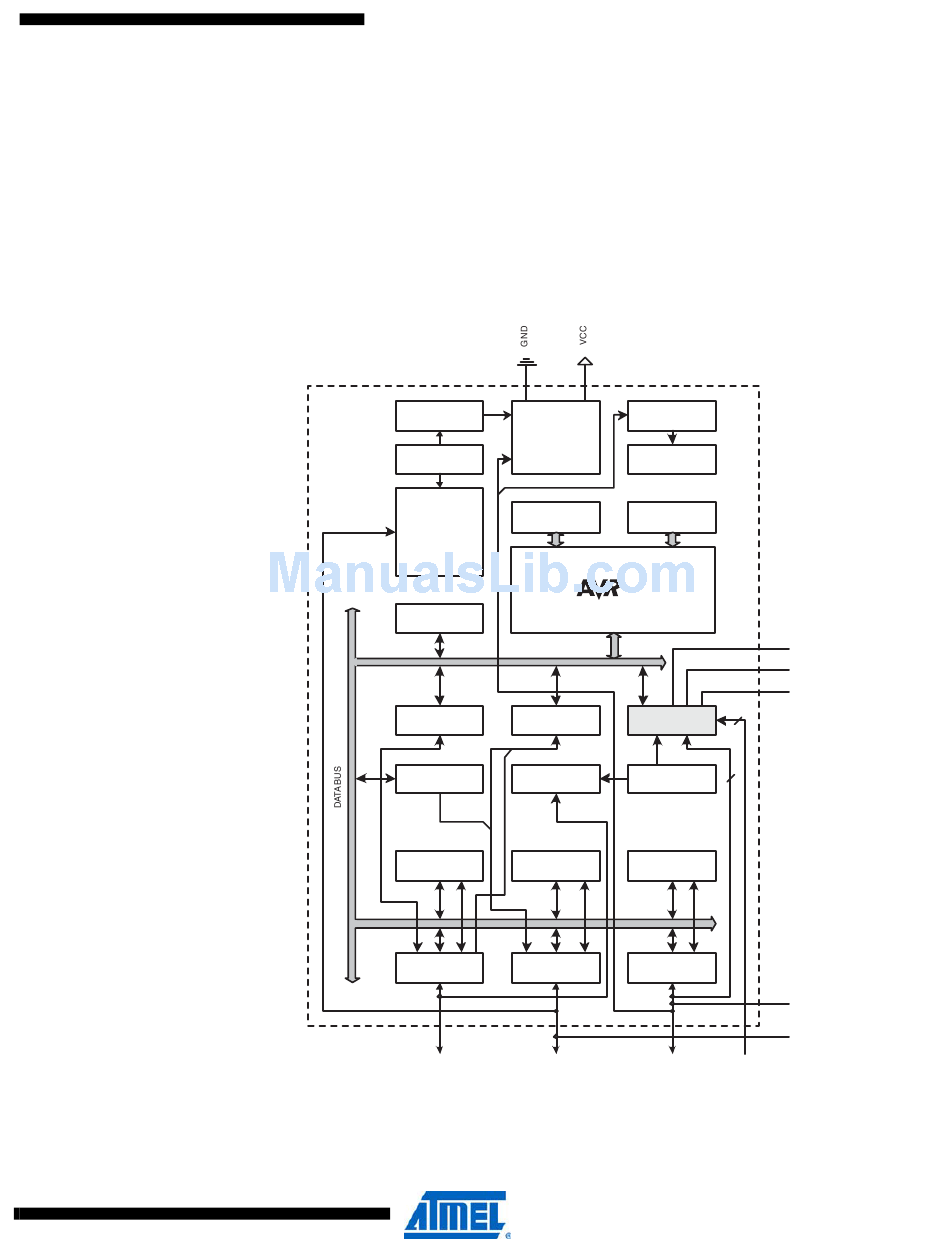

Figure 2-1. Block Diagram
The AVR core combines a rich instruction set with 32 general purpose working registers. All the
32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent
registers to be accessed in one single instruction executed in one clock cycle. The resulting
Watchdog
Power
Timer
Supervision
POR / BOD &
Watchdog
RESET
Oscillator
Oscillator
Flash
Circuits /
Clock
Generation
EEPROM
8bit T/C 0 16bit T/C 1
Analog
8bit T/C 2
Comp.
USART 0 SPI
PORT D (8) PORT B (8)
PD[0..7] PB[0..7]
debugWIRE
PROGRAM
LOGIC
SRAM
CPU
AVCC
AREF
GND
2
A/D Conv.
Internal
6
Bandgap
TWI
PORT C (7)
RESET
XTAL[1..2]
PC[0..6] ADC[6..7]
5
