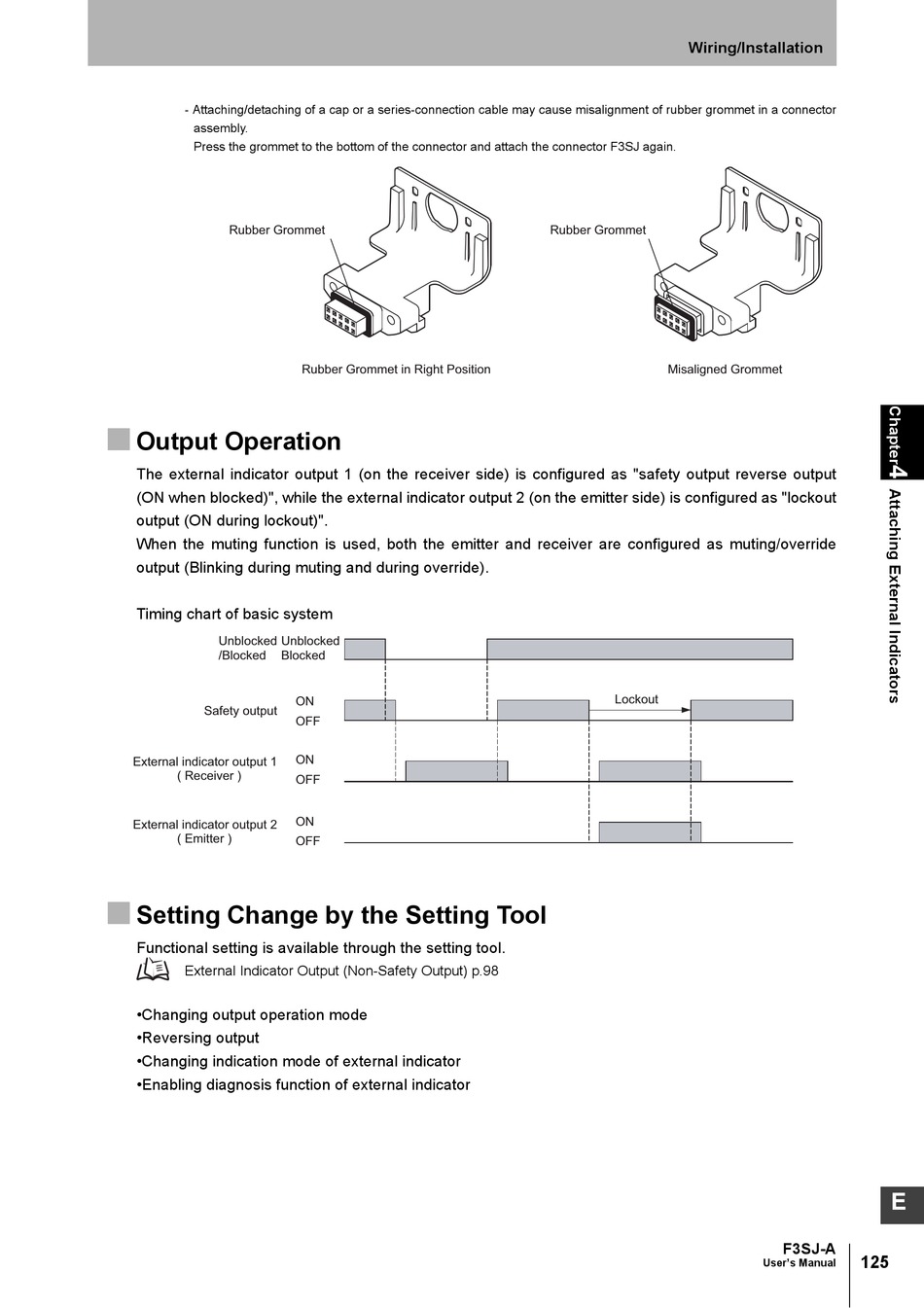

Output Operation; Setting Change By The Setting Tool - Omron F3SJ Series Original Instructions Manual

- Attaching/detaching of a cap or a series-connection cable may cause misalignment of rubber grommet in a connector
assembly.
Press the grommet to the bottom of the connector and attach the connector F3SJ again.
Rubber Grommet


Output Operation

The external indicator output 1 (on the receiver side) is configured as "safety output reverse output
(ON when blocked)", while the external indicator output 2 (on the emitter side) is configured as "lockout
output (ON during lockout)".
When the muting function is used, both the emitter and receiver are configured as muting/override
output (Blinking during muting and during override).
Timing chart of basic system
Unblocked
/Blocked
Safety output
External indicator output 1
( Receiver )
External indicator output 2
( Emitter )


Setting Change by the Setting Tool

Functional setting is available through the setting tool.
External Indicator Output (Non-Safety Output) p.98
•Changing output operation mode
•Reversing output
•Changing indication mode of external indicator
•Enabling diagnosis function of external indicator
Rubber Grommet in Right Position
Unblocked
Blocked
ON
OFF
ON
OFF
ON
OFF
Wiring/Installation
Rubber Grommet
Misaligned Grommet
Lockout
E
F3SJ-A
