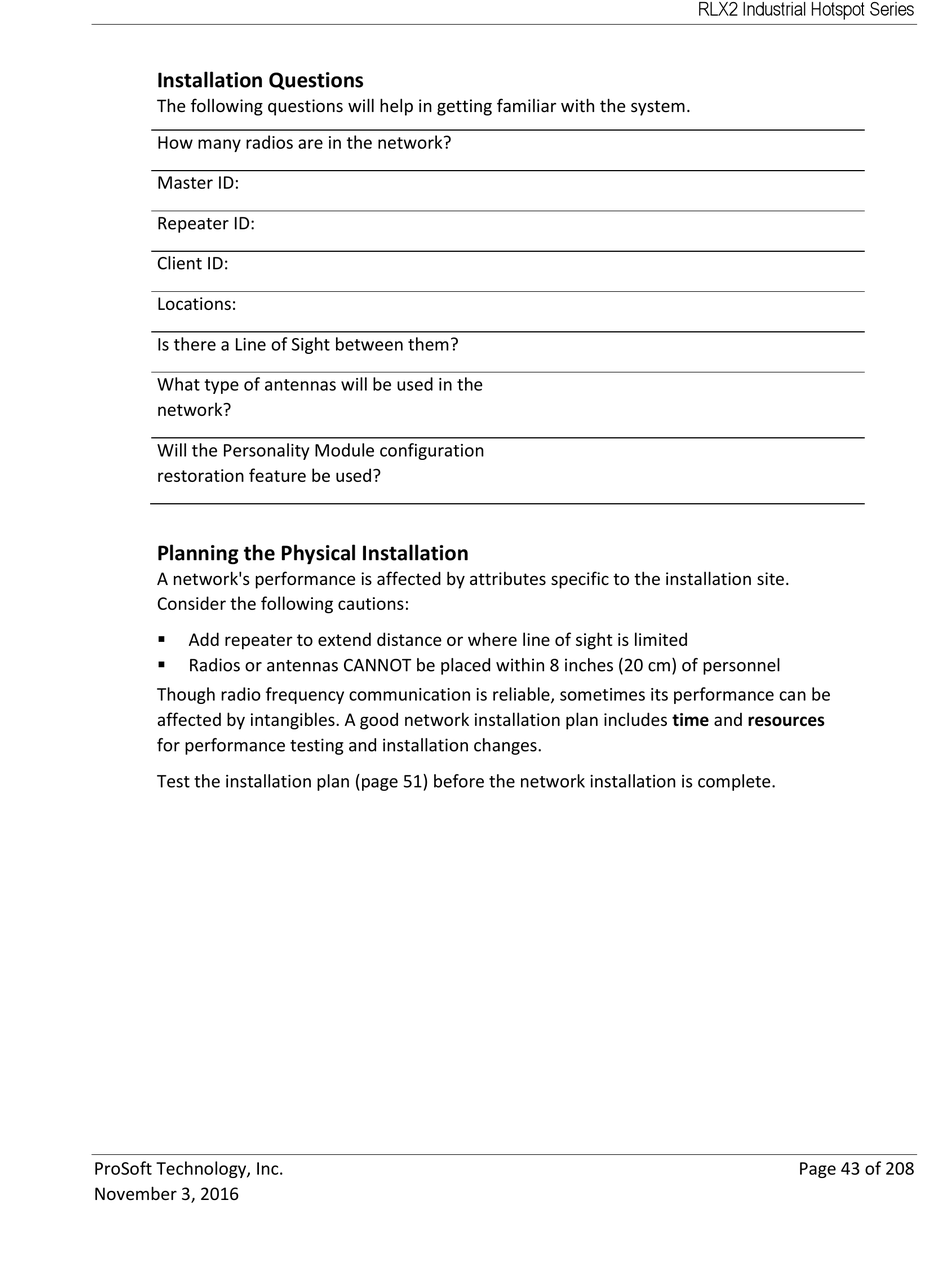

Installation Questions

The following questions will help in getting familiar with the system.
How many radios are in the network?
Master ID:
Repeater ID:
Client ID:
Locations:
Is there a Line of Sight between them?
What type of antennas will be used in the
network?
Will the Personality Module configuration
restoration feature be used?

Planning the Physical Installation

A network's performance is affected by attributes specific to the installation site.
Consider the following cautions:

Add repeater to extend distance or where line of sight is limited

Radios or antennas CANNOT be placed within 8 inches (20 cm) of personnel
Though radio frequency communication is reliable, sometimes its performance can be
affected by intangibles. A good network installation plan includes time and resources
for performance testing and installation changes.
Test the installation plan (page 51) before the network installation is complete.
