RLX2 Industrial Hotspot Series

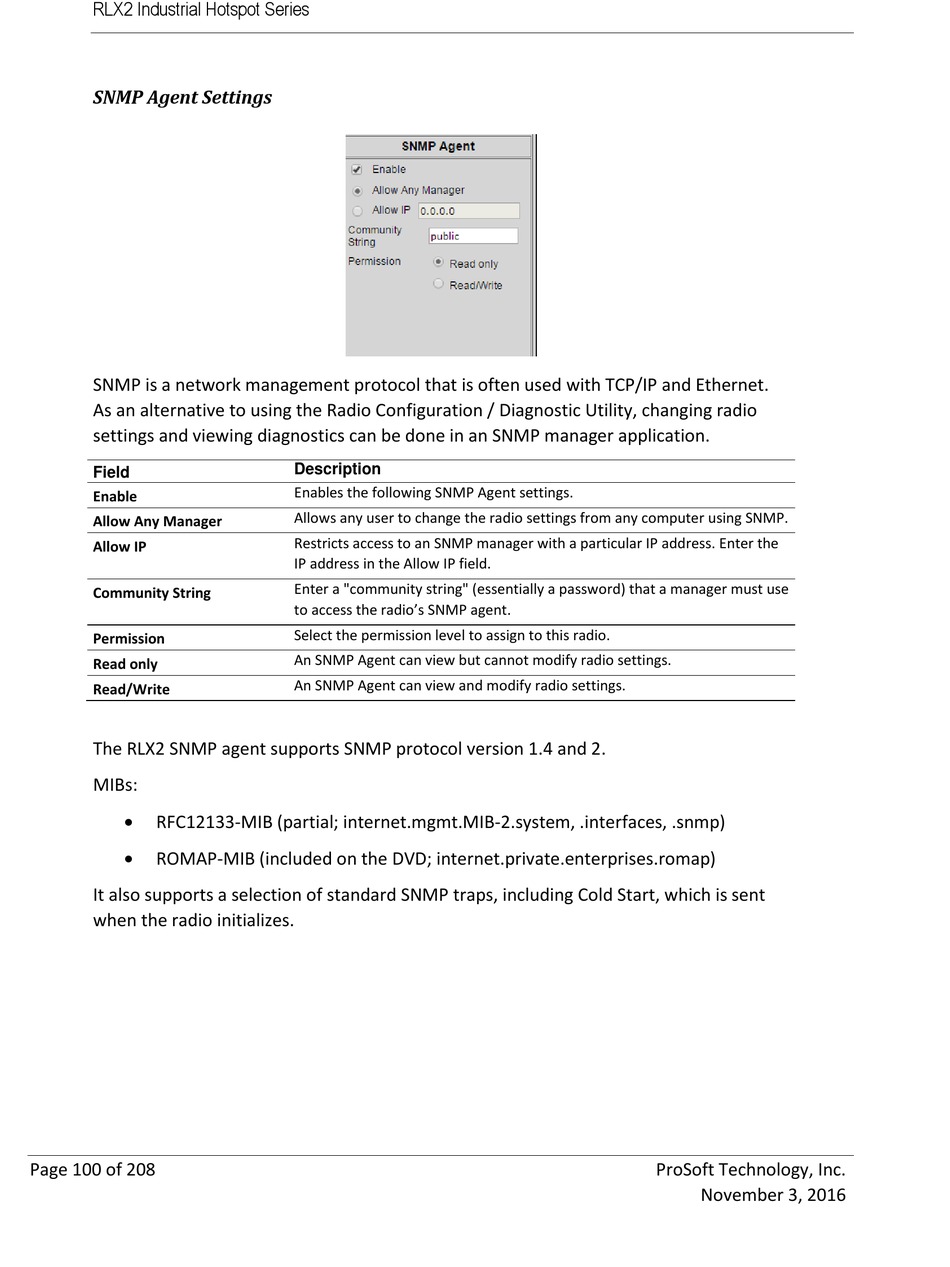

SNMP Agent Settings
SNMP is a network management protocol that is often used with TCP/IP and Ethernet.
As an alternative to using the Radio Configuration / Diagnostic Utility, changing radio
settings and viewing diagnostics can be done in an SNMP manager application.
Field
Enable
Allow Any Manager
Allow IP
Community String
Permission
Read only
Read/Write
The RLX2 SNMP agent supports SNMP protocol version 1.4 and 2.
MIBs:

RFC12133-MIB (partial; internet.mgmt.MIB-2.system, .interfaces, .snmp)

ROMAP-MIB (included on the DVD; internet.private.enterprises.romap)
It also supports a selection of standard SNMP traps, including Cold Start, which is sent
when the radio initializes.
Page 100 of 208
Description
Enables the following SNMP Agent settings.
Allows any user to change the radio settings from any computer using SNMP.
Restricts access to an SNMP manager with a particular IP address. Enter the
IP address in the Allow IP field.
Enter a "community string" (essentially a password) that a manager must use
to access the radio's SNMP agent.
Select the permission level to assign to this radio.
An SNMP Agent can view but cannot modify radio settings.
An SNMP Agent can view and modify radio settings.
