R L X 2 V
F
U N C T I O N A L I T Y
Virtual Local Area Networks (VLANs) are typically used for segmentation of core network
components and network access rules. A VLAN provides the equivalent of a wired patch
panel through software (packet filtering) rather than hardware (physical wires).
Constraining data to a particular Virtual LAN requires a process of VLAN Tagging. VLAN
Tagging simply adds extra information in the packet header of Ethernet frames so VLAN-
enabled switches know how to pass along the data.
The RLX2 (v33 and later) provides:


Transparent support of VLAN tags (802.1Q)


Port/Radio-based VLAN tagging with Managed Switches

Port/Radio-based VLAN tagging without Managed Switches
Transparent Support of VLAN Tags (802.1Q)

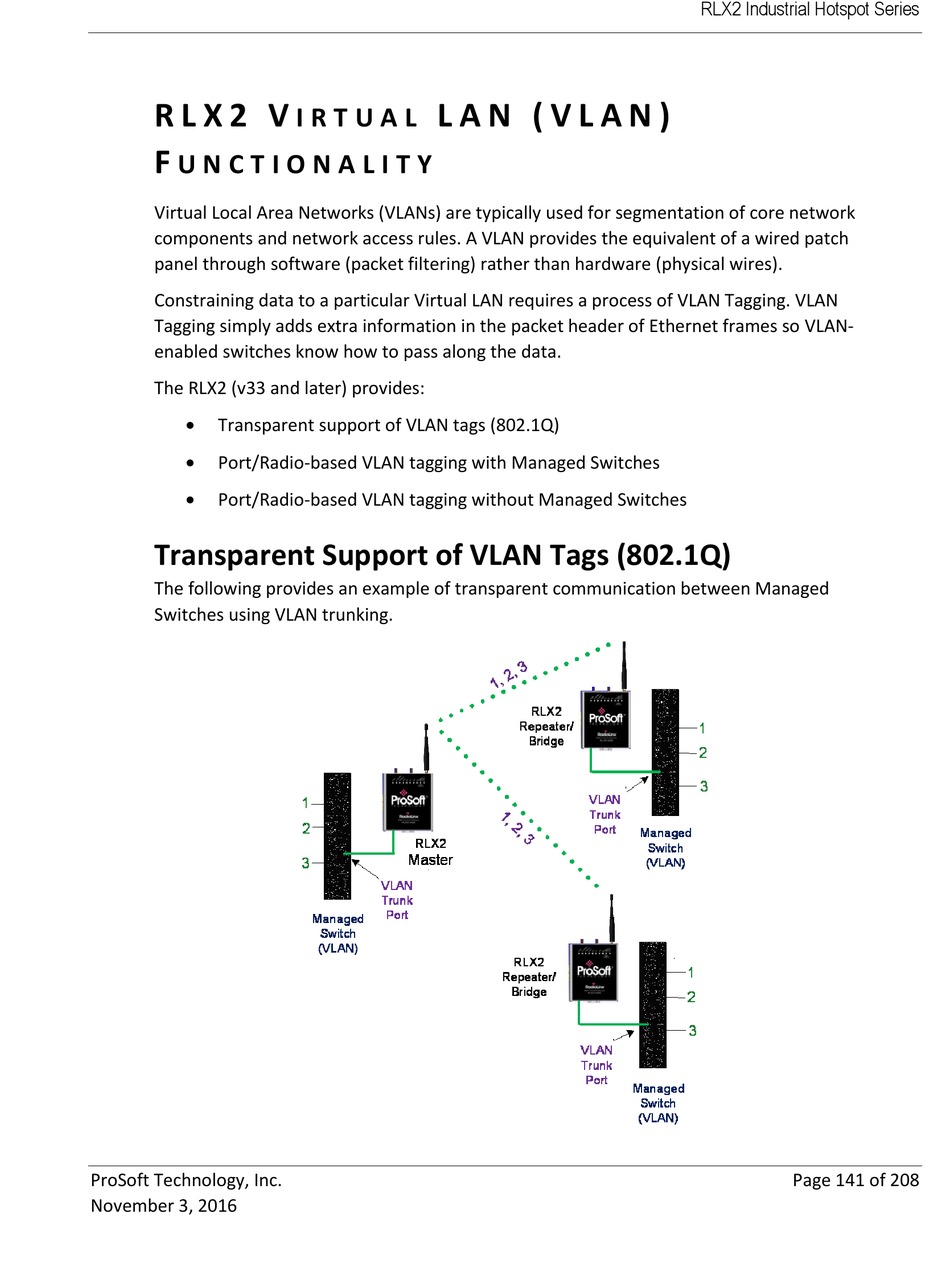

The following provides an example of transparent communication between Managed
Switches using VLAN trunking.
ProSoft Technology, Inc.
November 3, 2016
L A N ( V L A N )
I R T U A L
RLX2 Industrial Hotspot Series
Page 141 of 208
