RLX2 Industrial Hotspot Series

Radio Hardware

Radio Power Requirements (RLX2-IHNF-W)

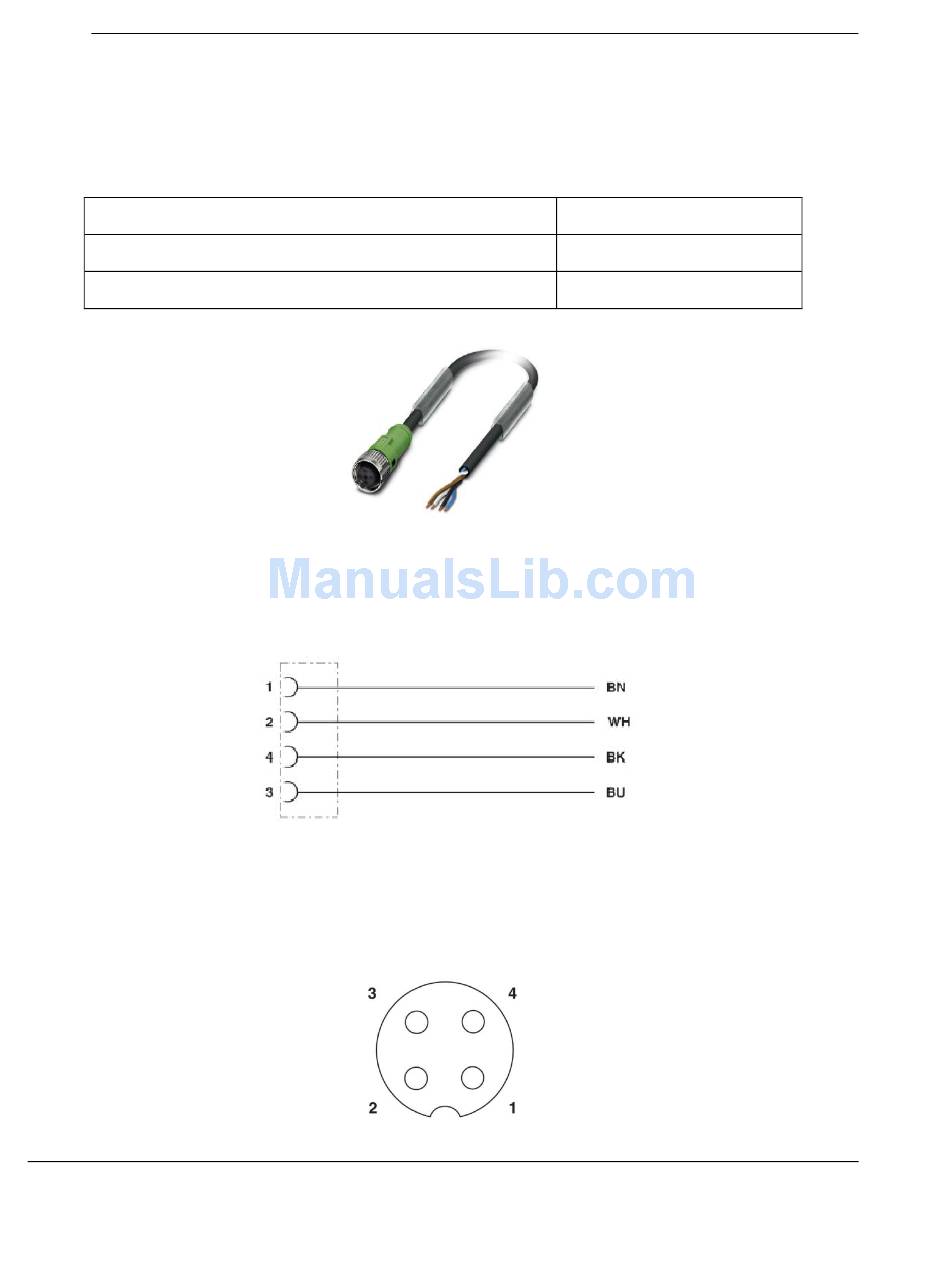

These cables are available for purchase from ProSoft Technology:
Description
Power Cable, 3m (7 ft), M12 to un-terminated leads
Power Cable, 10m (33 ft), M12 to un-terminated leads
The RLX2-IHNF-W and WC radios accept PoE configuration. However, the RLX2-IHNF
radio is equipped with a power M12 port (IEC 61076-2-101). The RLX2-IHNF-WC
Ethernet and PoE cable protrudes from the module. There is no M12 port.
BK (Black) and BU (Blue) wires are tied together and connect to "+".
BN (Brown) and WH (White) wires are tied together and connected to "-".
Pin Assignment M12 Socket, 4-pos, A-coded, View Female Side
Page 154 of 208
Contact Assignment of the M12 Socket
ProSoft Part Number
CULPWR-M12-010
CULPWR-M12-033
ProSoft Technology, Inc.
November 3, 2016
