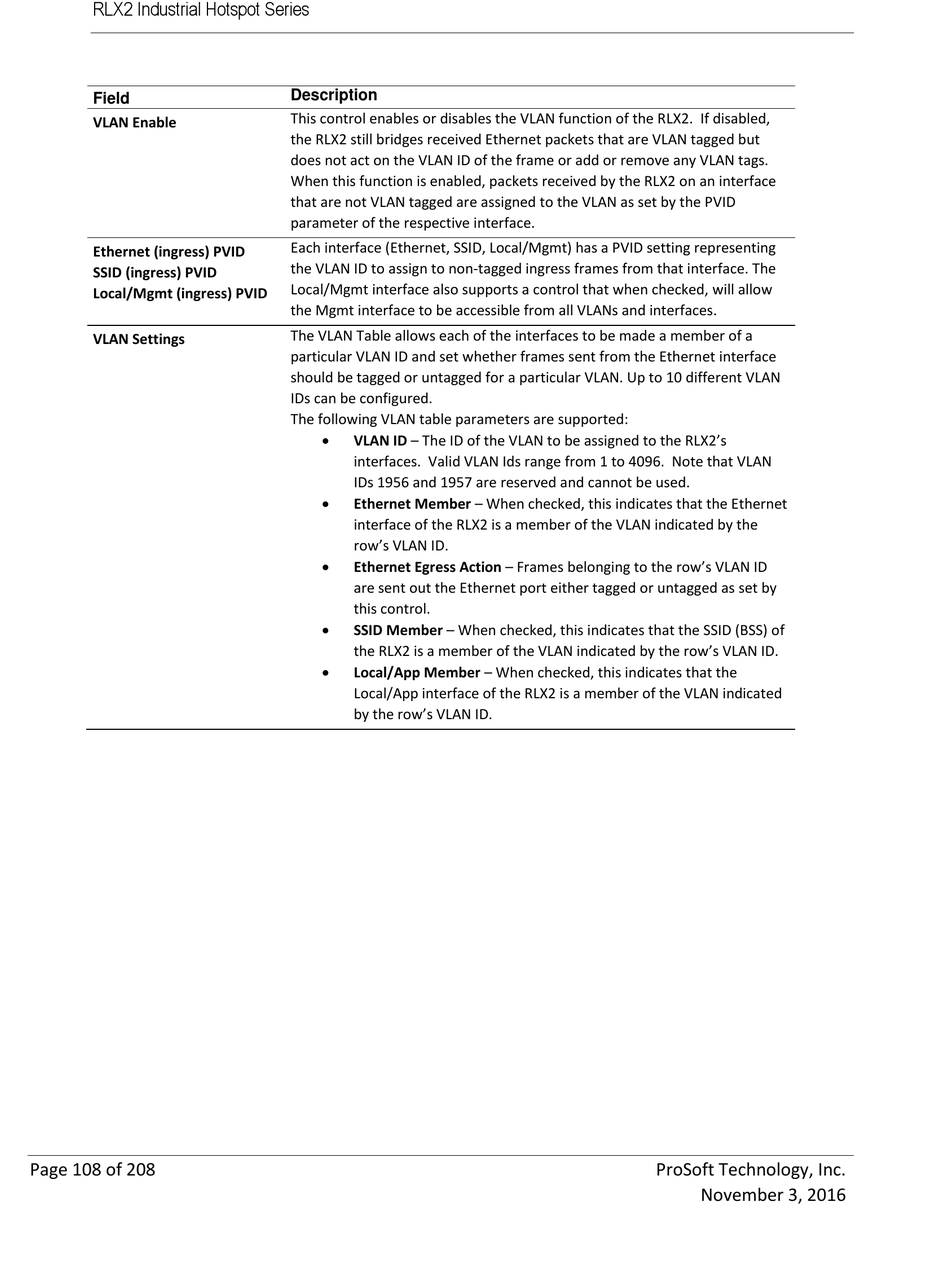

Field
VLAN Enable
Ethernet (ingress) PVID
SSID (ingress) PVID
Local/Mgmt (ingress) PVID
VLAN Settings
Page 108 of 208
Description
This control enables or disables the VLAN function of the RLX2. If disabled,
the RLX2 still bridges received Ethernet packets that are VLAN tagged but
does not act on the VLAN ID of the frame or add or remove any VLAN tags.
When this function is enabled, packets received by the RLX2 on an interface
that are not VLAN tagged are assigned to the VLAN as set by the PVID
parameter of the respective interface.
Each interface (Ethernet, SSID, Local/Mgmt) has a PVID setting representing
the VLAN ID to assign to non-tagged ingress frames from that interface. The
Local/Mgmt interface also supports a control that when checked, will allow
the Mgmt interface to be accessible from all VLANs and interfaces.
The VLAN Table allows each of the interfaces to be made a member of a
particular VLAN ID and set whether frames sent from the Ethernet interface
should be tagged or untagged for a particular VLAN. Up to 10 different VLAN
IDs can be configured.
The following VLAN table parameters are supported:

VLAN ID – The ID of the VLAN to be assigned to the RLX2's
interfaces. Valid VLAN Ids range from 1 to 4096. Note that VLAN
IDs 1956 and 1957 are reserved and cannot be used.

Ethernet Member – When checked, this indicates that the Ethernet
interface of the RLX2 is a member of the VLAN indicated by the
row's VLAN ID.

Ethernet Egress Action – Frames belonging to the row's VLAN ID
are sent out the Ethernet port either tagged or untagged as set by
this control.

SSID Member – When checked, this indicates that the SSID (BSS) of
the RLX2 is a member of the VLAN indicated by the row's VLAN ID.

Local/App Member – When checked, this indicates that the
Local/App interface of the RLX2 is a member of the VLAN indicated
by the row's VLAN ID.
