Installation Guide

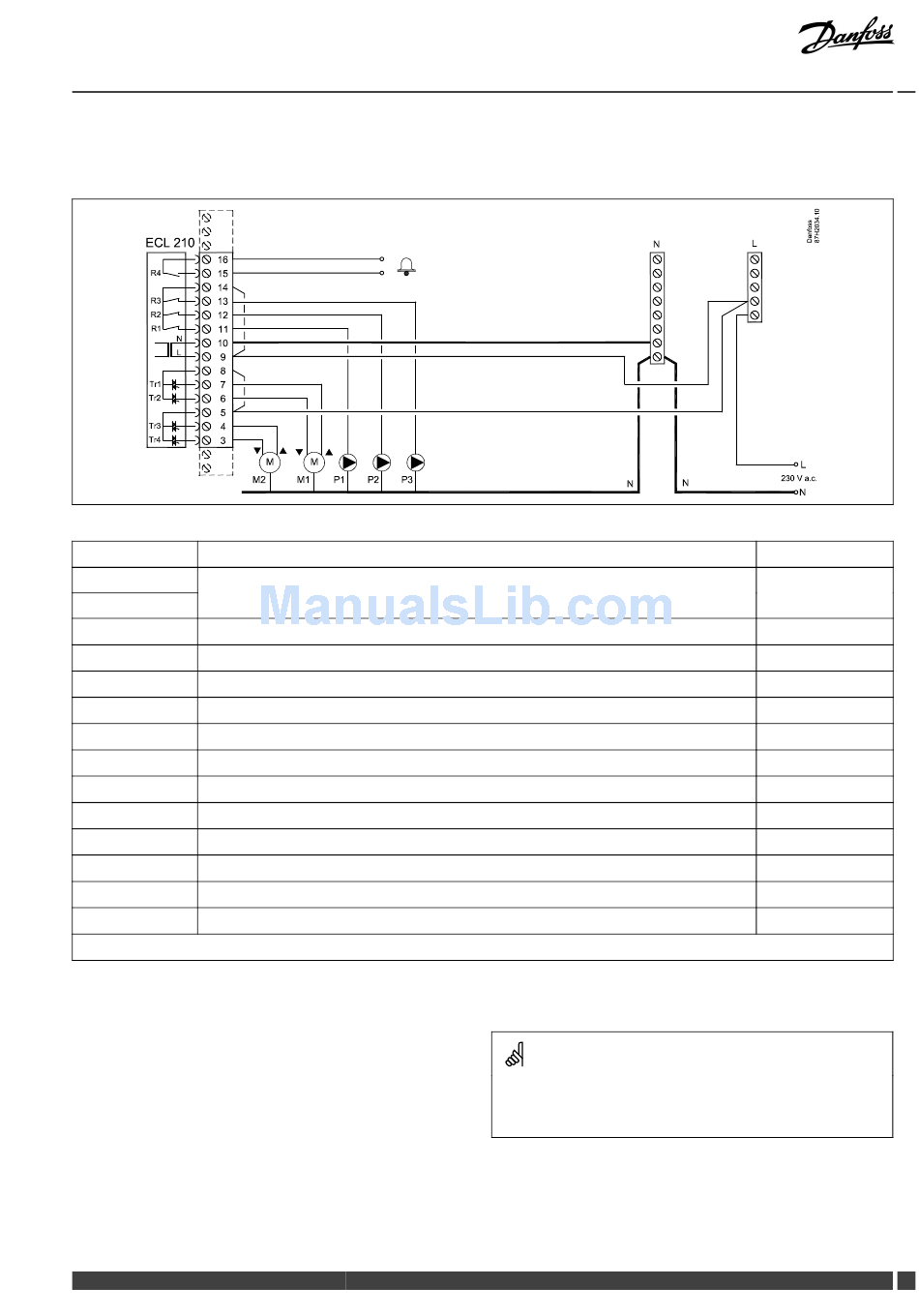

2.5.2 Electrical connections, 230 V a.c., power supply, pumps, motorized control valves etc.
Application A237.1
Terminal Description
16
Alarm
15
14
Phase for circulation pumps / changeover valve
13 P3
DHW circulation pump ON / OFF, circuit 2
12 P2 / M2
DHW heating pump ON / OFF, circuit 2 / changeover valve
11 P1
Heating circulation pump ON / OFF, circuit 1
10
Supply voltage 230 V a.c. - neutral (N)
9
Supply voltage 230 V a.c. - live (L)
8 M1 Phase for motorized control valve output, circuit 1
7 M1
Motorized control valve - opening
6 M1
Motorized control valve - closing
5 M2
Phase for motorized changeover valve output, circuit 2 (DHW)
4
M2 Motorized changeover valve, DHW circuit direction
3 M2 Motorized changeover valve, heating circuit direction
* Relay contacts: 4 A for ohmic load, 2 A for inductive load
Factory established jumpers:
5 to 8, 9 to 14, L to 5 and L to 9, N to 10
Danfoss District Energy
ECL Comfort 210 / 310, application A237 / A337
Wire cross section: 0.5 - 1.5 mm²
Incorrect connection can damage the electronic outputs.
Max. 2 x 1.5 mm² wires can be inserted into each screw terminal.
VI.LG.R1.02
Max. load
4 (2) A / 230 V a.c.*
4 (2) A / 230 V a.c.*
4 (2) A / 230 V a.c.*
4 (2) A / 230 V a.c.*
0.2 A / 230 V a.c.
0.2 A / 230 V a.c.
0.2 A / 230 V a.c.
0.2 A / 230 V a.c.
