4 . 3 . 2 D i a g n o s e
4 . 3 . 2 D i a g n o s e

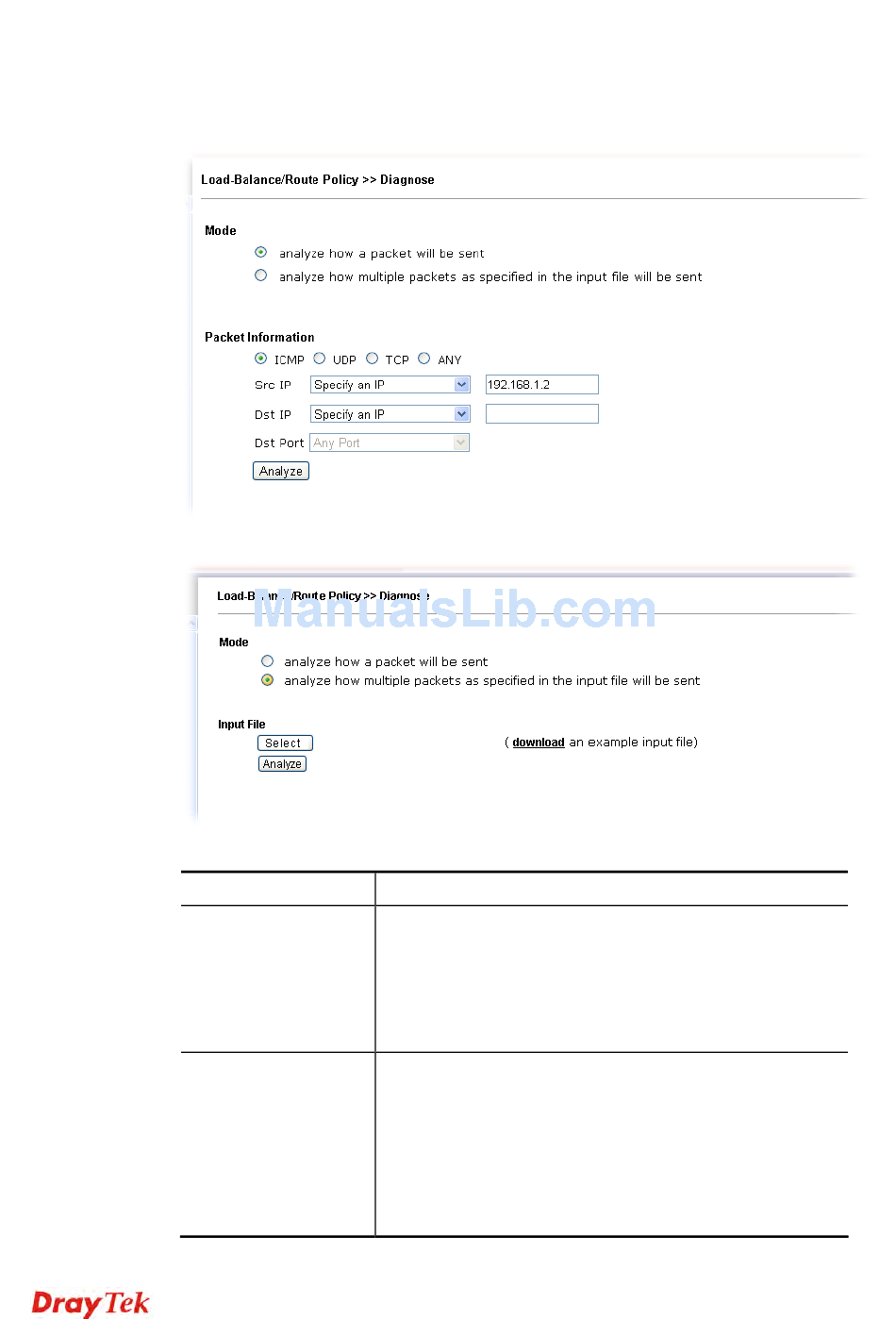

With the analysis done by such page, possible path (static route, routing table or policy
route) of the packets sent out of the router can be traced.
or
Available settings are explained as follows:
Item
Mode
Packet Information
Description
Analyze how a packet will be sent – Choose such mode to
make Vigor router analyze how a single packet will be sent
by a route policy.
Analyze how multiple packets... - Choose such mode to
make Vigor router analyze how multiple packets in a
specified file will be sent by a route policy.
Specify the nature of the packets to be analyzed by Vigor
router.
ICMP/UDP/TCP/ANY- Specify a protocol for diagnosis.
Src IP – Type an IP address as the source IP.
Dst IP – Type an IP address as the destination IP.
Dst Port – Use the drop down list to specify the destination
port.
179
Vigor2912 Series User's Guide
