  • Page 2 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. Trademarks The following trademarks are used in this document: Microsoft is a registered trademark of Microsoft Corp.

  • Page 3: Table Of Contents

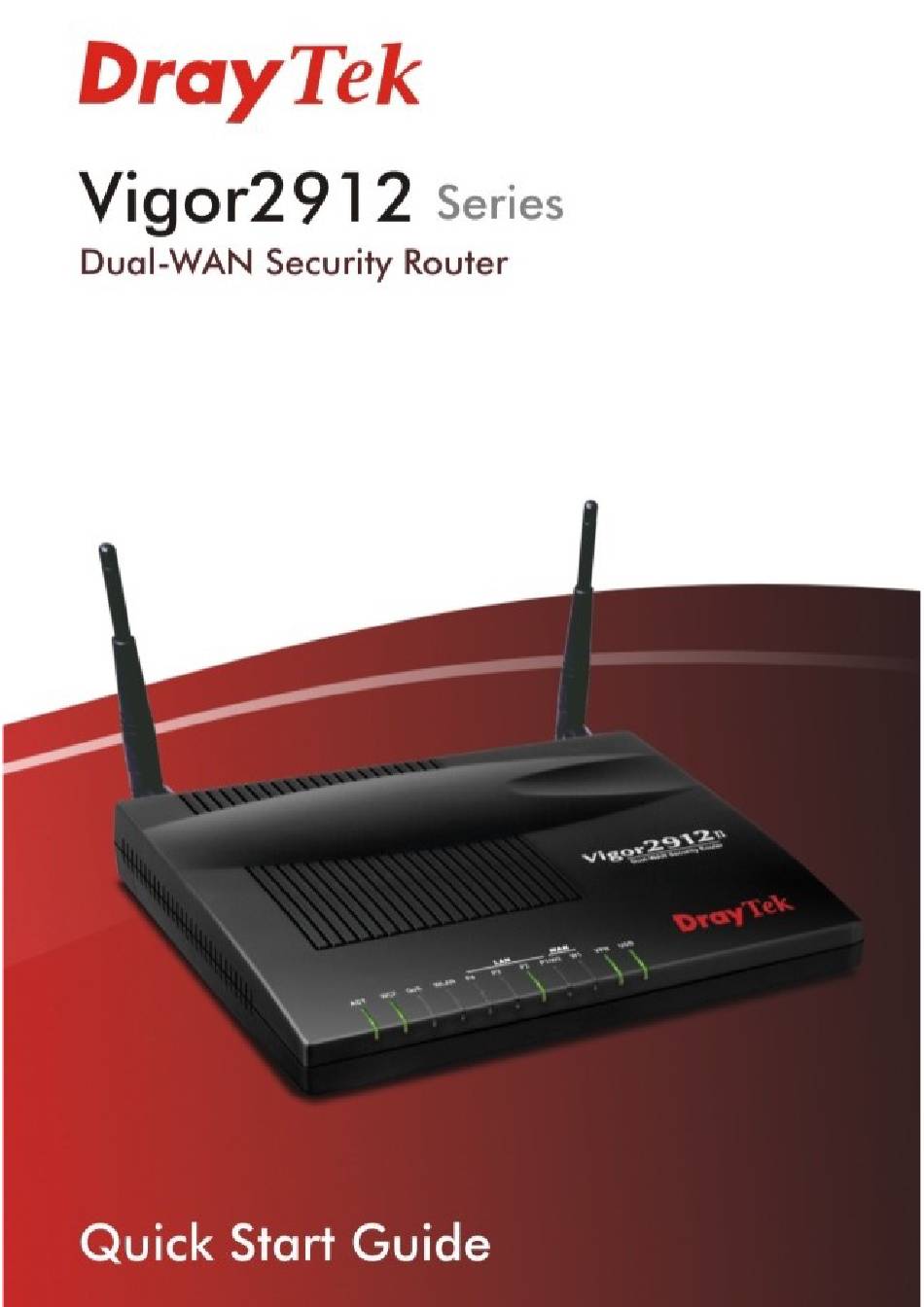

    Vigor2912 Series Dual-WAN Security Router Quick Start Guide t ....................1 n ....................2 n ................... 6 n ........................6 n ......................7 n ..................8 e ....................12...

  • Page 4: P A C K A G E C O N T E N T

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor router Quick Start Guide RJ-45 Ethernet Cable 2x antenna (“n” model) Power Adapter...

  • Page 5: P A N E L E X P L A N A T I O N

    Status Explanation ACT (Activity) Blinking The router is powered on and running normally. The router is powered off. The Web Content Filter is active. (It is enabled from Firewall >> General Setup). The Web Content Filter is inactive. The QoS function is active. The QoS function is inactive.
  • Page 6 Interface Description Connecter for a power adapter. ON/OFF Power Switch. Connecter for a USB device (for 3G/4G USB Modem or printer). W1~W2/P1 Connecter an ADSL or cable modem for accessing Internet (WAN). W2/P1~P4 Connecters for local network devices (LAN). Factory Reset Restore the default settings.
  • Page 7 Status Explanation ACT (Activity) Blinking The router is powered on and running normally. The router is powered off. The Web Content Filter is active. (It is enabled from Firewall >> General Setup). The Web Content Filter is inactive. The QoS function is active. The QoS function is inactive.
  • Page 8 Interface Description Connecter for a power adapter. ON/OFF Power Switch. Connecter for a USB device (for 3G/4G USB Modem or printer). W1~W2/P1 Connecter for local network devices or modem for accessing Internet (WAN). W2/P1~P4 Connecters for local network devices (LAN). Wireless LAN Press "Wireless LAN ON/OFF/WPS"...

  • Page 9: H A R D W A R E I N S T A L A T I O N

    This section will guide you to install the router through hardware connection. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45). Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the router and the other end of the cable (RJ-45) into the Ethernet port on your computer.

  • Page 10: W A L - M O U N T E D I N S T A L A T I O N

    Vigor router has keyhole type mounting slots on the underside. A template is provided on the Vigor router packaging box to enable you to space the screws correctly on the wall. Place the template on the wall and drill the holes according to the recommended instruction.

  • Page 11: S O F T W A R E C O N F I G U R A T I O N

    To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly.
  • Page 12 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Enter the login password on the field of New Password and retype it on the field of Confirm Password. Then click Next to continue.
  • Page 13 On the next page as shown below, please select the WAN interface that you use. Then click Next for next step. On the next page as shown below, please select the appropriate protocol according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface.
  • Page 14 PPPoE: If you click PPPoE as the protocol, after clicking Next, you will get the following web page. Please manually enter the Username/Password provided by your ISP. Then click Next. Static IP: if you click Static IP, you will get the following page. Please type in the IP address information originally provided by your ISP.

  • Page 15: C U S T O M E R S E R V I C E

    Afterward, you will enjoy surfing on the Internet. If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to support@draytek.com.

This manual is also suitable for:

Vigor 2912n
