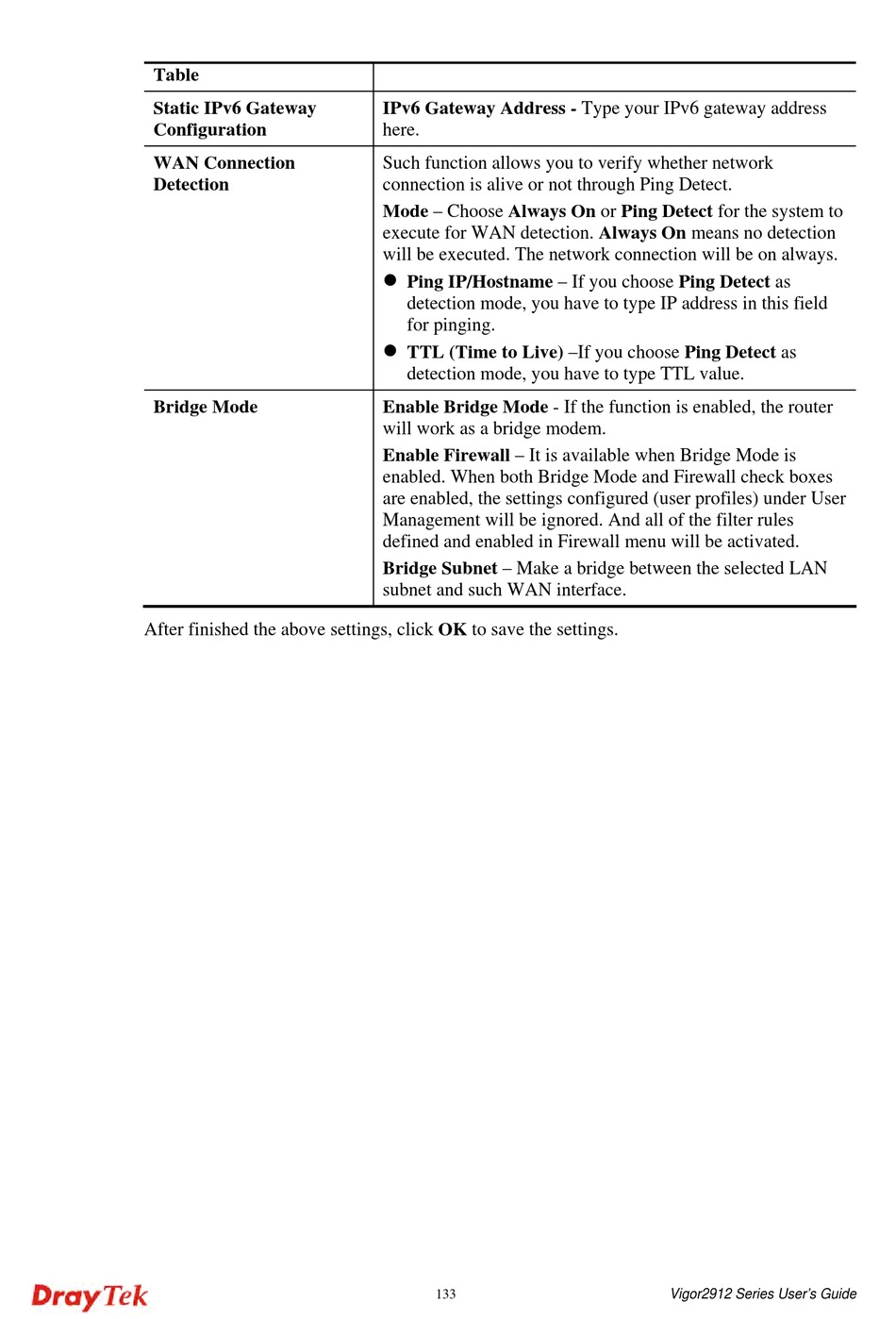

Draytek Vigor2912 User Manual page 143

Table
Static IPv6 Gateway
Configuration
WAN Connection
Detection
Bridge Mode
After finished the above settings, click OK to save the settings.
IPv6 Gateway Address - Type your IPv6 gateway address
here.
Such function allows you to verify whether network
connection is alive or not through Ping Detect.
Mode – Choose Always On or Ping Detect for the system to
execute for WAN detection. Always On means no detection
will be executed. The network connection will be on always.

Ping IP/Hostname – If you choose Ping Detect as
detection mode, you have to type IP address in this field
for pinging.

TTL (Time to Live) –If you choose Ping Detect as
detection mode, you have to type TTL value.
Enable Bridge Mode - If the function is enabled, the router
will work as a bridge modem.
Enable Firewall – It is available when Bridge Mode is
enabled. When both Bridge Mode and Firewall check boxes
are enabled, the settings configured (user profiles) under User
Management will be ignored. And all of the filter rules
defined and enabled in Firewall menu will be activated.
Bridge Subnet – Make a bridge between the selected LAN
subnet and such WAN interface.
133
Vigor2912 Series User's Guide
