(1) year from the date of purchase for all electrical parts and string clamps. Should any defects develop under normal use within the specified time periods, GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser’s expense.

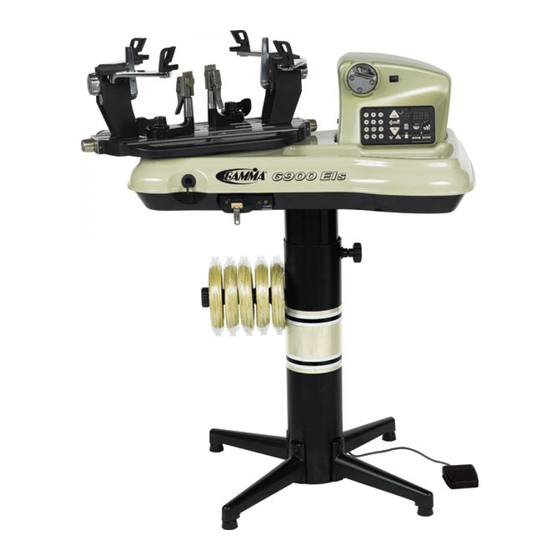

FEATURES MACHINE FEATURES Electronic Constant Pull Tensioner w/ 11.0 to 90.0 lbs Tension Range Digital Tension Setting w/ LED Display Professional Self-Centering Six Point “Suspension Mount” Rac- quet Mounting System- Accommodates All Racquets Parallel Jaw Rotating Gripper w/ Diamond Dust Coated Grip- ping Surfaces Professional “Quick Action”...
Please save the cartons and packing materials for possible shipments in the future. Gamma Sports cannot be responsible for machines that are not returned, shipped in their original, undamaged packaging.
Page 6
ASSEMBLY INSTRUCTIONS Floor Stand Assembly The stringing machine uses a four leg floor stand design. The legs must be assembled to the lower column before use. Remove all parts from the shipping carton to con- firm that contents match the list of parts on Page 5.
Page 7
ASSEMBLY INSTRUCTIONS Height Adjustment The height of the machine is adjustable from 39” to 46” in approximate 1” incre- ments. To change the height, remove the socket head cap screw from its current position and place it in the appropriate hole to set the desired height of the machine.
Page 8
ASSEMBLY INSTRUCTIONS Turntable and Mounting System Installation To install the turntable remove the four nuts holding the mounting bolts in place during shipment. Position the turntable over the turntable pin and align the bolts with the holes in the flange. Secure them with the included allen wrench.
Page 9
STRING REEL HOLDER INSTALLATION The string reel holder is an 8 mm rod with threads on both ends, and flat surfaces machined on one end. Thread the end of the rod without the flat surfaces into the threaded boss on the side of the lower column.
POWER CONNECTION & CONTROLS Front Panel Features A - String Gripper B - Tension Switch C - Control Panel Back Panel Features A - Lighted Power Switch B - Foot Pedal Switch Receptacle C - A/C Power Cord Socket D - String Length Meter Socket Instructions for Power Connection and Controls CAUTION ! Before connecting to the power supply, check the voltage source that the machine is being connected to.
Page 11
CONTROL PANEL FUNCTIONS AND FEATURES Three Digit (XX.X) Tension Setting Dis- Single Digit (1-9) play or String Length Memory LED Display LED Display Memory Button - Indexes from 9 pre- Tension Index Buttons - Changes set tension settings that can be stored tension setting in +/- 1.0 or +/- 0.1 Lb or in memory.
MOUNTING THE FRAME Mounting Stand Adjustment Position the racquet frame over the mount- ing stands and adjust the spacing between the stands so the posts of the frame support slides fit inside the head of the racquet. By turning one of the knobs located at either end of the turntable counter clockwise the stands move closer together.
MOUNTING THE FRAME Frame Support Slide Adjustment The Frame Support Slide need only be adjusted if the shoulder supports are blocking a grommet hole. Do not extend the Frame Support Slide beyond the machined line located on the Sup- port Slide. Apply a final adjustment to all racquet support points until the racquet is firmly secured in the mounting system.
Page 14
STRINGING THE FRAME Getting Started To begin stringing the main strings, thread the two ends of the string through the two center holes at the appropriate end of the frame and continue through the opposite center holes. Thread one end of the string through the adjacent grommet hole and pull excess by hand.
Page 15
STRINGING THE FRAME To apply tension to a string, push the tension switch or the foot pedal. The string gripper will rotate and slowly apply tension to the string. When the set tension has been attained, the gripper will stop rotating and the display will flash.
STRINGING THE FRAME Completing the String Job Once the final cross string is tensioned and clamped, tie off at the appropriate hole speci- fied by the racquet manufacturer. Remove the frame from the mounting system by loosening the shoulder supports and frame supports. ADDITIONAL FEATURES Turntable Brake The turntable may be locked in any position.
STRING LENGTH METER OPERATION To enable the String Length Meter (SLM) function, press the String Length button on the keypad. When the String Length but- ton is pressed, one of the LED indicators above “M” or “FT” will light up to indicate that the SLM function is enabled.
PATHFINDER AWL The machine includes the pathfinder string- ing awl which creates a pathway between or around strings to make inserting a string through blocked grommets easier and quicker. Insert the awl through the grommet hole in the same manner as for traditional awls. The Pathfinder awl must be in the closed position before insertion.
Most tension calibrators (such as a Gamma Tension Calibrator) function by clamping off the string attached to one the end of the calibrator and applying tension to the string located on the opposite end of the calibrator.
Page 20
MAINTENANCE & ADJUSTMENTS Clamp Base Locking Nut Adjustment In the event the Locking Lever rotation is insufficient to ensure smooth operation of the clamp base, very minor adjustments to the Clamp Base Locking Nut can be made with the supplied 17mm socket and a hex wrench as a lever.
TROUBLESHOOTING TIPS PROBLEM SOLUTION String slips in clamps - Adjust gap between clamp jaws - Clean clamp jaws String slips in gripper - Clean gripper jaws - Make sure string is wrapped over top gripper prior to inserting between gripper jaws String clamp base slips on turntable - Clean bottom of clamp &...
PARTS LIST PART # DESCRIPTION TOOLS & ACCESSORIES RUBBER FOOT* NEEDLE NOSE PLIERS* CAP SCREW- M8x30 BENT NOSE PLIERS* DIAGONAL CUTTERS* STAND BRAKE KNOB SHORT LEG 17MM SOCKET* FLAT HEAD SCREW- M8x25 SLM PADS* HEX WRENCH SET* LEVELING FOOT TT BOLTS* FOOT PEDAL SWITCH* STRING REEL HOLD BOLT A/C POWER CORD*...
